Hydraulic Forklift for Sale

FOB Price

US$ 6,500 - 7,300 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	YJF	Model Number	CPC(D)15FR
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	1500kg	Max. Lifting Height	4030mm
Min. Lifting Height	1995mm	Fork Length	920mm
Fork Width	100mm	Certification	CE
After-sales Service Provided	Overseas third-party support available

1.hydraulic forklift
2.popular counterweight
3.safe over-guard
4.dual air filter
5.CE certificate

hydraulic forklift for sale

1.popular counterweight

2.safe over-guard
3.dual air filter

4. powerful engine

5.high safety

hydraulic forklift parameters:

MODEL				CPC15FR	CPCD15FR
Load capacity				1500 kg
Load center				500 mm
Power type				Diesel
Max. lifting speeds(with load)				500 mm/s
Max. driving speeds(with/without load)				14.5-15 km/h
Max towering (with load)				14.4/8.4 kn
Grade ability(with load)				15/20%
Lifting height				3000 mm
Free lift				70 mm
Tilting angles(forward-backward)				6°/12°
Min. turning radius				2000 mm
Min. Right angle aisle width				1770 mm
Min. under-clearance				110 mm
Dimensions			Overall length(including fork)	3195 mm
			Overall width	1085 mm
			Overall height(mast lowered)	1995 mm
			Overall height(mast extended)	4030 mm
Overall height to overhead guard				2085 mm
Fork overhang				430 mm
Wheel base				1450 mm
Tread	Front tread			890 mm
	Rear tread			920 mm
Tire	Front tire			6.50-10-10
	Rear tire			5.00-8-10
Total weight				2650 kg
Fork width				100 mm
Fork thickness				35 mm
Backrest height				1000 mm
Fork length				920 mm
Engine		Engine model		485
		Rated power		30kw
		Rotate speed at rated power		2600 rpm
		Max. Torque		131 nm
		Rotate speed at max. Torque		1700 rpm
Type of power shift				Clutch	Tor-con
Packing details				5PCS/20’CNT	10PCS/40’CNT

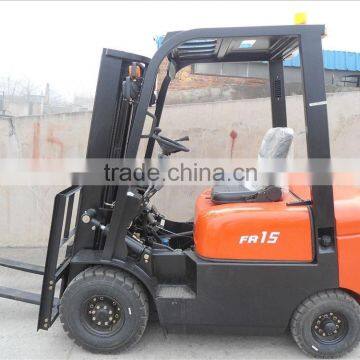

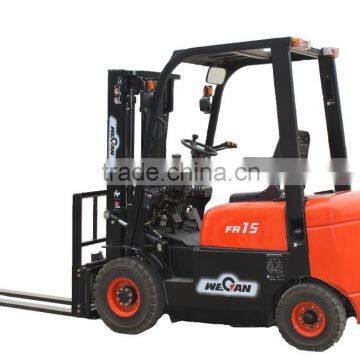

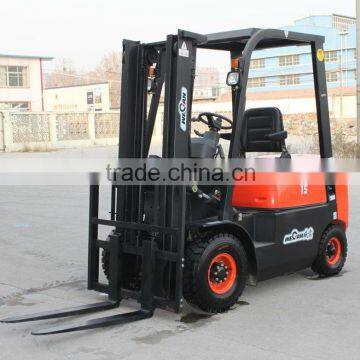

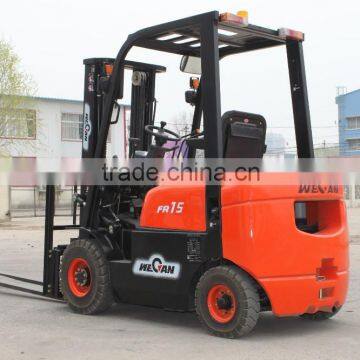

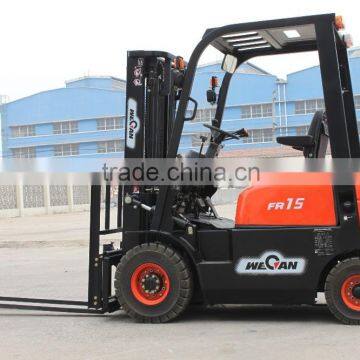

The detail of hydraulic forklift show:

Packaging & Shipping

The package of hydraulic forklift show:
