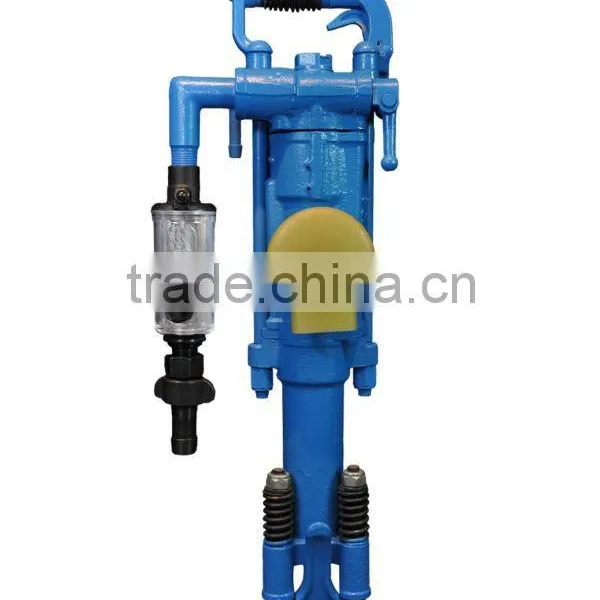

YT24 Rock Drilling Machine

YT24 Rock Drilling Machine thumbnail-1
YT24 Rock Drilling Machine photo-1
US$ 120 - 150 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SHEN LONG
Model Number:
YT24
Contact Supplier Request Quote Chat Now
Fuzhou Shen Long Rock Drill Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name SHEN LONG
Model Number YT24
Type Air Drill
Average Air Consumption 66.7 L/S
Maximum Torque 90
No-Load Speed 1200

Specifications

YT24 rock drilling machine
Advantage:
1. high efficiency rock drill
2. horizontal and downward drilling
3.hard rock drill



2012 Bauma Fair



Fair name: International trade fair for construction machinery, building material machines, construction vehicles and equipment



Company:FUZHOU SHENLONG ROCK DRILL FACTORY



Date:27th-30th,November



Booth No.: E4.728



Add: Shanghai New Internectional EXPO Center

YT24 rock drilling machineYT24 rock drilling machineYT24 rock drilling machineYT24 rock drilling machine







YT24 rock drilling machine



YT24 rock drill is a kind of high efficiency air leg rock drill.

It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
It can perform drilling under medium hard or hard rock(f=8-18) at any direction angles

specification:



Weight                                         ≈ 24 kg

Length                                         678mm

Cylinder dia                                  70mm

Pistonstroke                                   70mm

Air pressure                               0.40.63MPa

Impact frequencey                              ≥ 31Hz

Air consumption                                   ≤66.7 L/S

Air pipe (inner dia)                                19mm

Water pipe (inner dia)                               13mm

Bore dia                                       34-42mm

Shank dimensions(hex×length)            22×108 mm×mm

Model FY200B oil lubricator

Oil capacity                                        0.2L

Air leg              FT140B                       FT140BD

length               1687mm                      1400mm

Propulsion stroke        1250mm                      965mm

cylinder inner dia        60mm                        60mm

weight                ≈15.6kg                    ≈13.9 kg





Usage:



Drilling in quarry and coal or limeston  mine.

Blasting for railway construction

water conservancy construction and

defence project facility.



YT24 rock drilling machine
