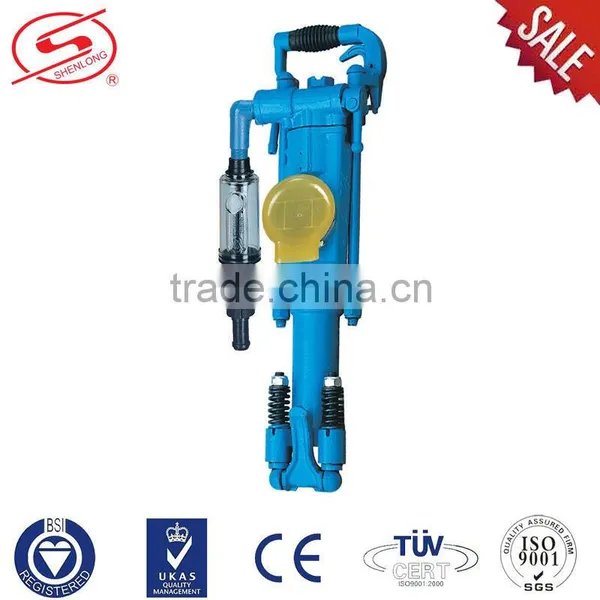

YT24 rock core drilling machine

Specifications

YT24 rock core drilling machine
1. Perfect Leg-Drill Balance
2. Uniform High Drill Speed
3. Comparable performance

item name:  YT24 rock core drilling machine



1. Stability

2. Adaptable to Long-Hole Drilling

3. Automatic Water-feed Device





products specifications
item name	YT24 YT24 rock core drilling machine
Weight	24kg
Overall dimensions	678mm
Stoke	70mm
Cylinder Dia	70 mm
Air pressure	0.4-0.63mpa
Water pressure	0.2-03mpa
Impact energy
Torque (at0.4MPa)
Impact frequency	>31Hz
Air consumption	66.7L/S
Drilling speed	250mm
Max drilling depth	>6m
Air pipe inside dia	19mm
Water pipe inside dia	13mm
Drill bit size	32-42mm
Drilll rod size	H22X108mm
FT140 Air leg
Weight	15.6kg
Length	1687mm
Push stroke	1250mm



YT24 rock core drilling machine  is a kind of high efficiency air leg rock drill machine.It is widely used for blasting holes and other drilling projects in a quarries, railway construction, water conservancy construction and defence project facility.

It is suitable for drill level or gradient holes in medium hard or hard rock(f=8-18).The drilling depth can be five meters. It can be matched with the FT140BD short air-leg or FT140B long air-leg to use in the basis of the width of rock.Also it can be fixed on drilling-vehicle or drilling-shelf.



To ensure the well lubricating.This rock drill may match FY200B oil reservior .
