Help CenterYT27 Rock Drill Air Structure
US$ 155 - 210
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
shenlong rock drill
Model Number:
YT27 rock drill machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
shenlong rock drill
Model Number
YT27 rock drill machine
Type
Other, Air Drill, Jack hammer rock drill
Average Air Consumption
<=83.3 L/S
Maximum Torque
56
No-Load Speed
150

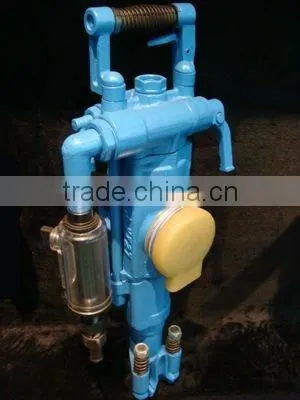

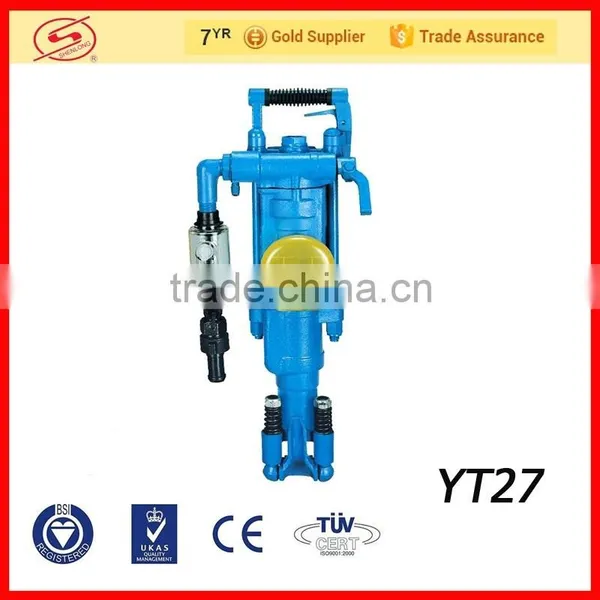

YT27 Air leg rock drill machine
The YT27 air leg rock drill is a kind of high efficiency air leg rock drill machinery.it is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
Drilling in quarry and coal or limeston mine.
Blasting for railway construction
water conservancy construction and
defence project facility.
| YT27 Air leg rock drill | ||
| Weight | 27 kg | |
| Outside dimension(L×W×H) | 668×248×202mm | |
| Cylinder dia | 80mm | |
| Piston stroke | 60mm | |
| Impact energy | ≥75.5J | |
| Impact frequencey | ≥ 36.9Hz | |
| Air consumption | ≤83.3L/S | |
| Air pipe (inner dia) | 25mm | |
| Water pipe (inner dia) | 13mm | |
| Air pressure | 0.63MPa | |
| Water pressure | 0.3MPa | |
| Bore dia | 34-45mm | |
| Bore depth | 5m | |
| Shank dimensions(hex×length) | 22×108±1mm/ 25×108±1mm | |
| Model FY250B oil lubricator | ||
| Weight | 1.2kg | |
| Oil capacity | 0.25L | |
| Air leg | FT160A | FT160B |
| Weight | 17kg | 16 kg |
| Llength:max | 3006mm | 2526mm |
| min | 1668mm | 1428mm |
| Propulsion stroke | 1338mm | 1098 mm |
