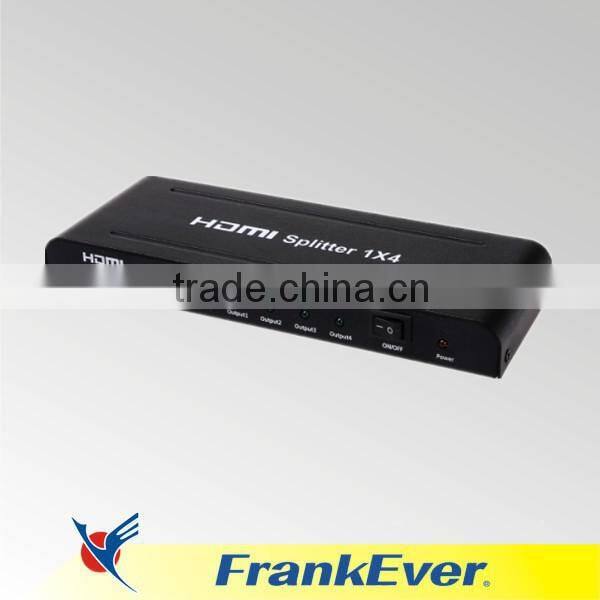

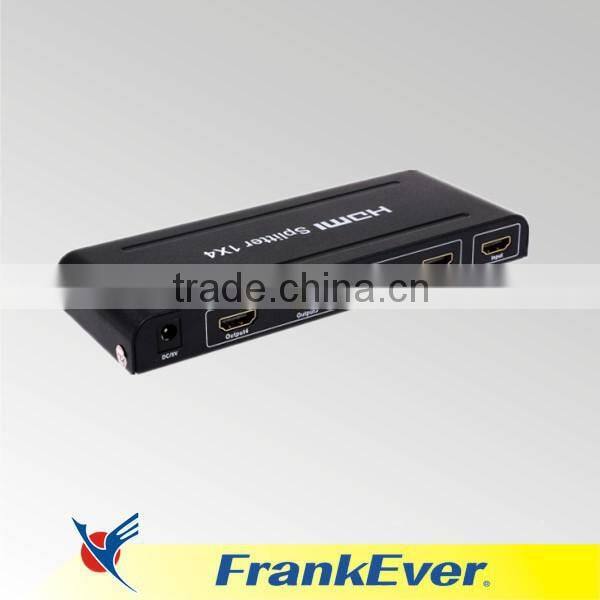

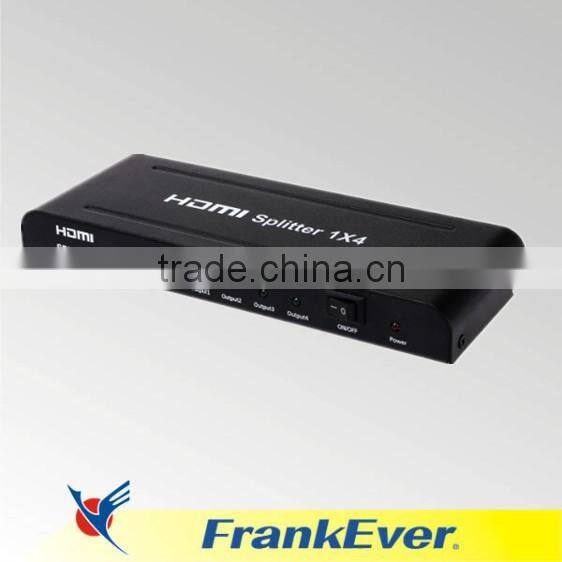

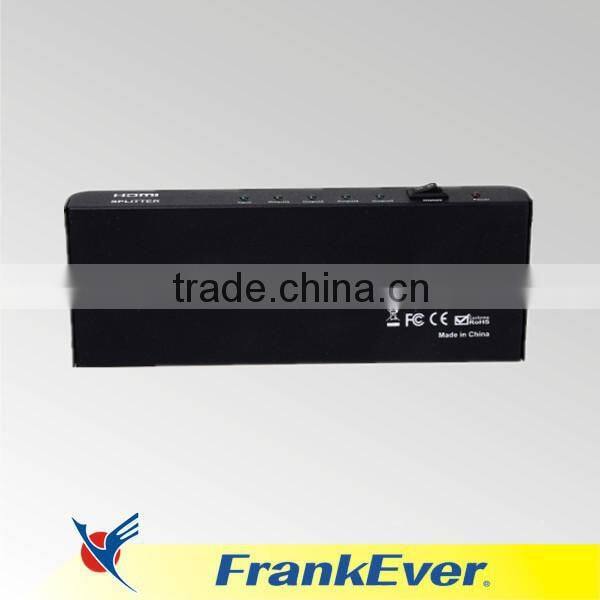

FRANKEVER MINI1x4 HDMI Splitter

FOB Price

Negotiable / Piece

1000 Pieces(Min. Order)

Port shanghai/ningbo
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	FRANKEVER		Model Number	FK-HDMI104
Place of Origin	Zhejiang, China

Product Description

Specifications

high quality 1x4 HDMI Splitter
1.One HDMI 1.3b input signal split to two HDMI 1.3b sink devices 2.HDCP1.2 protocol compliant

FRANKEVER MINI1x2 HDMI Splitter

Product Description

FEATURES

lOne HDMI 1.3b input signal split to two HDMI 1.3b sink devices

lHDCP 1.2 protocol compliant

lSupport CEC

lSupport deep color 30bit, 36bit

lSupport Blue-Ray 24/50/60fs/HD-DVD/xvYCC

lDigital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

lSupport signal retiming

lSupport input up to 15metres AWG26 HDMI 1.3 standard cable length,

output up to 25metres AWG26 cable length

lNo loss of quality

lInstalls in minutes

lNeed DC5V/1A power supply

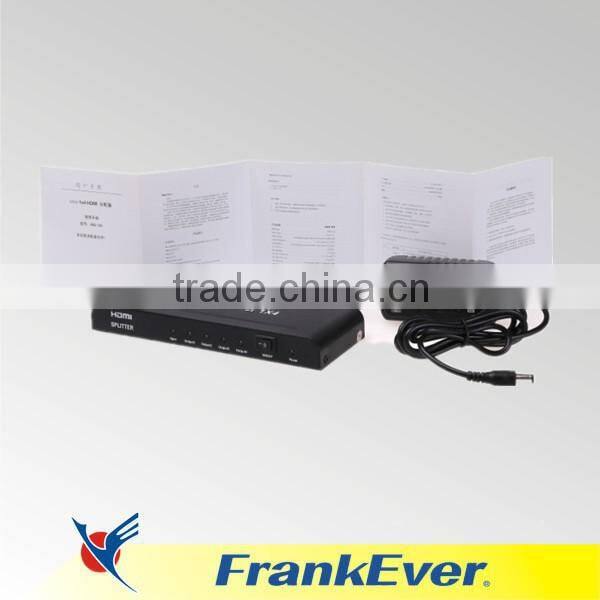

The accessories with the machines lists as picture:

1,5V Power Adaptor

2,one pc of Manual

Power Adaptor

Operating and Connecting:

Connect one cable from HDMI source devices into HDMI Splitter input.
Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
Connect 5V power supply to the Mini HDMI 1x4 Splitter.

SPECIFICATIONS: HDMI104

HDMI version…………………………………………….……………………………… HDMI 1.3b

HDCP version…………………………………………………………………………....HDCP1.2

HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth…………………………………………………………………………….225MHz

Max baud rate……………….…….………………….…………………………………..6.75Gbps

Input/Output TMDS signal ………….…………………………..…………0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... ……………………….……≤15m AWG26 HDMI 1.3 standard cable

Output cable distance…………………………….…...≤25m AWG26 HDMI 1.3 standard cable

Max working current……………………………………………………………………….....600mA

Power adapter format..Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….………………………179X67X21(mm)

Weight…..………………………………………………………..…….………………………260g

USD $1-$5000: EXW HangZhou

USD $5001-$15000: FC

Above USD $15000: FOB Shanghai/Ningbo

Certification:

Factory introduction:

FrankEver International
Located in Hangzhou,ZhejiangProvince, the most beautiful city inChina,

FRANKEVER INTERNATIONAL is enjoying its convenient traffic, excellent environment, and active economy.

FRANKEVER INTERNATIONAL is concentrating on electronic field, continuously offering qualified, advantaged, innovative electronic products.

It consists of four subsidiaries to serve the customers professionally. /

Main Foreign Market

Asia	8%
Europe	35%
Australia	6%
Africa	15%
North Amrica	22%
South Amrica	14%

Question & Answer

1. What is your MOQ?

Generally,we make mass production based on MOQ 500PCS, since our sub-supplier asked

500 MOQ for avoiding wasting materials. So if bulk package is ok for you, we can accpet lower order quantity.

2. How about your delivery date?

Normally our delivery date is about 25-30days after payment received.

3. Can you supply sample for custome

We can supply sample for customer's quality checking before placing new order to us, the delivery

cost will be charged on customer's account.

4. How about your price?

We will do our best to offer a good price for our customers, usually our price is worked out according

to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!
