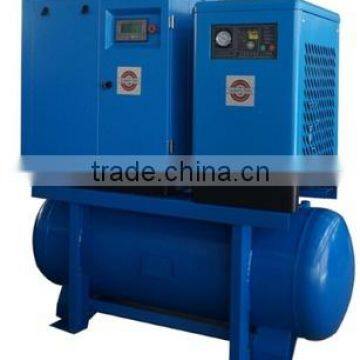

portable air compressor 15kw/20hp,2.25m3/min,79cfm with refrigerant air dryer
- The combined screw air compressor integrates the parts including screw compressor, freeze drier, line filters and air tank, making it convenient for the user to install, use and move.
- After the air pass the integrated system, the quality of the air is made largely better to satisfy process requirements of various companies.
- It is of beautiful appearance, stable performance and economy. It is one of the important series exported by our company.
Item | Description |
Model | SF-20AFF |
Air Flow capacity | 2.25m3/min |
Working pressure | 0.8 Mpa |
Motor Power | 15KW |
Connecting size | 1" |
Type of Cooling | air cooling |
pressure dew point | 2-10℃ |
Weight | 800KG |
Dimension | 1600*800*1580mm |
Volume of receiver | 0.35m3(350L) |
Voltage | AC 380V/50Hz/3ph |
Starting method | Y-Δ starting |
Noise | 72±5, tested according to the international GB/T4980-2003 standard |
Outlet air temperature | Ambient temperature + 15 °C |
Model of air dryer | SAD-2NF |
Model of precision filter | SF-002K |
| Model | Working pressure | Air flow | Power | Voltage | Dimensions(mm) | Weight | The volume of air tank | ||
| Mpa | m³/min | Kw | L | W | H | kg | m³ | ||
| SF-10AFF | 0.8 | 1.1 | 7.5 | 380V/3Ph/50Hz | 1600 | 750 | 1580 | 660 | 0.35 |
| SF-15AFF | 0.8 | 1.53 | 11 | 380V/3Ph/50Hz | 1600 | 800 | 1580 | 740 | 0.35 |
| SF-20AFF | 0.8 | 2.25 | 15 | 380V/3Ph/50Hz | 1600 | 800 | 1580 | 800 | 0.35 |
| SF-25AFF | 0.8 | 3.01 | 18.5 | 380V/3Ph/50Hz | 1900 | 1050 | 1980 | 910 | 0.5 |
| SF-30AFF | 0.8 | 3.5 | 22 | 380V/3Ph/50Hz | 1900 | 1050 | 1980 | 960 | 0.5 |
| SF-40AFF | 0.8 | 5 | 30 | 380V/3Ph/50Hz | 2100 | 1250 | 1980 | 1120 | 0.8 |
| SF-50AFF | 0.8 | 6.2 | 37 | 380V/3Ph/50Hz | 2100 | 1250 | 1980 | 1200 | 0.8 |
Shanghai Sunfilter Industry.Co.,Ltd.is a manufacturing company which is specialized in Air Compressor and compressed air drying and purification equipment who's research,manufactory,sales and service.
the leading product is Combined air compressor, Refrigerated Air Dryer ,Desiccant Air Dryer ,Compressed Air Filter. we have the CE certification and could provide the ASME code dryer for customer.
Sunfilter has been seeking excellence all the time . the company ushers in the Denmark France Japanese ect. Nations system cold and advanced technique,equipments and the original machine pieces,meanwhile taking the advanced designing concept and exquisite Production Process,following the ISO9001 quantity management system completely.
we have been improving quality by good management,seeking development by innovation ,casting the brand in good faith,expanding the market in a win-win situtaion,our products not only throughout the country,but also export to Australia ,South America ,South America, Southeast Asia, Middle East, Europe and more than 30 Countries.
Whether pre-sale,in sale,after-sale,as long as the user needs the help of equipment and technical advice,our company will provide the technical information within 24 hours for free, debugging boot on spot.Having finished the debug,our engineers are responsible for the operation training for the user's staff,receiving user equipment faiure notification.
1. Why compressed air purification?
Compressor alone is not enough.In most cases,untreated compressed air is naturally dirty,oily and wet.This condition is certainly notdesirable for industrial applications and could directly or indirectlylead to the following situations.
• Reduction in efficiency of expensive pneumatic tools & machineries
• Frequent costly maintenance of pneumatic tools & machineries
• Lost of production hours with increased machines down time
• High rejection rate of products
• Inability to meet delivery deadlines
• Unsatisfied customers
Hence compressed air needs to be purified or treated before they can be efficiently utilised.With theincreasing popularity of compressed air as an alternative source of utility for today’s modern production facilities,it is essential that you select the most suitable compressed air treatment systems for your plant and budget this relatively small investment into your operations to avoid daily problems with untreated compressed air which could eventually lead to expensive additional operating expensesand loss businesses.
2. Why choose Sunfilter compressed air purification?
We are professional compressed air purifing and drying system factory, founded in 2005.
There are more than 10 years of experience in OEM and ODM factory in Shanghai.
We could provide professional different scheme for different working conditions.
