High quality Low price Professional Manufacture KS20-800-420A 4...20mA current output Linear position sensor
Product Description
1.Principle
Linear position sensor measures linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.
2. Features
1> Beautiful appearance, waterproof grade at the highest level in IP68
2> Rugged construction, compact size, easy to install
3> Long service life, great precision
4> Economic cost, and cost savings for customers
5> CE
3.Technical parameter
Usage |
Position Sensor |
Model Number |
KS20-800-420A |
Output Type |
Analog |
Measuring range |
0-800mm |
Sensor Element |
Potentiometer |
Stainless Steel |
0.7mm , 0.8mm Plastic-coated |
Output |
4-20mA(Two-wire / Four-wire ) |
Translation Circute |
Built-in ,External ,External module |
|
Output zero and output full |
Adjustable |
Linearity |
±0.1%FS |
Repeatability |
0.01% |
Resolution |
Infinitesimal |
Max. Velocity |
1000mm/s |
Vibration Frequency |
50HZ |
Response Frequency |
2000HZ |
Power |
<1w |
Working Voltage |
10-30V(built-in),24V,28V(outlay) |
Staring Force |
4N |
Weight |
520g |
Working temp range |
-45℃~+125℃ |
Service Life |
>5 Mio;>10 Mio |
Anti-vibration |
10HZ-1500HZ; 10G |
Cable Length |
2M(standard) |
Housing Compent |
Titanium-anodised Aluminium, the coating is a hartanodic oxidation that protects the sensor from corrosion |
Protection Class |
IP54(Standard),IP65 |

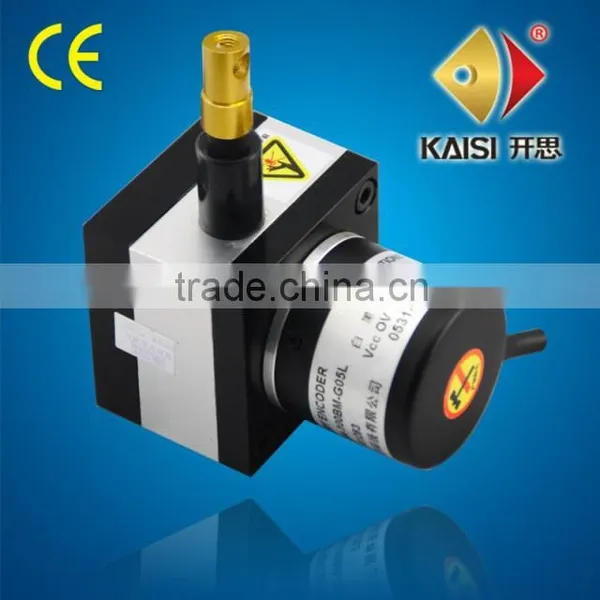

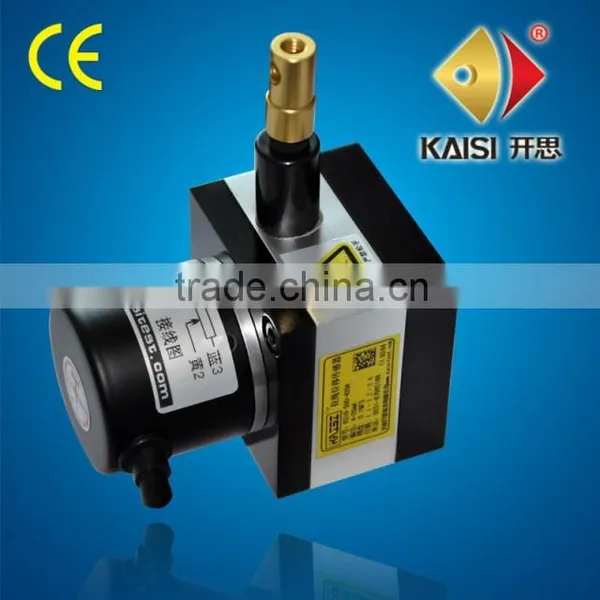

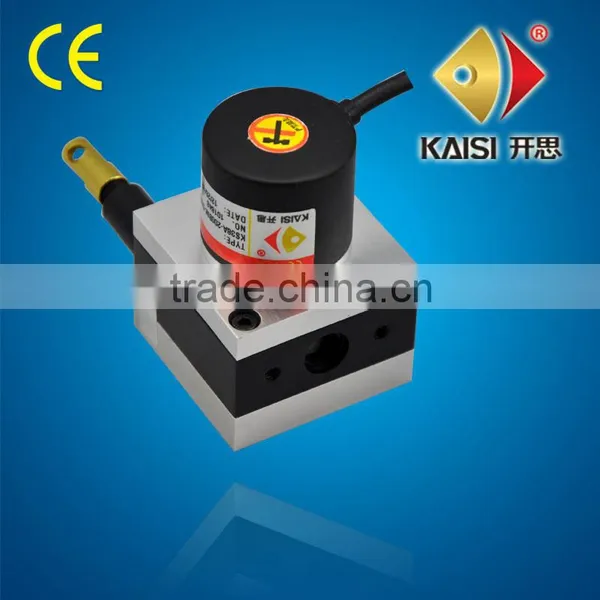

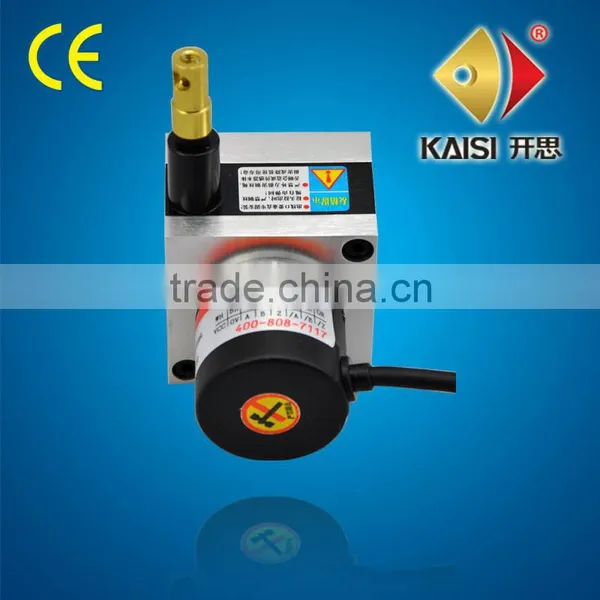

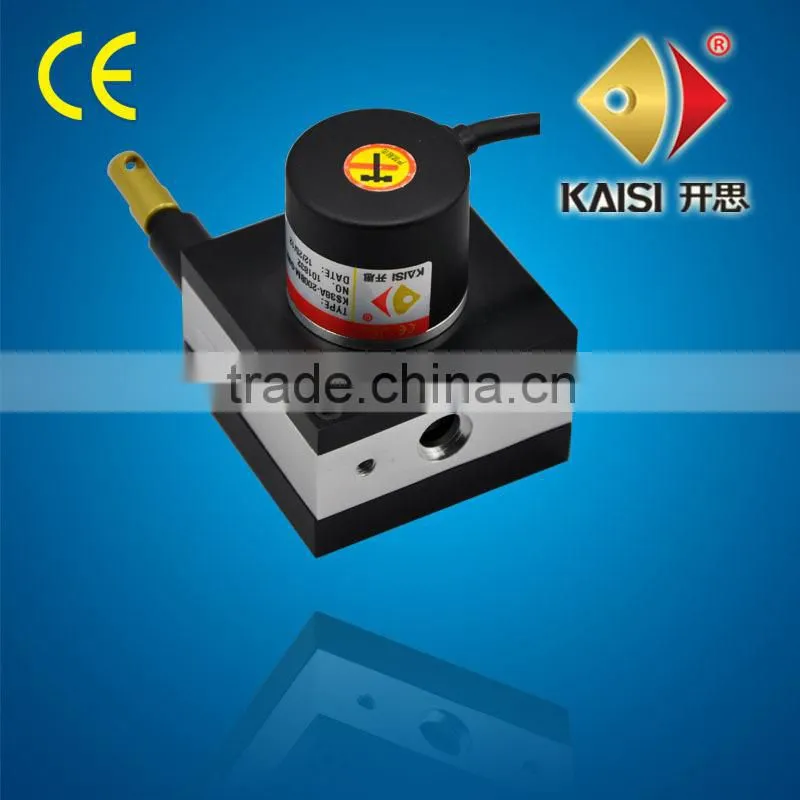

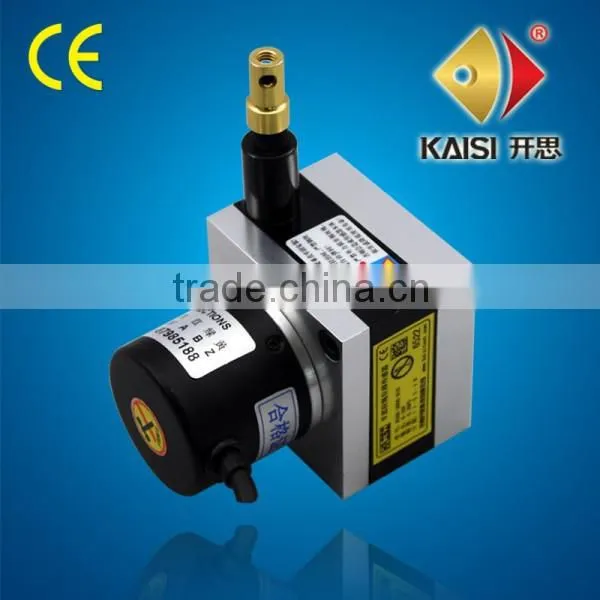

4.Protect Pictures

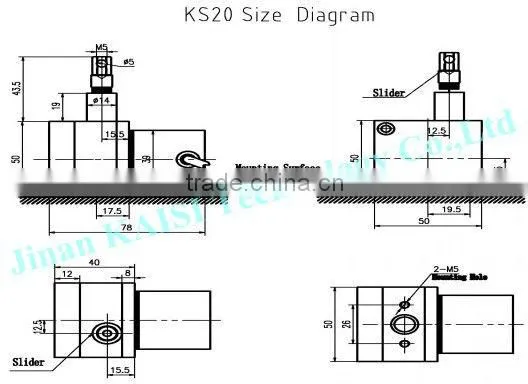

5.Installation Diagram
6.Product Model Selection Guid
7.Pull head details
High quality Low price Professional Manufacture KS20-800-420A 4...20mA current output Linear position sensor
Packaging & Shipping
1.Packaging:
1> Independent package in carton box, the size of the package is 20cm*15cm*12cm
2> Delivery Time: Delivery in 3-15days after payment.
3> We take great care in packaging every item to ensure safe shipment to you .
For any further question, please feel free to cantact us for checking the shipping cost and shipping way ,thank you !
2.Shipping: By sea, By Air, By express.
We accept ship your item by DHL, FEDEX, UPS, EMS(Express Mail Service), or other shipping way as your request.
High quality Low price Professional Manufacture KS20-800-420A 4...20mA current output Linear position sensor
Our Services
1.Warranty: All of the items have one year warranty, we could change a new one for if there is quality problems, but buyer need to pay for the freight.
2.Delivery time: We could prepare the products at once for customers' immediately purchase.
3. After-sale service: We offer technic support and lifelong after-sale services
Company Infortation
1.KAISI Information
KAISI is the leader producer of draw wire hydraulic sensor in China, KAISI is also a company procuces only draw wire hydraulic sensors for years sicnce 2007.
2.KAISI Certificate
With years of hard work, KAISI have got many certificates and patents.
3. KAISI Sales Network
High quality Low price Professional Manufacture KS20-800-420A 4...20mA current output Linear position sensor
Why you choose us?
1. We sell only best quality items, we give test before delivery.
2. We will send real photo before shipping, to avoid sending wrong parts to you.
3. We will choose the most economic way for sending the goods to you.
4. Items are shipped same or next day after payment is received.
5. We will answer your emails very quickly.
6. We work 24/7 including weekends and holidays.
7. We are always open for ideas and are ready to help you.
8. If you can't find what you are looking for, please send us a picture or other information, we will try to find it for you.
FAQ
1. What is your Payment term?
---TT, Western Union, Paypal, Escrow is could be accept.
2.What is your Trade term?
---FOB, CNF, CIF is also ok.
3.What is the Loading Port?
--- Shanghai, Qingdao.
----------------------------------------------------------------------------------------------------------------------
Jinan KAISI Technology Co.,Ltd
Contact : Linda Wang
Tel: +86-18663709680
Fax: +86-0531-87985177
Email: kaisi109 @163.com
Skype: linda-kaisi
Address: Rome1601 ,LvDiBinFen Building , QiZhou Road , HuaiYin District , Jinan ,China .
--------------------------------------------------------------------------------------------------------------------------
