linear encoder-KS90 Series
1. Principle
linear encoder measures linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.
2. Features
1. compact size, rugged construction, easy to install
2. economic cost, and cost savings for customers
3. number of pulses: 400, 600, 1000,2000,2500,5000,10000 pulse
4. he cylinders, testing machines and other industry has achieved large-scale applicatIons, reliability
3. Technical parameter
Output type |
Digital |
Effective stroke |
0-5000mm |
Sensor element |
Encoder |
Stainless steel |
0.7mm,1.0mm, Plastic-coated |
Output |
OC(NPN) |
Push-pull | |
TTL | |
SSI | |
Translation circuit |
No |
Output zero and output full |
No |
Linear accuracy |
±0.05%FS |
Repeatability |
0.01% |
Resolution(mm) |
0.75, 0.5, 0.3, 0.15, 0.12,0.6,0.03 |
Max. Velocity |
2000mm/S |
Vibration frequency |
50HZ |
Response frequency |
300K Hz |
Power |
Due to output |
Working voltage |
5V 5-24V |
Starting force |
4N |
Weight |
1440g |
Working temp range |
-25°C ~ +85°C |
Service life |
>10 Million times |
Anti- vibration |
10HZ-1500HZ; 10G |
Cable length |
4M (standard) |
|
Housing material
|
Imported aluminum alloy, oxidation surface treating, wear and corrosion prevention. |
Protection Class |
IP54(Standard), IP65 |

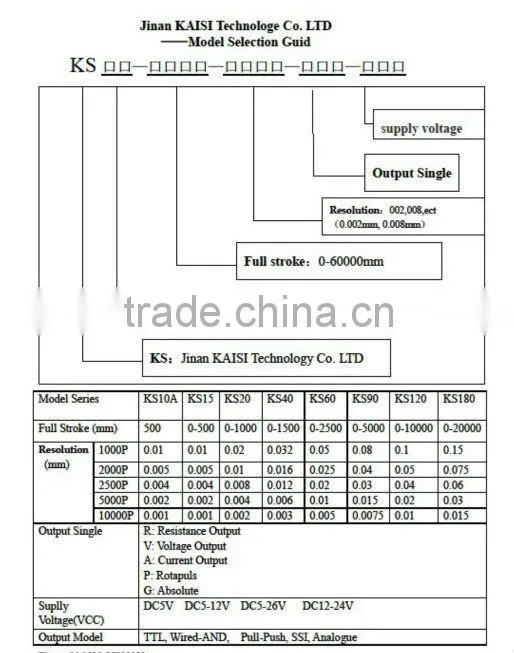

4. Mode specification:
Model |
Stroke |
Resolution (mm/p) |
power configuration |
Operating voltage |
||
KS90-5000-75-NPN-5-24 |
0-5000mm |
0.75 |
NPN |
DC5-24V |
||
KS90-5000-75-NPN-12-24 |
0-5000mm |
0.75 |
NPN |
DC12-24V |
||
KS90-5000-75-F-5-24 |
0-5000mm |
0.75 |
Push-pull |
DC5-24V |
||
KS90-5000-75-F-12-24 |
0-5000mm |
0.75 |
Push-pull |
DC12-24V |
||
KS90-5000-75-L-5 |
0-5000mm |
0.75 |
L-line drive |
DC5v |
||
KS90---75---- |
customized |
0.75 |
customized |
customized |
||
Comment: NPN=NPN, F=Push-pull, L=L-line driver.
Customize: If the effective stroke you need is not 5000mm, but is in the range of Series KS90 digital output (0-5000mm), KAISI will produce your custom stroke and other special parameters

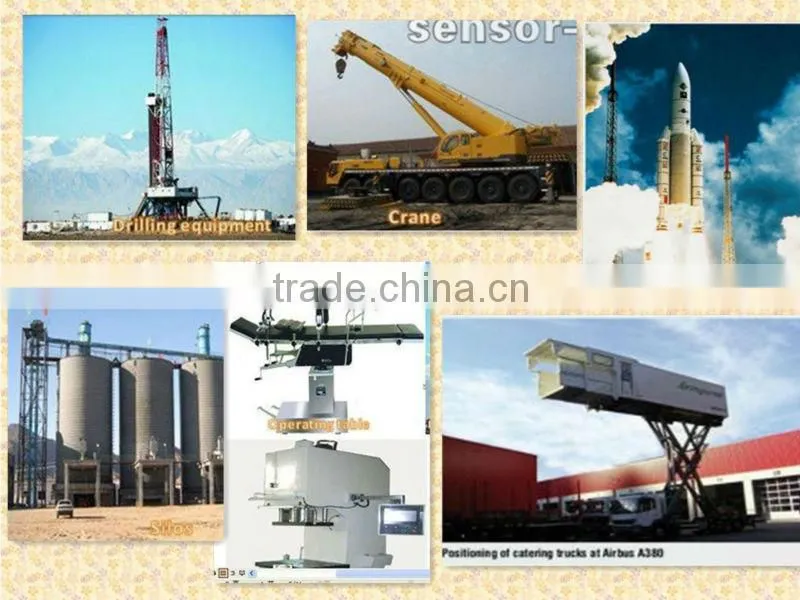

5. Application
Simple and fast Installation, high accuracy, good repeatability. It can be widely used in automation field, automatic measurement, automatic control, remote control and so on. It is applied in dimensional measurement and position control of linear guide systems, hydraulic cylinder system, the testing machine, printing machinery, level control instrument, and construction machinery. It is especially suitable for the control of the electro-hydraulic servo and hydraulic universal testing machine. It can completely replace the grating. It can be customized for other applications.
6. Potent Certificate and CE
