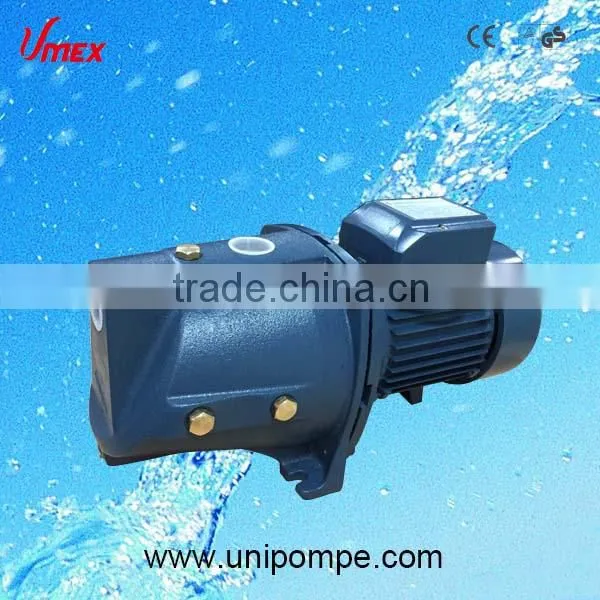

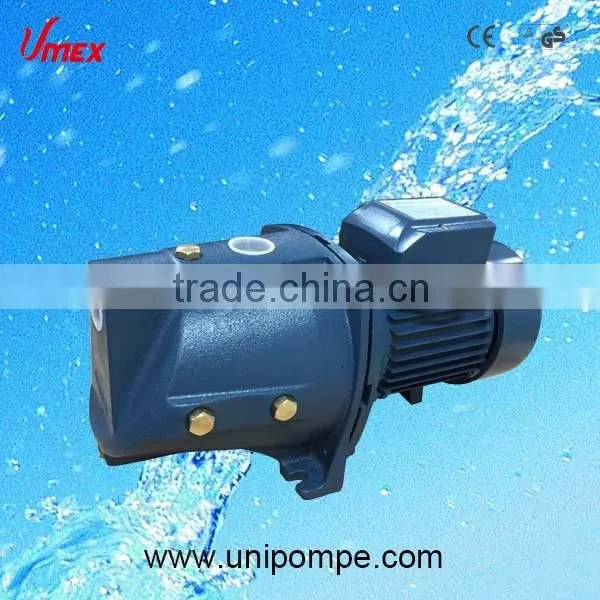

2016 Hot-sale self-priming jet pump JET-10H
RANGE OF PERFORMANCE
1.Flow rate up to 80 l/min (4.8 m3/h)
2.Head up to 70m
LIMITS OF USE
1.Manometric suction lift up to 9m
2.Liquid temperature up to +60°C
3.Environment temperature up to +40°C
INSTALLATION AND USE
These pumps are suitable for handling clean water without abrasive particles and liquids that are chemically non-aggressive to the pump components. Reliable, economical and simple to use, they are suitable for domestic use and in particular for distributing water in combination with small pressure sets, for irrigating gardens. The pumps must be installed in a covered area, protected against the inclement weather.
MOTOR
1.Two –pole induction motor (n=2850rpm)
2.Insulation Class B/F
3.Protection grade IP44
MATERIALS
1.Pump body:Cast iron
2.Motor support: Cast iron
3.Motor housing: Aluminum
4.Impeller: Brass/Stainless steel/PPO
5.Shaft with rotor: Carbon steel or stainless steel
6.Mechanical seal: Ceramic/ Graphite
7.Bearing: NSK, C&U, or local quality.
Technical Parameters
WARRANTY: 1 YEAR (according to our general sales conditions)
Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.
Production Process Scheme:
