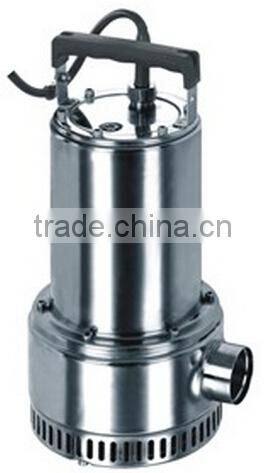

small stainless steel pump submersible pump price
Specifications
stainless steel pump submersible pump price
1, Power cable: standard cord is 10m
2, Motor: class F insulation, IP68 protection
3, Single Phase: Built-in thermal protector
4, Accessories: Float switch is available
Materials
Pump casing: SS304
Motor body: SS304
Impeller: stainless steel open type
Mechanical seal: Stainless steel (graphite to ceramic or SiC to graphite)
Shaft: SS420
Bearing:NSK/C&U/China
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 2mm
8 Protection:IP68
General Characteristics
Using Single (three) phase power source, it's complete stainless steel structure, rust free and anti corrosion. The vortex type or double-vane impeller features powerful sewage disposal capability. The maximum solid diameter of passage up to 40mm on request. It can be be made of standard AISI SS 304 for commom acid or alcali ( PH value 4-10) or 316L for sea water or chemical industry ( PH value 0-12).
Performance Chart
Techanical Parameters:
Certificates
