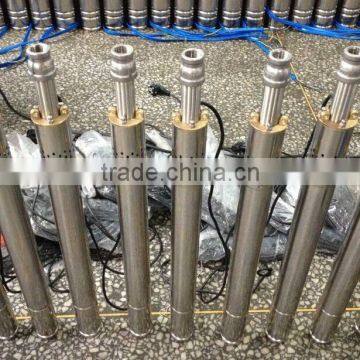

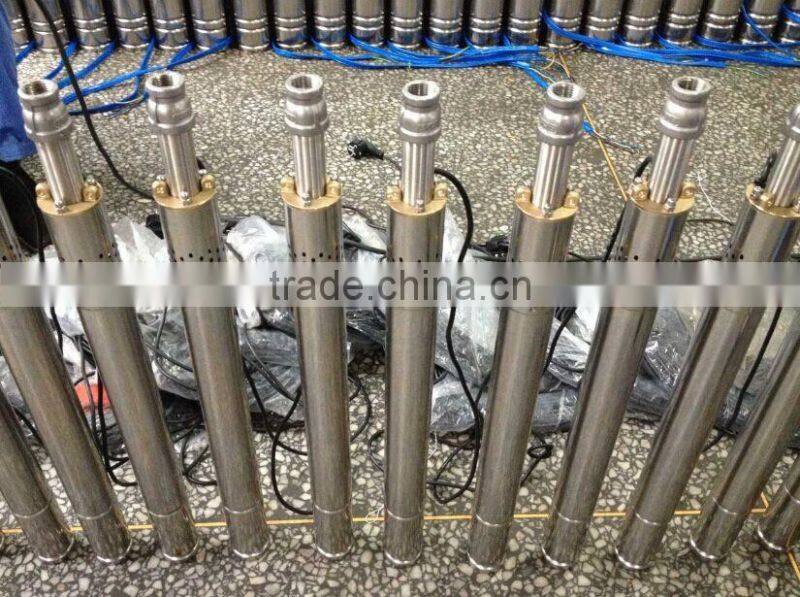

Deep well Submersible Pump 2 inch diameter with oil-filled motor
MAIN FEATURES
1.Single screw instead of impellers
2.oil-filled motor
3.Sandproof device
4.High head and efficiency
5, Built-in capacitor
TECHNICAL DATA
-Pump
1.Qmax: 1.0 (m3/h)
2.Total head from 70 (m)
3. Outlet: 0.5 (inch)
-MOTOR
1.Power: 0.25 kw (1 phase)
2.Insulation class : F
3.Protection grade: IP 68
4.Highest temperature of liquid : 40 °C
5.International standard: IEC 60335-1 IEC 60335-2-41.
-Application
1.For water supply from wells or reservoirs.
2.For domestic use,for civil and industrial applications.
3.For sprimking and flow irrigation plants.
-Operating conditions
1.Water temperature up to 35 Cent.Degree.
2.Maximum sand content: 0.25%
3.Minimum international diameter of well: 2''.
4.Maximum immersion depth: 60m.
-Materials
1.Pump casing: AISI304 stainless steel
2.Inlet/Outlet:Stainless Steel
3.Screw: Steel
4.Bottom support: Stainless Steel
5.Shaft :AISI 304 stainless steel.
6.Motor casing: AISI 304 stainless steel.
7.Mechanical seal: Graphite- Ceramic
Performance table: (n=2900 rpm)
| Model | Motor Power | Voltage/Frequency | Speed | Outlet | Qmax. | Hmax. |
| 2 QGD0.5-30-0.25 | 0.25Kw/ 0.33Hp | 220V/50Hz | 2850rpm | 0.5'' | 1 m3/h | 70m |
