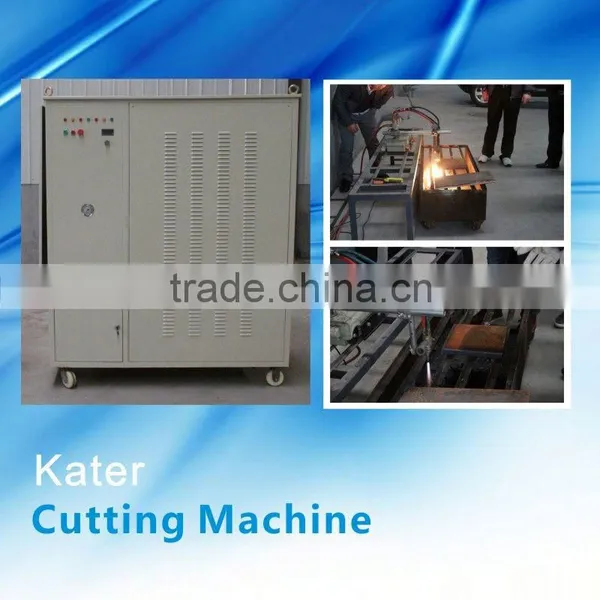

oxyhydrogen cutting machine

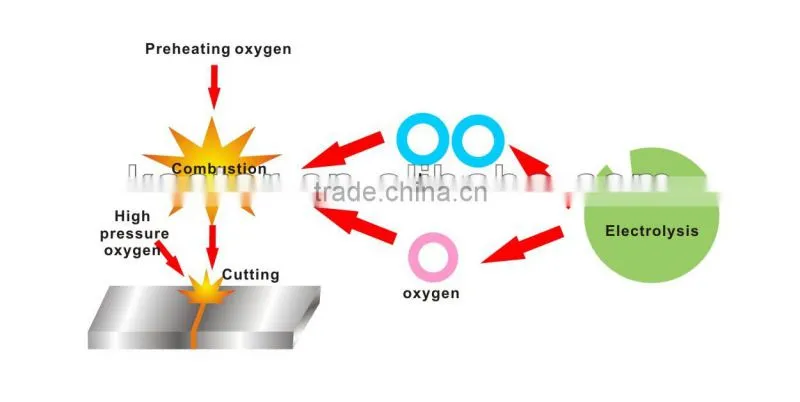

The machine consumes water and electricity
,electrolyze water into hydrogen gas and oxygen gas,we can use H2 and O2 as source of flame.this flame we named oxhydrogen flame,which is a high temperature energy source,can be used for cutting.Also can burst with other fuel together for heating.
Features
1. Neutral flame,Carbonizing flame,Oxidizing flame from soup to nuts.ffully meet customer requirements for the use of fire.
2. The cut surface smooth level off,No hang slag nodular..
3. Narrow kerf width, material saving,small heat affected zone,small deformation.
4. Work without tempering,ensure the operation safety.
5. Reduce pollution emissions,better for the environment.
6. Economic benefit is remarkable,when cut the same amount of steel it can
reduce spending for 40% than propane,reduce spending for 60% than acetylene.
|
Oxy-hydrogen Cutting 2H2+O2 2H2O |
it just formed water vapor in the cutting process,no any carbon emissions |
|
Acetylene cutting 2C2H2+5O2 4CO2+2H2O |
there is carbon dioxide emissions |
|
Oxygen-propane cutting C3H8+5O2 3CO2+4H2O |
there is carbon dioxide emissions |
Our products are strictly tested before delivery,and approved by CE.
DATA
Items Specifications |
Kater-7000 |
Supply Voltage |
Three-phase 380V (50-60) HZ±10% |
Rated Capacity |
22 KVA |
Working current |
350A |
Work Pressure |
≤0.2Mpa |
Relative Humidity |
≤90% |
Rated gas production |
7000±10% L/H |
Water Consumption |
3.8L/H |
Maximum cutting thickness |
300mm |
Flame Temperature |
800~3200°C adjustable |
Power Supply Protection Grade |
IP21S |
Insulation Protection Grade |
F |
Appearance Size |
750*560*H800MM |
Weight |
560KG |
Working Medium |
Filtered water or deionized water |
Cooling way |
Air cooling |
Effective perforation thickness |
90mm |
Working way |
Continuous |
Environment temperature |
0~40°C |
