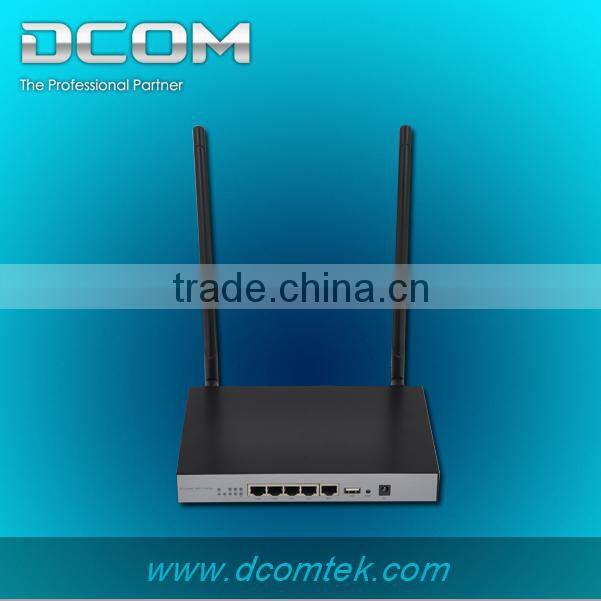

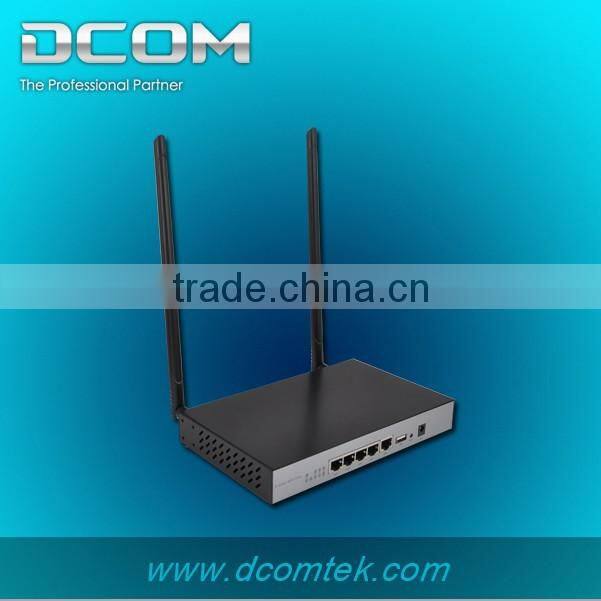

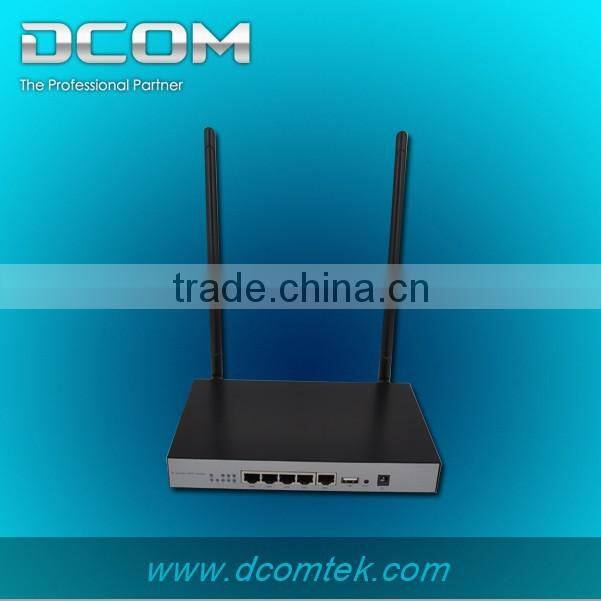

7620A desktop 11ac wireless router

Main Chipset

MT7620A+MT7610E

RAM

DDR2 128MB (MAX DDR2 256MB)

 SPI FLASH

16MB  (MAX16MB)

Protocol

IEEE 802.11n,IEEE 802.11g,IEEE 802.11b;IEEE802.11ac
IEEE 802.3,IEEE 802.3u

RT Power

802.11g   27dBm±2dBm;

802.11n   27dBm±2dBm;

802.11ac   12dBm±2dBm;

Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -63dBm@10% PER

802.11ac: -58dBm@10% PER

Work Channel

2.4GHz choose:1-13

5GHz choose:149,153,157,161,165

Wireless Rate

Max 750Mbps

Work Frequency

2.4GHz,5.8GHz

Antenna

2*detachable 5dBi antenna

Interface

1xUSB 2.0 interface

1x10/100M WAN Port(Auto MDI/MDIX)
4x10/100M LAN Port,Auto MDI/MDIX)

LED

Power,WPS,2.4G,5G,WAN,LAN1,LAN2,LAN3,LAN4

Button

WPS

Reset

Max Power Consumption

5W

Dimension(L*W*H)

217*135*31.7MM

Software

WAN Type

PPPoE,DynamicIP,Static IP

Work Mode

AP;

Router;

DHCP

Server, Client, DHCP Client List, Address Reservation

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding

DDNS

Support

VPN Pass-Through

PPTP, L2TP, IPSec (ESP Head)

Band Ctrl

Support

Static Router

Support

System Log

Support

Other Function

Mac clone
NTP Synchronize
Web software update

other

Work Environments

Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing

Adapter

12V 1A
