Solar water heater patrs P/T Security Valve
1. Using Method of P/T Security Valve
Temperature and Pressure Relief Valves is suitable for bearing the pressing type solar water heater,
gas heater,electric heater,water heater of fuel,water heater of heat pump,sensitive function heater,etc.Various kinds of heaters(such as the boiler) and hot water containers.
2. Specification of P/T Security Valve
- Standard setting:75,87,100,125,150psi(0.51/0.60/0.69/0.86/1.034Mpa)
- Temperature relief:210 °F(99° °C)
- Dimensions/Weights:
| MODEL | SIZE(INCH) | Import *Expor(IN) | A(IN) | B(IN) | D(IN) | T(IN) | Weight | Temp Steam Rating BTU/hr |
| SN-15 | 1/2 | 1/2*1/2 | 1 2/3 | 3 1/4 | 1 1/8 | 4 | 8.4(237) | 15000 |
| SN-20 | 3/4 | 3/4*3/4 | 1 2/3 | 3 1/4 | 1 1/8 | 4 | 9.1(258) | 100000 |
3. P/T Security Valve Installation
T/P Valves should be installed by a licensed plumber.
If the temperature probe protruding from inside the inlet thread is damaged or bent,do not install,and obtain a replacement valve.Clean out all deposits from the threaded boss on the heater before fitting a replacement valve,otherwise the new valve risks contamination and premature failure.

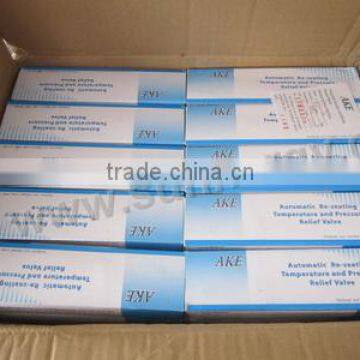

Box For One Piece
50 Pieces For One Carton
20 CTNS,TOTAL:1000 Pieces
Q1 : Are you Factory or trading company ?
We are Factory with 25 years of production experience.
Q2: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q3: Can you Provide the Sample?
Yes, We provide sample for testing for customers for the first cooperation or the needs of customers
Q4: How we can trust your company ?
We support Aliababa trade insurance , 100% products quality protection, 100%
on -time shipment protection, 100% payment protection for your covered amount.
Q5: What’s your delivery time ?
For 1000 pieces within 7-10 working days.
