Shot Blasting Machine/Tumbling Machine Sand Blasting Machine/Blasting Equipment CE
US$ 5,000 - 300,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Dongheng
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Made in China CE Turn Table Shot Blasting Machines/rotary Table Shot Blasting MachinesUS$ 5,000 - 100,000MOQ: 1 Set -
Gear and Aluminum Alloy Parts Surface Cleaning/ Turntable Type Small Shot Blasting Machine Q35 SeriesUS$ 5,000 - 100,000MOQ: 1 Set
-
Q37 Turntable Shot Blasting Machinery for Cleaning and Intensifying SurfaceUS$ 5,000 - 300,000MOQ: 1 Set
-
Q37 Turntable Type Steel Shot Blasting Machine/ Surface Cleaning MachineUS$ 5,000 - 300,000MOQ: 1 Set
-
Q37 Series Turntable Type Steel Shot Blasting Machine/ Surface Cleaning MachineUS$ 5,000 - 300,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
Dongheng
Model Number
Q35 series
Feature
Critical Cleaning / Residue Free, Non-Toxic, Rust / Corrosion Inhibitor
Fuel
Electric
Certification
Other, Patent and ISO9001
Use
Burnishing, Container / Bottle Cleaning, Descaling / Stripping
Cleaning Process
Other, abrasive/grits/sand/shot
Cleaning Type
Other, abrasive/grits/sand/shot
Industry Used
Other, machinery, foundry, automobile, forging, mechanical and steel industry
Material
Metal / Coil
Power(W)
Depend
Dimension(L*W*H)
depend
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

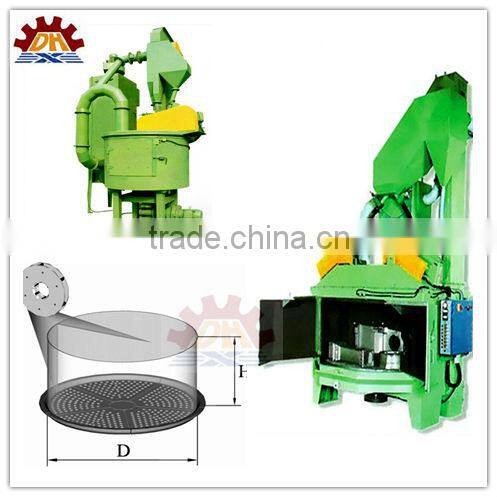

Turntable shot blaster
- Application: Machines designed and built as fully integrated blast cheaning systems to handle larger and/ or more feagile castings than barrel/ tumble machines. They provide a cost effective solution for batch cleaning, deburring, descaling, decoring and peening a wide variety of products.
- Equipment: Table type blasting chamber, blast wheel, abrasive recycle system, separator , dust collector, digital control panel etc.
Rotating Table Type Blasting Machine Uses
- Deflashing
- Descaling
- Profiling
- Surface Finishing
For
- Ferrous and non-ferrous castings
- Heat treated forgings
- Small Automotive parts
- Die castings and much more
- Forged Parts
- High value or Fragile Parts
They are probably the most frequently supplied type of machine. They are used in foundries for cleaning and descaling of medium-sized up to large castings, in heat treatment plants for the descaling of gear wheels, shafts, cylinders and similar parts, in forging, car-und steel construction factories for descaling and cleaning axles, shafts etc., in enameling plants for descaling and providing a proper key for the adhesion of paint, plastic coatings etc. They are very versatile machines, which seamlessly fit into production operations.
Machine details:
- The number and power of the turbines are chosen according to the requirement production rate.
- Optional PLC control system, stable quality and easy to get support from local.
- Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi.
- No-pit, easy for install and move and save cost.
- Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
- Table Blast Machines a good choice for cleaning a number of parts together.
- Widely used in cleaning and strengthening for Fragile or deep parts.
- Because the parts are loaded on a table or on satellites fixed to a table prior to entering the blast chamber, there is no movement between the parts and therefore part on part contact is eliminated.
- All shot blasting machines are totally integrated with abrasive reclaim systems, separator and dust collector.
- 20 years experienced engineers, customized service avaliable.
- After-sale service support will be provided within 24hours.
Technical Parameter
| Item | Unit | Q3512 | QF3512 | Q3525F |
| Size of cleaning chamber | mm | Φ1350*560 | Φ1350*860 | Φ2654*560 |
| Size of cleaning piece | mm | 600*250*250 | 600*250*500 | 600*500*250 |
| Turn table loading capacity | kg | 400 | 400 | 1000 |
| Turn table diameter | m | Φ1200 | Φ1200 | Φ2500 |
| Abrasive flow rate | kg/min | 200 | 2*120 | 2*250 |
| Blasting wheel power | kw | 11 | 7.5*2 | 15*2 |
| Lifting amount of elevator | T/h | 15 | 15 | 30 |
| Separating amount of separator | T/h | 15 | 15 | 30 |
| Abrasive initial filling | kg | 400 | 350 | 1500 |
| Ventilation capacity | m3 | 2800 | 2800 | 5200 |
| Dimension | mm | 1500*3450*3780 | 1900*1900*4165 | 4260*3647*5366 |
| Power(excluding dedusting) | kw | 17.3 | 18.7 | 35.2 |
Please feel free to contact us for more information.
Packaging & Shipping
Plastic wrap - - MDF wooden carton -- container -- ship -- your factory
Our Services
- 20 years experienced engineers provide best proposal for your need.
- Customized design available
- Oversea engineer service avaliable
- To aim to save your cost and improve efficiency
Company Information
Processing workshop:
We also provide foundery machine as below:
Stone shot blasting machine, Tumble shot blasting machine, spinner hook blasting machine, hook shot blasting machine, rotaray table type shot blasting machine, etc. and clay sand produce machine, resin sand produce machine, clay and resin sand regenerate machine, sand blasting machine, sand mixer, moulding machine, dust collector.
Any interest, please contact us.
