Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System

Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System thumbnail-1
Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System thumbnail-2
Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System thumbnail-3
Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System thumbnail-4
Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System thumbnail-5
Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System thumbnail-6
Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System photo-1
Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System photo-2
Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System photo-3
Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System photo-4
Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System photo-5
Turnkey Service QR3210 Tumble Belt Shot Blasting Machine With Load&unload System photo-6
US$ 5,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Dongheng
Contact Supplier Request Quote Chat Now
Qingdao Dongheng Foundry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name Dongheng
Model Number Q32 series
Feature Critical Cleaning / Residue Free, Non-Toxic, Rust / Corrosion Inhibitor
Fuel Electric
Certification CE, Other, CE, ISO9001
Use Burnishing, Container / Bottle Cleaning, Deflashing, Descaling / Stripping
Cleaning Process Other, abrasive/grits/sand/shot
Cleaning Type Other, abrasive/grits/sand/shot
Industry Used Other, machinery, foundry, automobile, forging, mechanical and steel industry
Material Metal / Coil
Power(W) customized
Dimension(L*W*H) customized
After-sales Service Provided Engineers available to service machinery overseas
Turnkey service QR3210 tumble belt shot blasting machine with load&unload systemTumblast Crawl Apron shot blasting machine
Turnkey service QR3210 tumble belt shot blasting machine with load&unload system
Turnkey service QR3210 tumble belt shot blasting machine with load&unload systemTurnkey service QR3210 tumble belt shot blasting machine with load&unload system

Product Description
Rubber belt apron / Crawler shot blasting cleaning machine
  • Application:  It provides a cost-effective solution for batch cleaning, deburring, descaling, decoring, deflashing and peening a wide variety of products.

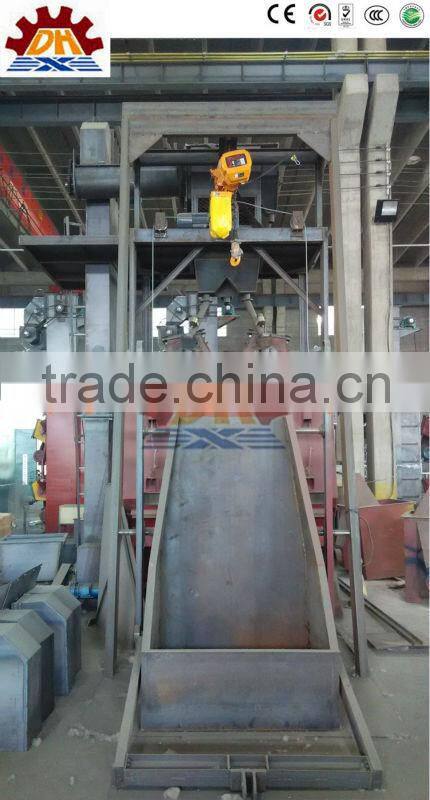

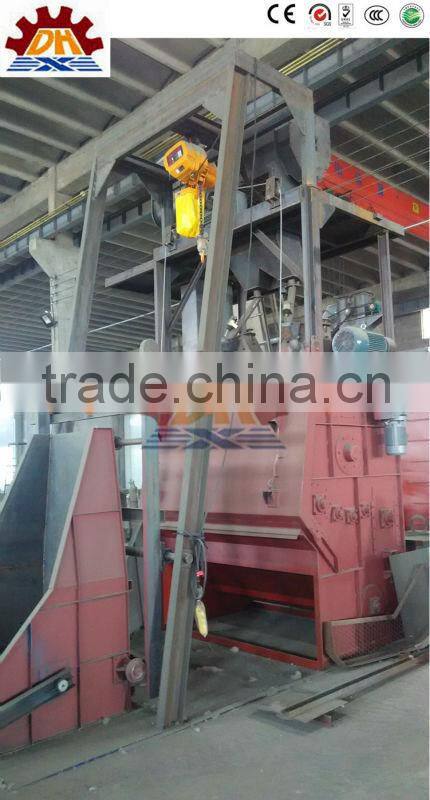

  • Equipment: Track Loading device (Optional), blast wheel, abrasive recycle system, separator , dust collector, control system.
Tumble Barrel Type Shot Blasting Machine Uses
  • Ferrous and non-ferrous castings
  • Heat treated forgings
  • Small Automotive parts
  • Die castings and much more
  • Lower value parts where part on part impingement is not an issue
  • When production requires dictate batch processing
  • Small to medium size castings, fabrications and heat-treated parts
  • Sand removal or part cleaning


Machine details:

  • Our barrel blast machine are designed to process a variety of parts that can be tumbled.
  • The endless conveyor belt and lateral round place creates a trough in which parts are treated.
  • The number and power of the turbines are chosen according to the requirement production rate.
  • Optional PLC control system, stable quality and easy to get support from local.
  • Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi.
  • No-pit, easy for install and move and save cost.
  • A high volume of parts can be processed in a small working area.
  • All shot blasting machines are totally integrated with abrasive reclaim systems, separator and dust collector.
  • 20 years experienced engineers, customized service avaliable.
  • Superior design, quality and rugged construction make our barrel machines more reliable and easier to maintain.
  • After-sale service support will be provided within 24hours.

Technical Parameter



Item   Q326 Q3210 QR3212
Productivity kg/h 600-1200 2500-3500 8000-10000
Feeding amount kg 200 600 1000
Max. weight of single piece  kg 15 30 50
Diameter of end disk mm 650 1000 1000
Effective Volume m3 0.33 1.05 1.6
Abrasive flow rate kg/min 200 250 500
Ventilation capacity m3/h 2500 3500 8000
Power consumption kw 13.47 25.05 50
Dimension (L*W*H) mm 3200*1520*3715 4290*1900*4500 6000*3010*5800

 Turnkey service QR3210 tumble belt shot blasting machine with load&unload systemTurnkey service QR3210 tumble belt shot blasting machine with load&unload systemTurnkey service QR3210 tumble belt shot blasting machine with load&unload system



Please feel free to contact us for more information.





Packaging & Shipping

Plastic wrap - - MDF wooden carton --  container -- ship -- your factory

  Turnkey service QR3210 tumble belt shot blasting machine with load&unload system


Our Services
  • 20 years experienced engineers provide best proposal for your need.
  • Customized design available
  • Oversea engineer service avaliable
  • To aim to save your cost and improve efficiency
Turnkey service QR3210 tumble belt shot blasting machine with load&unload system


Certifications



Turnkey service QR3210 tumble belt shot blasting machine with load&unload system

Company Information



Company with "honesty, create the high-quality goods" for the purpose, adhere to the "quality of survival, innovation for development, management for efficiency" business policy, with first-class technology, first-class products, first-class service wholeheartedly cooperate with you.





ADVANTAGES:



  • Professional manufacture with CE, ISO 9001, SonCap, CCC, BV inspect ETC;
  • Protective liner is 12mm ZGMn 12 wearing-ressist, the lifespan can be reach 5 year;
  • Shot wheels' spare parts made by High-Cr, the hardness is more than 55 Hrc;
  • Our production line is also full automated, we imported equipments from spain and japan;
  • The PLC control panle is made by Siements, Schneider etc;
  • We provide 1years warranty from your installed;
  • We have full set quality certificates, product meets quality requirement of USA, Europe, Australia, UK etc ;
  • 70% of our product exported to Europe, without quality claims up to now;
  • There're 7 major inspection procedures for Each piece solar panel during production : 3 times EL testing to ensure without micro-break/invisible break(normal manufacturer only test 1 or 2 times); 3 times appearance inspection to ensure panel without defect (normal manufacturer only inspect 1 or 2 times); 1 time power testing, power inspection; besides the standard inspection, each production procedure will inspect the upwards procedure;
  • So we guarantee each piece of our products have perfect appearance, positive power performance, and without quality hidden trouble.



Turnkey service QR3210 tumble belt shot blasting machine with load&unload system



Founded in 2002, is mainly focus on the prouduction and development of casting machinery and enviromental protection.

•After exploring market for 10 years, it gradually formed three leading products: surface cleaning, sand treatment, environmental protection equipment.

•One of the industrialization of entity collecting scientific reseaech, development,production and operation.It has fomed the domestic engineering center of complete sets equipment for shot blast cleaning machine.

•Production desigh all adopt CAD computer aided design.The production base and thchnology development center of casting machinery which has whole variety, high technical content in China foundry machinery industry.

•As a foundry machinery professionaol manufactuers, the company has advanced level at technology, product quality and automation level in the same industry at home.

• Specially equipped with wear-resistant parts factory, to provide customers the best quality accessories service.









Client visiting

 Turnkey service QR3210 tumble belt shot blasting machine with load&unload system









Any interest, please contact us.

Turnkey service QR3210 tumble belt shot blasting machine with load&unload system





 If you are interested in this equipment, please don't hesitate to contact us!



 If the machine is not suitable for your workpiece, please tell us the following information:







1) What kind of workpiece will you clean?



2) The size of workpieces(length, width and height of maximum  workpiece,Length, width and height of minimum workpiece?)



3) How many  the weight of maximum and minimum workpiece?



4) Please tell us your requirement cleaning efficiency?







According to your infomation, the most suitable machines will be designed for your workpieces.







What is the target market for this machine?



The Blaster is designed for customers who require a more sophisticated method than just manual cleaning in preparation for further processing or painting.







What type of abrasive media does it use?



The Blaster is designed to use round steel shot. The shot is recycled inside the system and gets smaller and smaller during the blasting process, until it is completely consumed. Approximately two tons are required for start-up, and approximately 20 pounds are consumed per blasting hour. Replenishment is easily done as needed.







What utilities are needed to run the Blaster?



The electrical system runs on three-phase input and a transformer will be provided for your supply voltage if required. Clean and dry compressed air supply is also needed.







What does it cost to operate?



The highly efficient turbines require much less power that competitor's shot blast machines. Including abrasive consumption, power consumption and maintenance, the total operating cost averages around $20 per hour in US. When comparing this to your current methods, keep in mind that the Blaster is at least 4 to 5 times as productive as manual cleaning and only one operator is required to load and run the machine while it is working. Labor costs are much lower, plus you will have a huge amount of extra capacity for cleaning.







Are there any special operator skills required for the Shot Blaster?



No, once the machine is installed and adjusted by our technician, running the machine consists of merely switching it on and setting the speed dial for the desired surface finish. Maintenance is simple too.











Commercial terms for shot blasting machine:







1. MOQ:1set



2. Quality guarantee: 12 months from installation date



3. Payment term: 30% downpayment by T/T, 70% balance paid by L/C



4. Over-sea engineers install guide is available, customer pays for their tickets, hotel and diet etc. buyers need arrange skilled worker and prepare insallation machinery and tools.



5. Using manual, maintenance manual and electrical diagram in English version.
