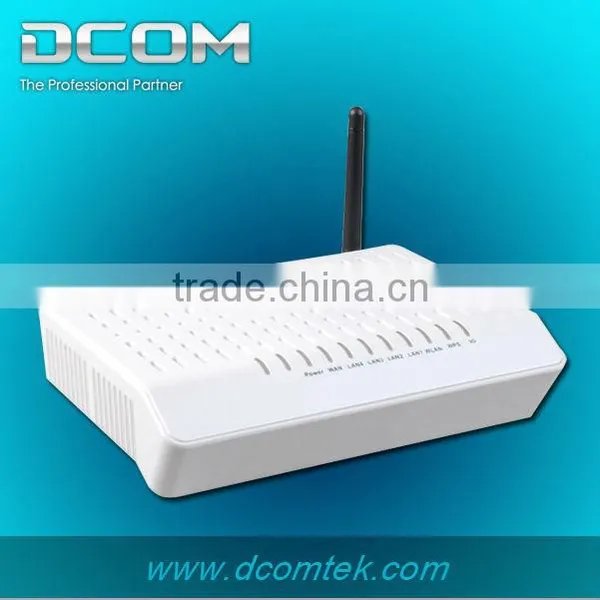

802.11n 150M Wireless ADSL Modem Router Support NAT and SPI Firewall

802.11n 150M Wireless ADSL Modem Router Support NAT and SPI Firewall thumbnail-1
802.11n 150M Wireless ADSL Modem Router Support NAT and SPI Firewall photo-1
US$ 15 - 20 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Style:
External
Type:
Wireless
Contact Supplier Request Quote Chat Now
Shenzhen Dcom Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Style External
Type Wireless
Interface Type RJ-45
Transmission Rate Other, 24Mbps
Certification CE,FCC,ROHS
Brand Name OEM/ODM
Model Number DWA-N115B
Place of Origin Guangdong, China

Specifications

1.Wireless speed 150Mbps, Great for on-line gaming, making Internet call or HD video streaming
2.ADSL,Wireless router in one

Software Specification
ADSL Features
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.dmt)
ITU-T G.994.1 (G.hs)
ITU-T G.992.3 (G.lite.bis)
ITU-T G.992.5
Max 6 kilometers
Data Rates
Downstream: Up to 24Mbps
Upstream: Up to 1.5Mbps
ATM Features
UNI 3.1,ATM Adaptation Layer Type 5-AAL5
Multiprotocol encapsulation over ATM (RFC 1483)
UBR, CBR, VBR-rt, VBR-nrt
Supports 8PVCs
PPP Features
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC 2516)
Switching
Features
IGMP multicast
IEEE 802.1d transparent learning bridging
Routing Features
Classical IP and ARP over ATM (RFC 1577/2225), MER
Static Routing, IP, TCP, UDP, ARP
NAT, NAPT, DNS, DDNS, DHCP Server
UPnP, Virtual Server, DMZ, Port Trigger
Wireless
Features
Complies with IEEE802.11n 1, IEEE 802.11g, IEEE802.11b
11n: Up to 150Mbps(dynamic)
Security: WEP 64bit/128bit , WPA-PSK/WPA2-PSK , WPA/WPA2
Provides 64/128bit WEP encryption security and wireless LAN ACL (Access Control List)
Max wireless transmit power: 17dbm
Antenna gain: 3dbi
Frequency Range:2.4~2.4835GHz
Security
NAT and SPI Firewall
IP Filtering
MAC filtering
Parental control
IPSec VPN
Support up to 10 IPSec VPN tunnels
VPN Pass
Through
IPSec/PPTP Pass-through
QoS
IP Type of service(ToS)
Device
Management
HTTP
Administration and operation software (firmware) upgradable locally by web(HTTP)
CWMP(TR-069)
Hardware Specification
Ports
4 10/100M LAN Ports(RJ45)
1 Line Port(RJ11)
LED Indicators
Power, Internet, ADSL, WLAN, LAN1~4,QSS
Dimensions
(W*D*H)
6.9*4.7*1.1 in.(174*120*28.8 mm)
Environment
Operating Temperature: 0oC~40oC (32oF~104oF)
Storage Temperature: -40oC~70 oC(-40oF~158oF)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
