Home > Industrial Equipment & Components > Cleaning Machine > Abrator > Very Good Standard Rotary Trolley Table Shot Blasting Machine/Turntable Sandblaster CE, ISO9001 Certified
Very Good Standard Rotary Trolley Table Shot Blasting Machine/Turntable Sandblaster CE, ISO9001 Certified
US$ 30,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Dongheng
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Most Advisable, Rotary Trolley Table Shot Blasting Machine/Turntable Sandblaster CE, ISO9001 CertifiedUS$ 30,000 - 80,000MOQ: 1 Set -
Most Prudent, Rotary Trolley Table Shot Blasting Machine/Turntable Sandblaster CE, ISO9001 CertifiedUS$ 30,000 - 80,000MOQ: 1 Set
-
Most Fitting Rotary Trolley Table Shot Blasting Machine/Turntable Sandblaster CE, ISO9001 CertifiedUS$ 30,000 - 80,000MOQ: 1 Set
-
Most Useful Rotary Trolley Table Shot Blasting Machine/Turntable Sandblaster CE, ISO9001 CertifiedUS$ 30,000 - 80,000MOQ: 1 Set
-
Most Advantageous Rotary Trolley Table Shot Blasting Machine/Turntable Sandblaster CE, ISO9001 CertifiedUS$ 30,000 - 80,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
Dongheng
Model Number
QH69 series
Feature
Critical Cleaning / Residue Free, Non-Toxic, Rust / Corrosion Inhibitor
Fuel
Electric
Certification
Other, ISO9001
Use
Burnishing, Container / Bottle Cleaning, Descaling / Stripping
Cleaning Process
Other, abrasive/grits/sand/shot
Cleaning Type
Other, abrasive/grits/sand/shot
Industry Used
Other, machinery, foundry, forging, mechanical and steel industry
Material
Metal / Coil
Power(W)
Depend
Dimension(L*W*H)
depend
After-sales Service Provided
Engineers available to service machinery overseas

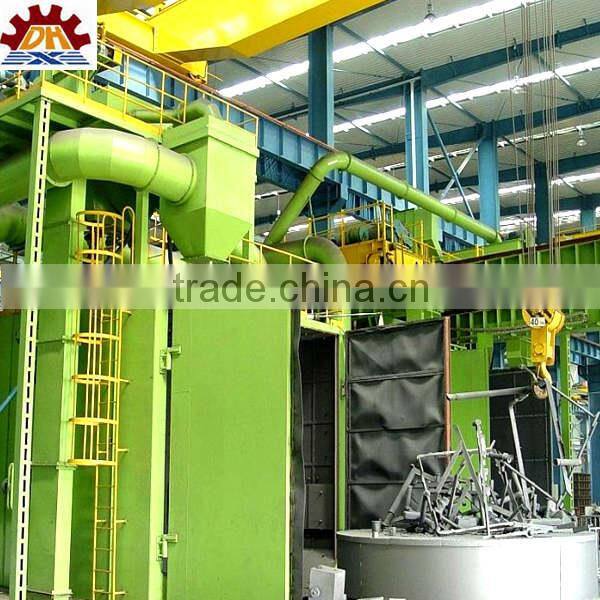

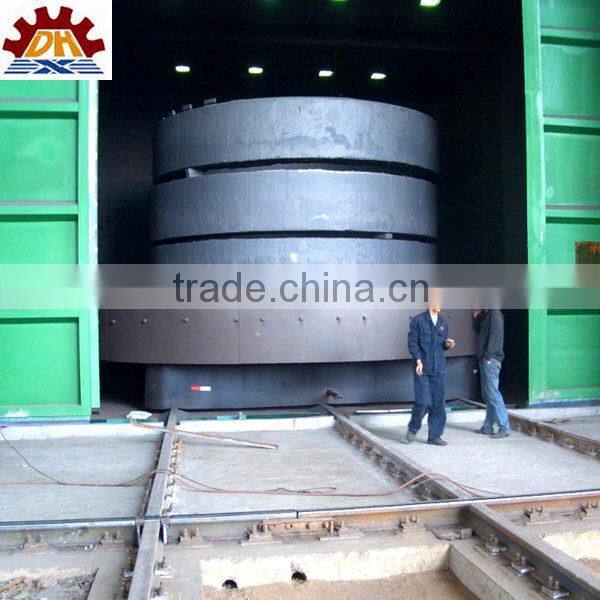

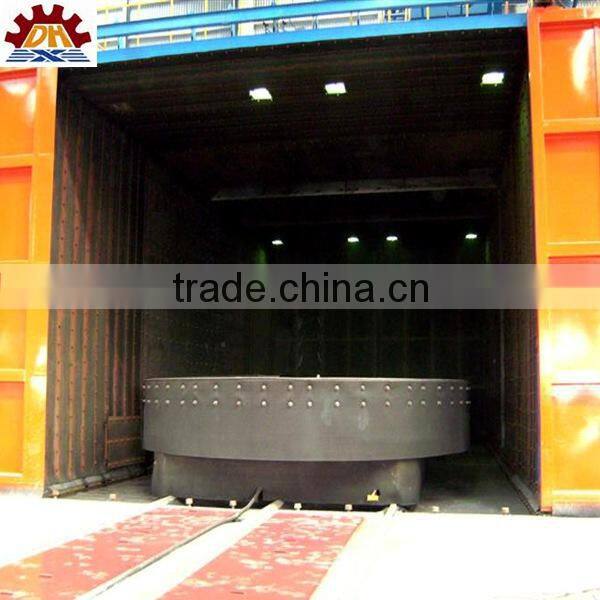

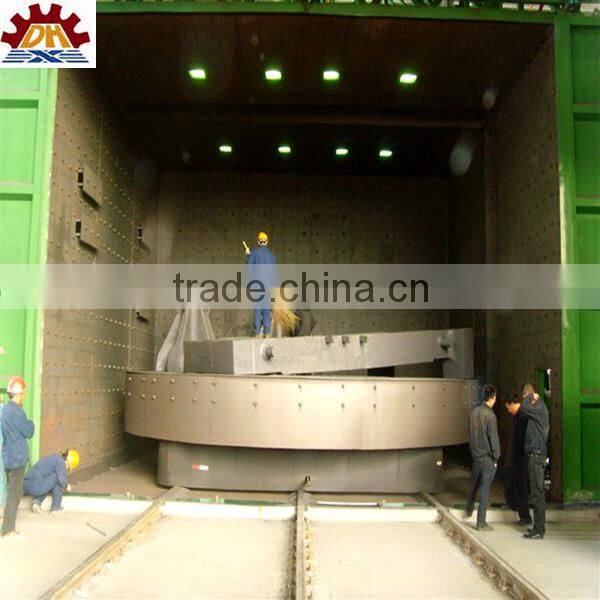

Trolley turntable shot blasting machine
Product Description
trolley types sand blasting machine
- Improve corrosion resistance to corrosion of machine and metal profile.
- Improve anti-fatigue performance and extend steel life
- Improve the steel surface craft performance
- It benefits to the laying-off and precise blanking to NC cutting machine
- Because the steel is regular shape before processed, so it good to rust
- removing and anti-rust paint spraying by auto machine. l Improve the cleaning efficiency
- Reduce labor intensity for cleaning.
- Alleviating environmental pollution
Rotary turn table shot blast Machine details:
- Blast wheels for outstanding speed without sacrificing coverage.
- Except shot blasting, machine with lifting peeing device for work pieces inner
- Economical abrasive consumption. With 3 classes full flow curtain hammer style abrasive reclaim system. The abrasive media is cleaned and recycled, reducing disposal and minimizing abrasive costs.
- PLC control system, stable quality and easy to get support from local.
- Sweden Standard descaling effect
- Switzerland +GF+DISA technology blast abrator
- Steel plate blast cleaning machine adopt PLC auto control and manual control method
Auto-detection, auto-alarm and auto-cutout. Alarm system adopts audible and visual alarm.
Setup safety interlock device between systems
- Dust collector with Pulse-jet cleaning bag filter to remove dust
- Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi.
- 20 years experienced engineers, customized service avaliable.
- After-sale service support will be provided within 24hours.
Technical Parameter
| Item | Q365C | Q3610 | Q765 | Q7610 | Q7620 | Q7630 |
| Cleaning size | Φ2500X1300 | Φ2500X1500X380 | Φ3000X1500 | Φ2500X1500X780 | Φ4000X2000 | Φ5300X800 |
| Rotating power (kw) | 1.1 | 2.2 | 1.5 | 2.2 | 3.0 | 4.0 |
Moving power |
2.2 | 3 | 2.2 | 3.0 | 5.5 | 5.5 |
| Rotary table loading weight (t) | 5 | 10 | 5 | 10 | 20 | 30 |
| peening capacity(kg/h) | 3600-4000 | 3600-4400 | 3600-4400 | 3600-4400 | 3600-4400 | 3600-4400 |
| Blasting capacity (kg/h) | 2x250 | 4x250 | 2x250 | 3x250 | 4x250 | 4x250 |
| Total power (kw) | 23 | 24.9 | 68.5 | 83.2 | 107.5 | 123.5 |
| Machine size | 7000x4200x7250 | 11500x5500x7700 | 4200x4200x3500 | 3300x3300x2800 | 5000x5000x3400 | 6300x6300x2800 |
Photos
Please feel free to contact us for more information.
Following details will help us provide better advice for your consideration.
- What kind of workpiece will you clean? (name, material, processing craft)
- The size of workpieces(max. & min. L*W*H)
- Weight of pieces (max. & min.)
- Main purpose (for sand remove or descaling or other?)
- Requirement for efficiency?
Shot blasting machines:
Client visiting
Packaging & Shipping
Our Services
- 20 years experienced engineers provide best proposal for your need.
- Customized design available
- Oversea engineer service avaliable
- To aim to save your cost and improve efficiency
Company Information
Processing workshop:
Dongheng also manufacture variety of foundry machinerys, such as shot blasting machine, moulding machine, core shooting machine, resin and clay regenrate machine, stone shot blast machine etc.
