2016 New Design linear led high bay light, IP 65 5 Years Warranty.
Feature:
1. Good solution for super market, factory facilities, train, bus station, garage, airport ,warehouses, fair and exhibition halls, etc
2. Philip 3030 LED as option,lumen efficency up to 120lm/w with CRI over 80Ra.
3.Nice optical design with multiple beam angle (30° 60° 90°and double 25°).
4. With function of Microwave sensor,Daylight sensor,0-10V,DALI,emergency.

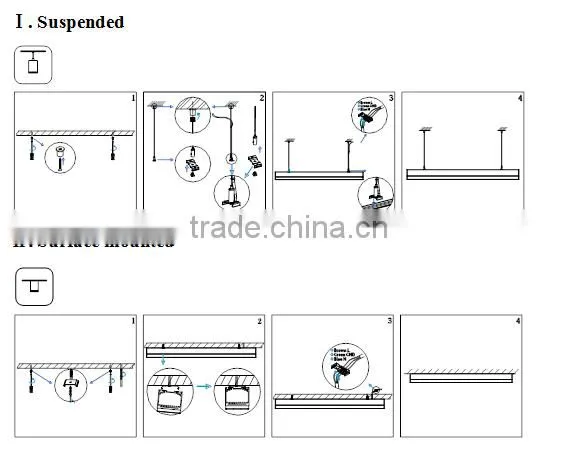

5. Rational design and easy installation, With installation of Chain connection.

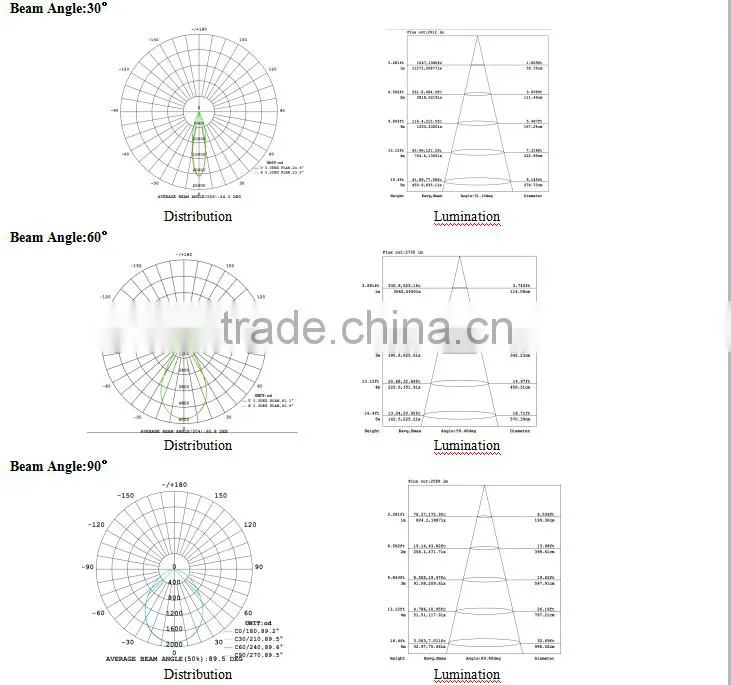

Light Distribtion Drawing:
Parameters of 1.2M Tri-proof Linear Light:
Product Mode |
LGLD011 |
LGLD012 |
LGLD013 |
Power |
26W |
50W |
75W |
Input Voltage |
AC 220-240V |
AC 220-240V |
AC 220-240V |
Supply frequency |
50~60Hz |
50~60Hz |
50~60Hz |
Power factor(PF) |
>0.95 |
>0.95 |
>0.95 |
Luminous flux |
>3250 Lm |
>6250 Lm |
>9375Lm |
Luminous efficacy |
>125Lm/W |
>125Lm/W |
>125Lm/W |
Color Temperature: |
2700-3200K ,4000-5000K ,5700-6500K |
||
CRI(CRI) |
Ra>80 |
Ra>80 |
Ra>80 |
Beam Angle |
30° 60° 90° Double25° |
||
LED Source |
Philip SMD3030 |
||
Material |
6063Aluminium +PC |
||
Housing colors |
Silver,Black or White |
||
IP Rating |
IP44 |
||
Installation |
surface mounted, suspended |
||
Net Weight |
2.7 KGS |
4.3KGS |
5.1KGS |

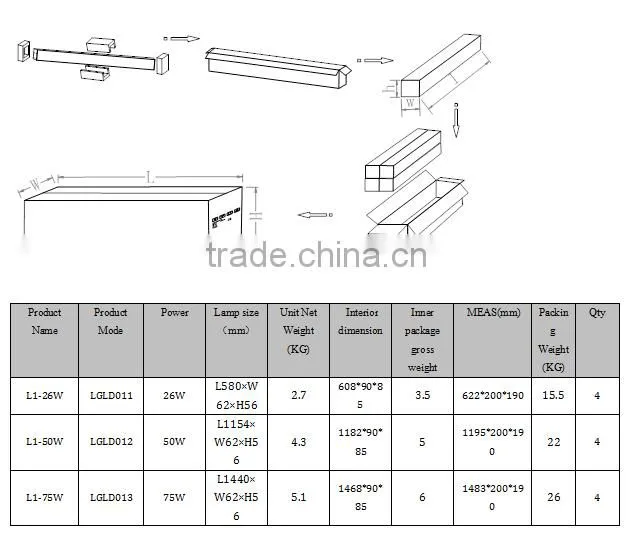

Dimension |
L580×W62×H56mm |
L1154×W62×H56mm |
L1440×W62×H56mm |

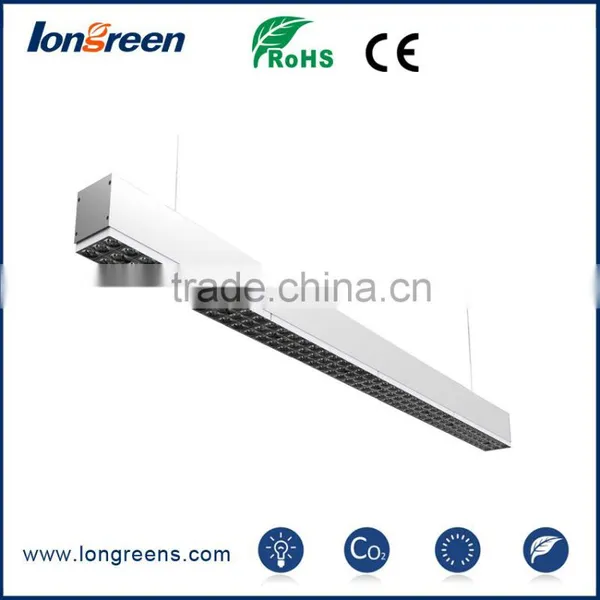

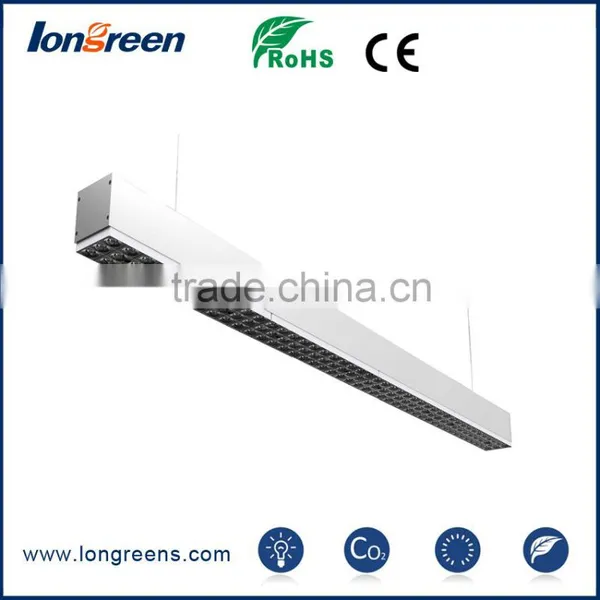

Product Picture:

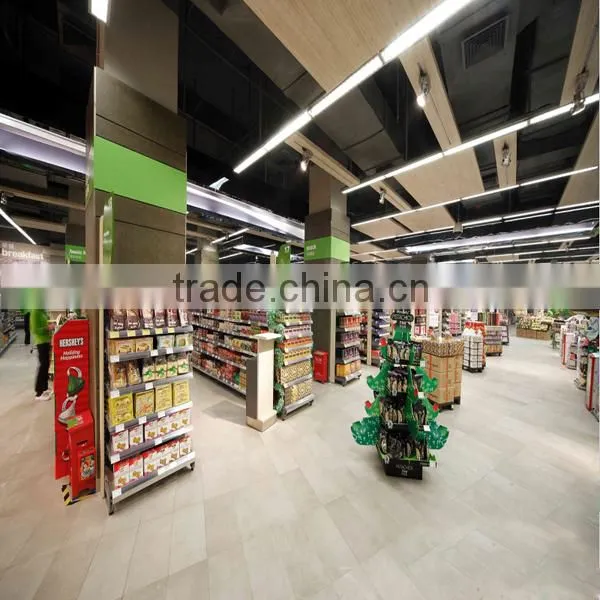

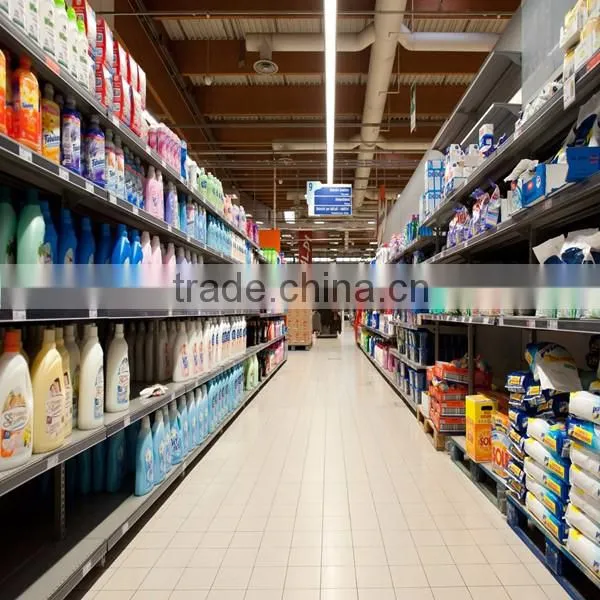

Super markets, halls, warehouses, fair and exhibition halls, workshops,
train,bus station,airport,garage
Our Service:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your inquires
3. OEM & ODM, any your customized lighting we can help to design and produce.
4. Protection of your sale's area, idea of design and all your private information
5. All the products must gained 24 hours aging testing before delivery to ensure the quality again.
6. Delivery time: 3-4 days for sample,7-15days for bulk order usually
7. Delivery way: DHL; UPS; TNT; FEDEX; EMS; BY SEA; BY AIR
8. 3 year warranty for our led products.
-Provide professional industrial lighting, office lighting, super LED lighting solutions
-We have a complete and stable R & D in product development team, QA quality control system, production and supply system.
-All LED lighting products meet CE.ROHS, OL.SAA safety standards and quality certification
-We have a number of product certification and testing reports
-24 hours of aging, each batch of product shipments are strict testing all aspects, to ensure that products manufactured pass rate of 100%
-We are committed to providing customers with high quality LED products and solutions, and high value- added services.
