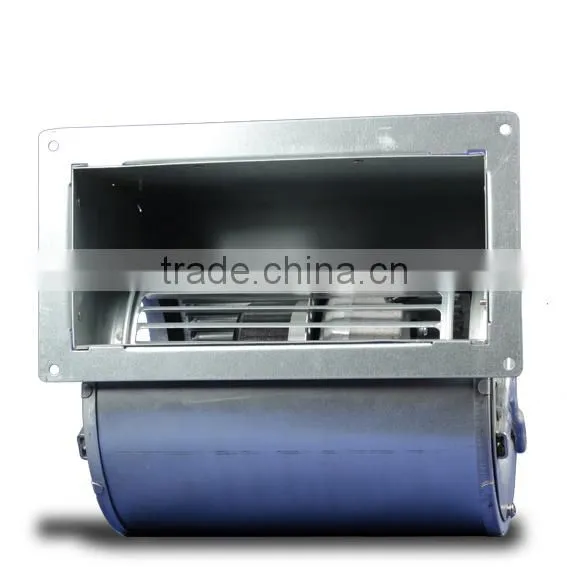

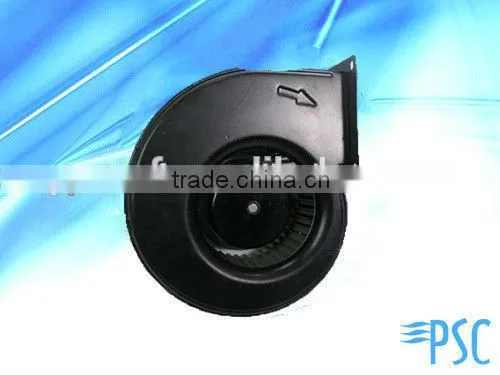

High Performance! PSC EC Industrial Blower 205x219x272mm with UL Since 1993----PSC Motor and Fan

Company Profile

PSC Motor and Fan is an American company specialized in Thermal Solution since 1993, and its main products are DC/AC/ECAC Backward Curved Impeller, Centrifugal Fan, Axial Fan, Blower and CPU Cooler.

PSC has been a major supplier to HP Compaq, IBM, ATI, Cisco Systems, Rockwell Automation, APC (American Power Conversion, SGI and other many well-known companies in the world.

Key Features

– Compact dimensions

– Available in GreenTech EC technology or AC technology

– Wide selection of models, dimensions and air performance levels

– Optimum efficiency and noise level due to well-engineered aerodynamic design of the fan blades

– High-efficiency, energy saving designs in GreenTech EC technology with standardized integration of control functions and sensor signals

– Wide range of accessories, including guard grilles, basket guard grilles and wall rings

– The axial fan is dynamically balanced in two planes to DIN ISO 1940

– Numerous approvals, including VDE, UL, CSA, CE and GOST

– Applications: Ventilation, air-conditioning and refrigeration technology, automotive industry, wind power and mechanical engineering/finishing equipment industry

Base Parameter

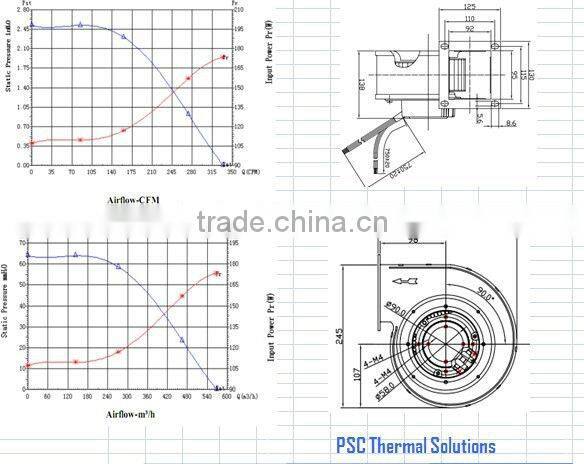

Outline Drawing & Performance Curve

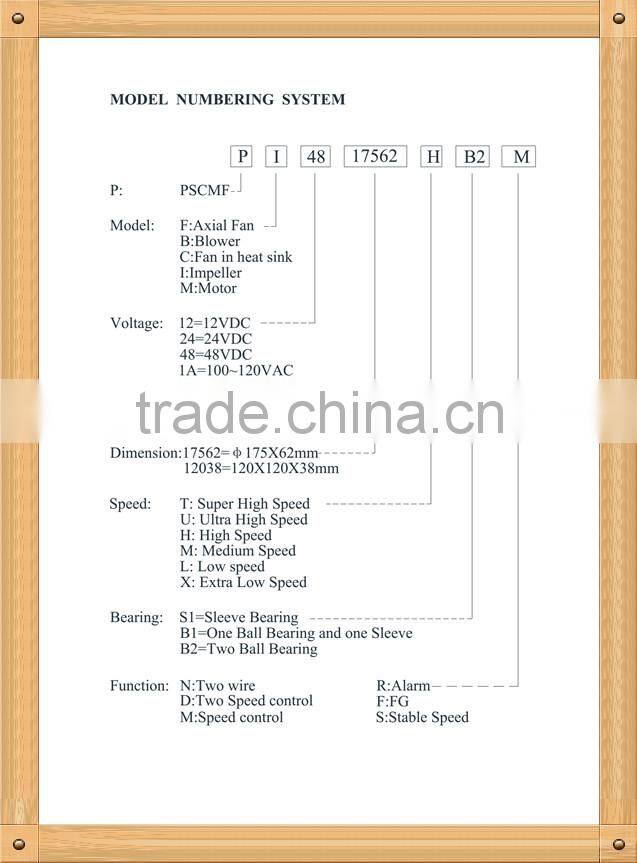

Model System

ECAC Technology

When PSC Motor and Fan describes their range of ECAC products, we use the acronym “ECAC,” to refer to an electric motor, fan, blower or impeller that is powered by Electronically Commutated Alternating Current.

This means that the power to the unit comes out of the available power socket; this is 115V AC in the US and 230V AC in Europe and Asia.

Each PSC ECAC Motor is equipped with sophisticated on-board Voltage Conversion Circuitry that converts the 115V AC or 230VAC power input to 90V DC power, and it is this current that actually powers the Motor.

As the motor itself is now actually powered by DC input, we can now incorporate the standard DC Motor functionality that would not be available with a standard AC powered unit.

This functionality includes the following features:

l  The biggest benefit is PWM Speed Control or Analog Speed Control. This allows the User to vary the RPM of the motor to whatever speed is needed by his system; with a standard AC motor, it has to run at maximum speed at all times.

l  A Tachometer Out Signal is provided, so that the User can monitor the performance of the motor. This signal usually provides 3 Pulses per Revolution.

l  An Alarm Signal can also be available which tells the User if the Motor has stopped for some other reason.

The major advantage of ECAC technology, as compared to a straight AC-powered electric motor, is the Power Savings.

As an example, a standard 225mm AC Impeller may consume 160 Watts in power, whereas an equivalent 225mm ECAC Impeller may consume only 108 Watts in power, thereby using 62 per cent as much power as the AC unit.

ECAC powered electric motors, and by extension the full range of ECAC air moving devices manufactured by PSC Motor and Fan, will see on average a drop in power consumption of at least 30 per cent over an equivalent conventional AC powered unit.

Application

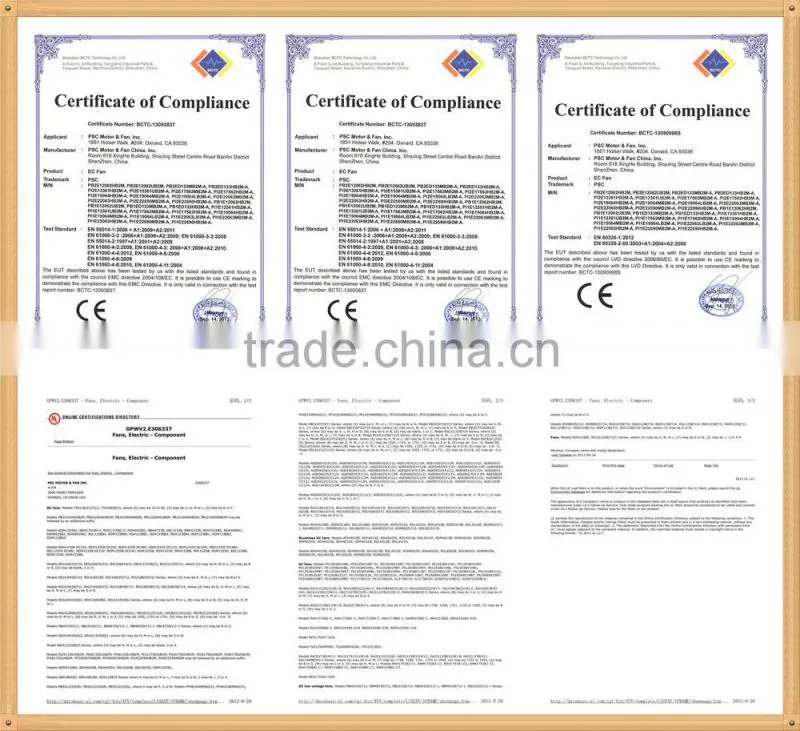

Certification

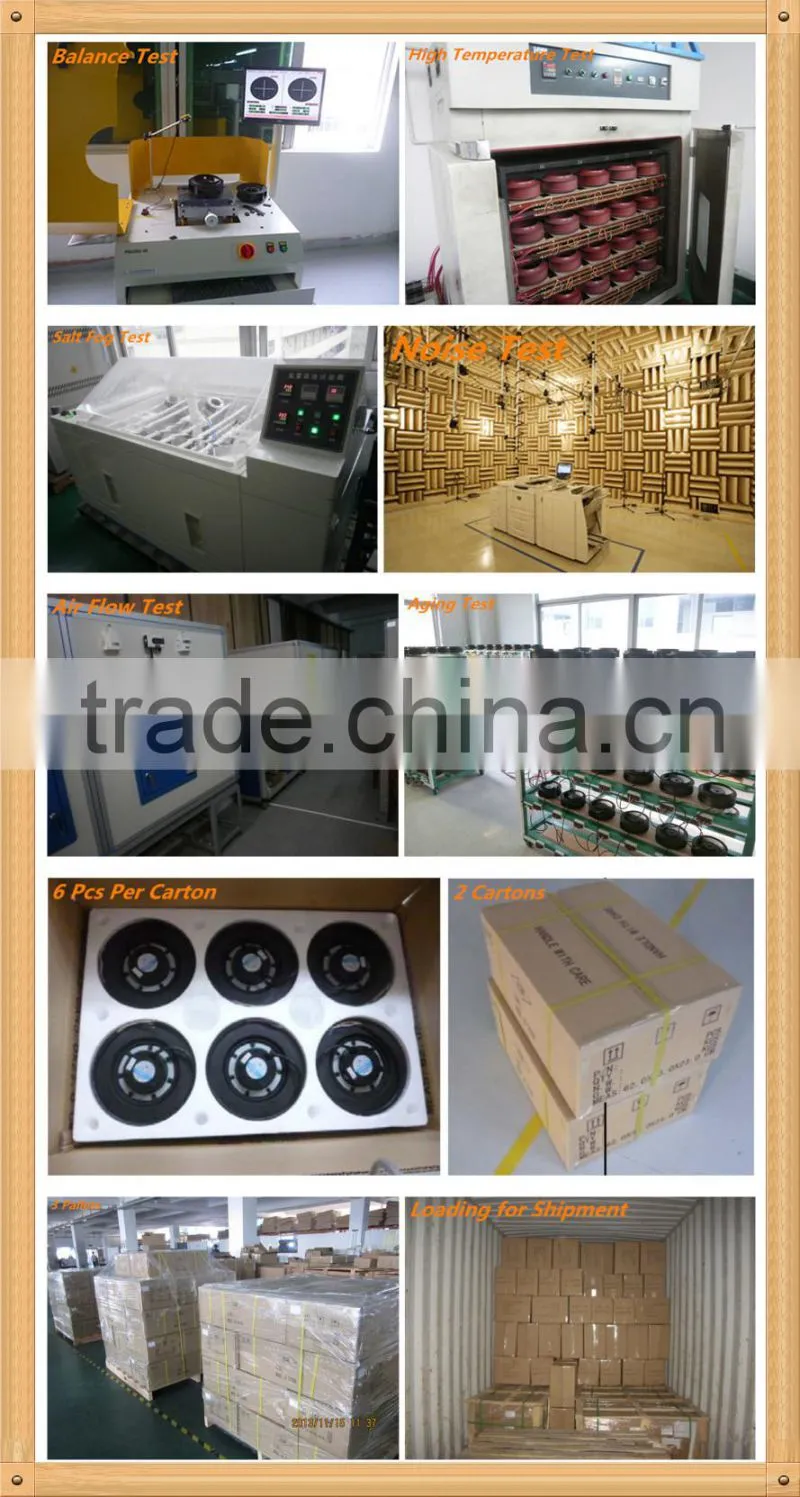

Inspection

Express and Payment

Customers and Partners

Contact  Us
