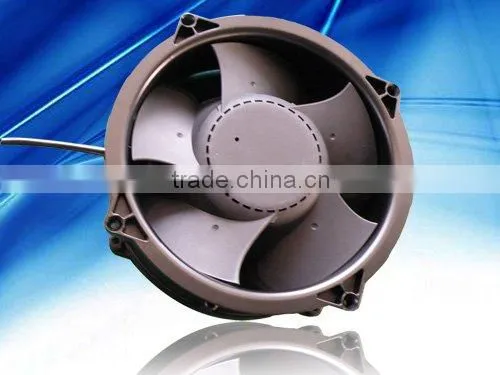

DC cooler fan
USD $50 - $60
/ Piece
200 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- Honhkong
You May Like
Product Details
Electric Current Type: | Other, DC, DC | Mounting: | Other, heat exchanger/ventilation, Other | Blade Material: | Other, Plastic, Plastic |
Place of Origin: | Guangdong, China | Brand Name: | PSCMF, PSCMF | Model Number: | 20070 |
Voltage: | 48/24 V | Power: | 108W | Air Volume: | 550 CFM |
Speed: | 4600 RPM | Certification: | Other, UL CE, UL CE |
Product Description
Specifications
1.DC Axial Fan/ centrifugal Fan/ cooler Fan2.Quality: High quality
3.Price: Competitive;
4.Lead Time: Shortly
DC Axial Fan/ centrifugal Fan/ cooler Fan
- size Ø200 x70mm
- Weight: 1.76kg
- Impeller: Plastic PA6.6(polyamide glass-fibre reinforced)
- Motor: DC brushless external rotor motor
- Rotor: Black paint
- Lead Wire: AWG#20 UL 1007
- Insulation: Class A
- Safety: UL.CE
- Operation Temperature:-20°c~+60°c
Listed Model | Bearing System | Rated Voltage | Operating Voltage | Rated Current | Rated Speed | Power | Air Flow | Air pressure | Noise Level | Available Features (Optional) | ||||
Part NO. | B / S | VDC | VDC | A | RPM | W | CFM | m3/h | mmH2O | inH2O | dBA | Tachometer Output | Autorestart | Pulse Width Modulation |
PF2420070HB2M | B | 24 | 16~28 | 4.50 | 4,600 | 108.0 | 517.7 | 879.5 | 67.6 | 2.66 | 85 | |||
PF4820070HB2M | B | 48 | 36~56 | 2.30 | 4,600 | 110.4 | 517.7 | 879.5 | 67.6 | 2.66 | 85 | |||
PF4820070LB2M | B | 48 | 36~56 | 0.75 | 2,900 | 36.0 | 319.1 | 542.1 | 31.4 | 1.24 | 58 |
