Specifications
1.High efficiency2. ISO 9001:2008 certification
3.easy to operate
mpt delivery

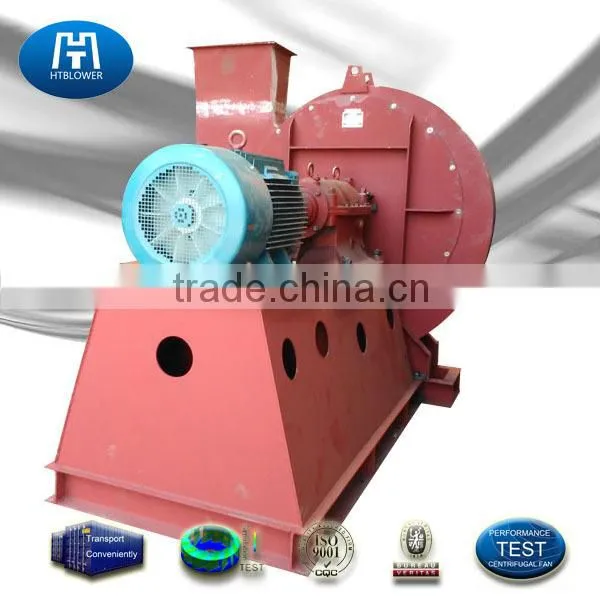

Low pressure Thermal power plant centrifugal fan
Hengtong Blower products in each big industry were used as key equipment, among dust removal centrifugal fan, boiler centrifugal fan, cement plant dedicated centrifugal fan,air centrifugal fan , gas delivery centrifugal fan high temperature centrifugal fan, environmental protect centrifugal fan etc were used in industrial and civil fields.
Application
Hengtong blower custom-engineered centrifugal fans are designed specifically for each contract which allows us to apply a combination of experience, advanced design techniques and a knowledge of the operating conditions to select the optimum fan in terms of capital cost, running cost, maintainability and reliability. A wide range of options are available in terms of drive arrangement, output control, layout and ancillary equipment, to give maximum flexibility to the plant designer.
Power Generation |
Hengtong blower provide all kinds of air handing products to meet the requirements of power generation industry. We provide fans and blowers that supply, exhaust contain and cool airflow within various applications. From industrial boilers systems and specialty cooling applications to dust collection systems, our pre-engineered and custom heavy duty fans are designed by engineers with power generation applications in mind. |
General Ventilation |
Hengtong blower designs and manufactures an array of pre-engineered and heavy custom duty fans for various industries to ensure proper ventilation .from airfoil fans to backward inclined fans, we provide highest performance with efficiency and versatility that match to your requirements, our air handing products supply clean air and exhaust unwanted and heated air out of the airflow so as to create an cosy and safe working environment. |
Transportation |
The transportation industry requires high quality durable fans for military, construction and mining purposes as well as locomotive and aviation systems. Hengtong Blower’s pre-engineered and custom heavy duty fans are designed and manufactured for braking schemes, exhaust systems, and general ventilation applications. Our fans are constructed with spark resistant materials and can withstand the highest temperatures for exceptional durability even in the most extreme environments. |
Burner System |
Hengtong is a leading provider of pre-engineering and heavy custom duty fans for burner system applications, burner system are widely used for heating and drying throughout various industries. our fans and blowers are constructed with abilities to supply long lasting quality and consistent airflow for high pressure and combustion air systems |

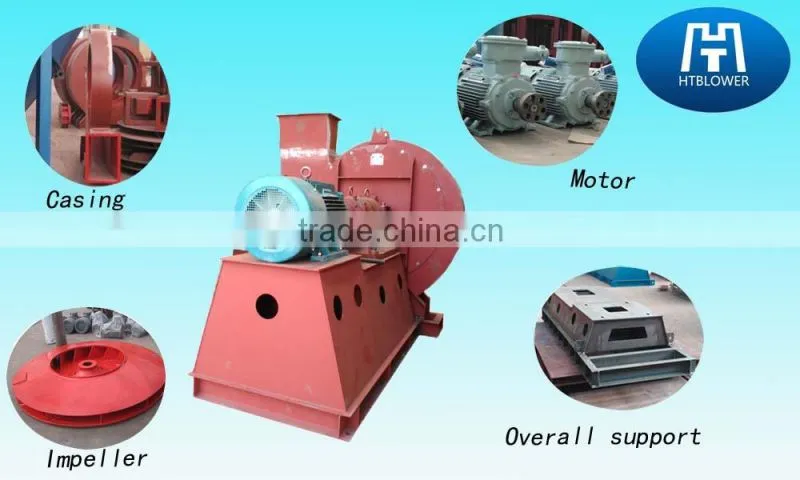

Recommended parts
Low pressure Thermal power plant centrifugal fan :
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Air inlet: Convergence can be a good design to reduce wind resistance, and to be able to get better gas inlet angle when entering the impeller wheel, can effectively improve the operating efficiency of the fan.
Overall support:Overall support is your installation is very simple and easy operation
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system
Optional components
Flow Process Fan driven by motor, drive the impeller rotation, the gas along the air inlet get into the impeller, as a result of the action of the impeller, the gas gain energy, pressure and kinetic energy increased, the impeller gas out of the volute impeller junior people after work, leave is the role of volute impeller gas concentration of diversion, and parts of the gas kinetic energy into the static pressure, and then send the gas from the outlet of the spiral case, when the gas enough energy to overcome the resistance of pipelines and gas can be transported to high or the distance.
Technical Parameters
| pplication | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 2000 | mm |
| Speed of mainshaft | 960 | ~ | 4000 | rpm | |
| Pressure range | 251 | ~ | 4500 | Pa | |
| 1 | ~ | 33 | mmHg | ||
| 25 | ~ | 459 | mmH2O | ||
| Flow range | 220 | ~ | 221730 | m3/h | |
| 373 | ~ | 376899 | CFM | ||
| System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | coupling | Can assign | |||
| Foundation bolt | Carbon steel | ||||
Production process
Installation Service
There are three methods for our installation:
Quality Assurance
Hengtong's Quality Control programe is supported by a comprehensive Quality Management System (ISO 9001:2000), deviced at the time of inception andcontinuously upgraded. We have in place highly mechanised testing facilities, with procedures laid out to the requirement standards. The test
facilities in place permit the flawless testing of the complete range of our products.
customer visitting
our blowers are exported to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise. If you are interested in our Low pressure Thermal power plant centrifugal fan , Please don't hesitate to contact me ! if you are interested in our Low pressure Thermal power plant centrifugal fan , Please don't hesitate to contact me !
