Specifications
High Pressure Industrial power plant Centrifugal Draft fan1.Industrial draught air Blowers
2.ISO 9001
3.Long life

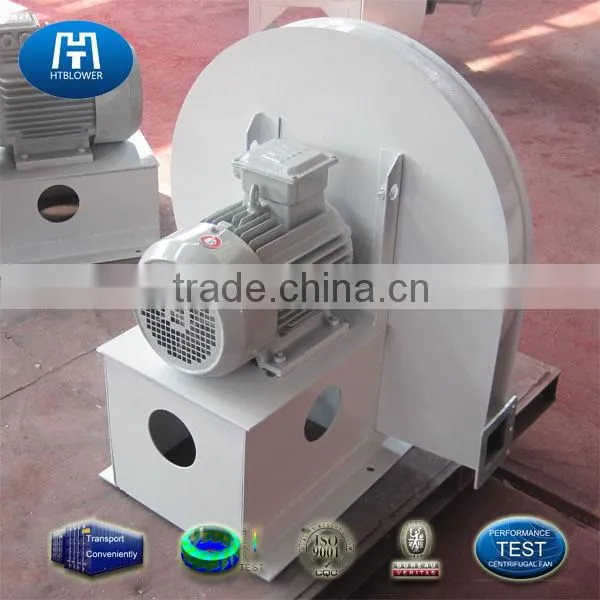

High Pressure Industrial power plant Centrifugal Draft fan
Hengtong Blower products in each big industry were used as key equipment, among dust removal centrifugal fan, boiler centrifugal fan, cement plant dedicated centrifugal fan,air centrifugal fan , gas delivery centrifugal fan high temperature centrifugal fan, environmental protect centrifugal fan etc were used in industrial and civil fields.
Application
Hengtong blower custom-engineered centrifugal fans are designed specifically for each contract which allows us to apply a combination of experience, advanced design techniques and a knowledge of the operating conditions to select the optimum fan in terms of capital cost, running cost, maintainability and reliability. A wide range of options are available in terms of drive arrangement, output control, layout and ancillary equipment, to give maximum flexibility to the plant designer.
Air Draught blower |
Different from forced draft fans which produce positive pressure,induced draft fan pproduce negative pressure in a system.Hengtong blower provide various Industrial draught air Blowers and blowers to maintain system |
Boiler system |
According to different applications, boiler system are used for generating steam and electric energy in many different industries, boiler system needs forced draft fans to offer combustion air ,at the same time, induced draft fan remove products of combustion and maintain the required draft. over-fire air fan, primary air and FGR fan are used to circulate gases to different parts of the system. Hengtong blower is a leading provider of pre-engineering and heavy custom duty fans for boiler system. |
Gas delivery |
Hengtong blower provide a wide range of lines of air handing equipment for conveying powder and bulk solids. the bulk density of the materials such as food or metal must be determined with the purpose to convey materials by airflow, our fans are designed to produce high velocity air to carry materials from processing stage to the collection stage. fans and blowers are also used to conveying ,so as to provide extra cooling and aeration to the materials if needed. |
Recommended parts
High Pressure Industrial power plant Centrifugal Draft fan:
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Air inlet: Convergence can be a good design to reduce wind resistance, and to be able to get better gas inlet angle when entering the impeller wheel, can effectively improve the operating efficiency of the fan.
Overall support:Overall support is your installation is very simple and easy operation
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system
Optional components
Flow Process Fan driven by motor, drive the impeller rotation, the gas along the air inlet get into the impeller, as a result of the action of the impeller, the gas gain energy, pressure and kinetic energy increased, the impeller gas out of the volute impeller junior people after work, leave is the role of volute impeller gas concentration of diversion, and parts of the gas kinetic energy into the static pressure, and then send the gas from the outlet of the spiral case, when the gas enough energy to overcome the resistance of pipelines and gas can be transported to high or the distance.
Technical Parameters
| Temperature | Normal temperature Air | |||
| Air composition | Clean air | |||
| Dusty air | ||||
| Impeller diameter | 400 | ~ | 1170 | mm |
| Speed of mainshaft | 960 | ~ | 2900 | rpm |
| Pressure range | 3253 | ~ | 9265 | Pa |
| 24 | ~ | 70 | mmHg | |
| 332 | ~ | 945 | mmH2O | |
| Flow range | 844 | ~ | 6978 | m3/h |
| 1434.642189 | ~ | 11861 | CFM | |
| Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | |||
| Impeller cone (Air Inlet) | Carbon steel | |||
| Case | Carbon steel | |||
| Air damper | Carbon steel | |||
| Drivetrain | Direct drivetrain | Can assign | ||
| Foundation bolt | |
|||
Production process
Installation Service
There are three methods for our installation:
Quality Assurance
Hengtong's Quality Control programe is supported by a comprehensive Quality Management System (ISO 9001:2000), deviced at the time of inception andcontinuously upgraded. We have in place highly mechanised testing facilities, with procedures laid out to the requirement standards. The test
facilities in place permit the flawless testing of the complete range of our products.
customer visitting
our blowers are exported to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise. If you are interested in our High volume Power plant boiler dust ID blower , Please don't hesitate to contact me !
If you are interested in our High Pressure Industrial power plant Centrifugal Draft fan, Please don't hesitate to contact me !
