Specifications

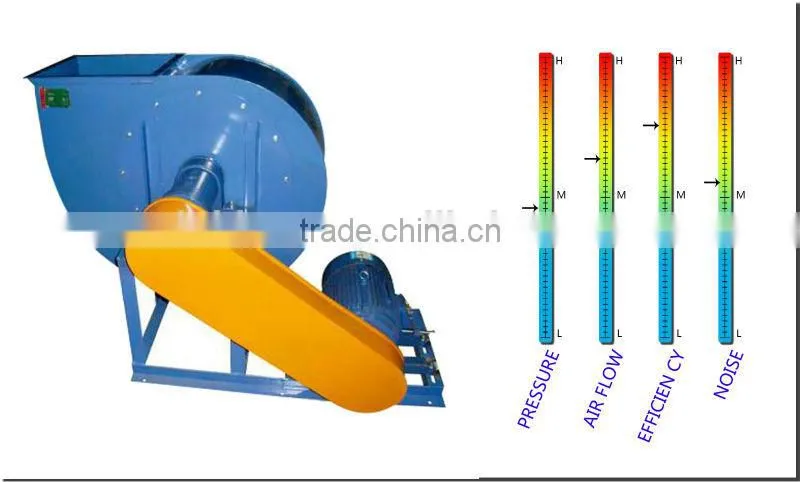

Forward curve blade Blast furnace Centrifugal blower :1.Low noise
2.High efficiency
3.Long life
4. ISO9001
Forward curve blade Blast furnace Centrifugal blower

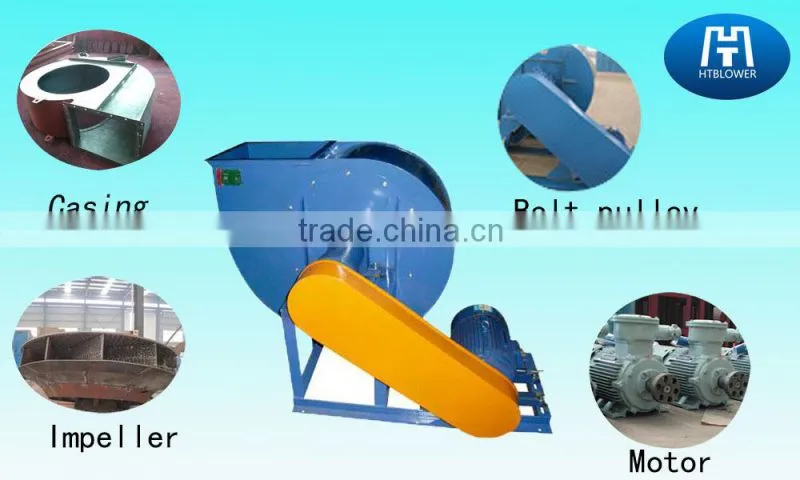

The Forward curve blade Blast furnace Centrifugal blower :
Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Overall support:Overall support is your installation is very simple and easy operation
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Belt pulley: The structure is compact save a space ,differential transmission.
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 730 | ~ | 2550 | rpm | |
| Pressure range | 402 | ~ | 5358 | Pa | |
| 3.015 | ~ | 40.185 | mmHg | ||
| 41.02040816 | ~ | 546.7346939 | mmH2O | ||
| Flow range | 5508 | ~ | 119491 | m3/h | |
| 9362.570117 | ~ | 2013112.3576 | CFM | ||
|
System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | Coupling | Can assign | |||
| Foundation bolt | Carbon steel | ||||
Our production process of Forward curve blade Blast furnace Centrifugal blower by the Material preparation, Plate forming , Casing welding ,Impeller welding Packaging and shipment complete.
Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, metallurgy centrifugal fan , Blast furnace Centrifugal blower , high temperature blower, environmental protect blower etc were used in industrial and civil fields.
If you are interested in our Forward curve blade Blast furnace Centrifugal blower , Please don't hesitate to contact me !
