long life motor Industrial coal mill air blower

FOB Price

USD $600 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Electric Current Type:	Other, AC, AC	Blade Material:	Other, Cast Iron, carbon steel	Mounting:	Other, Free Standing, Free Standing
Place of Origin:	Henan, China	Brand Name:	Hengtong, Hengtong	Model Number:	XTS-050
Power:	1.38~181kw, 5.5~367.6kw	Voltage:	380~660V, 3~11kV	Air Volume:	5508~120000m3/h
Speed:	730~1450r/min, 960~2900r/min	Certification:	Other, ISO 9001:2008	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

wooden package or as customers' requirements

Product Description

Specifications

our produce
1.High efficiency
2. ISO 9001:2008 certification
3.easy to operate
mpt delivery

long life motor Industrial coal mill air blower

Welcome To Henan Hengtong Blower CO.,LTD

Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, ventilation blower, cooling blower, high temperature blower, environmental protect blower etc were used in industrial and civil fields.

Application	Temperature	Normal temperature Air
	Air composition	Clean air
		Dusty air
		Corrosive gas
		Combustible gas
		Powder materials
		Light particle materials
Performance	Impeller diameter	400	~	3200	mm
	Speed of mainshaft	730	~	1450	rpm
	Pressure range	383	~	5500	Pa
		2.8725	~	41.25	mmHg
		39.08163265	~	561.2244898	mmH2O
	Flow range	5508	~	120000	m3/h
		9362.570117	~	203977.5625	CFM
System configuration	Motor	SIEMENS, ABB, LA…			Can assign
	Impeller	Carbon steel
	Impeller cone (Air Inlet)	Carbon steel
	Case	Carbon steel
	Air damper	Carbon steel
	Main shaft	High-strength carbon structural steel
	Bearing	FAG, SKF, ZWZ, C&U…
	Bearing housing	Cast iron
	Drivetrain	Coupling			Can assign
	Foundation bolt	Carbon steel

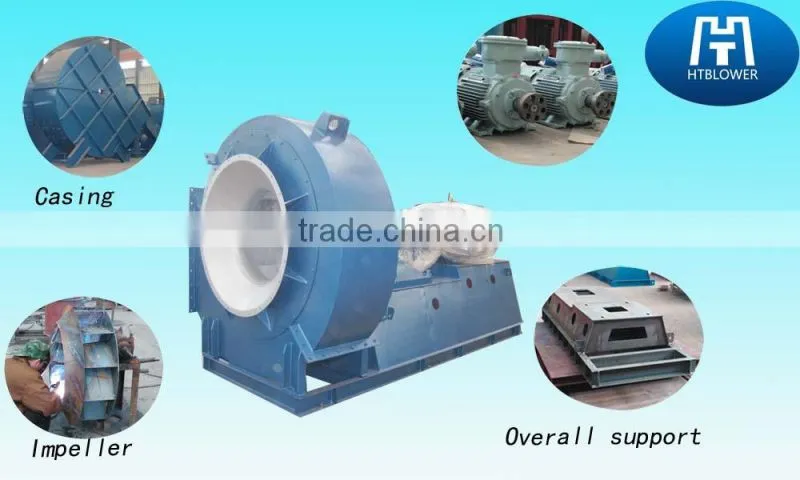

Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.

Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.

Overall support:Overall support is your installation is very simple and easy operation

Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.

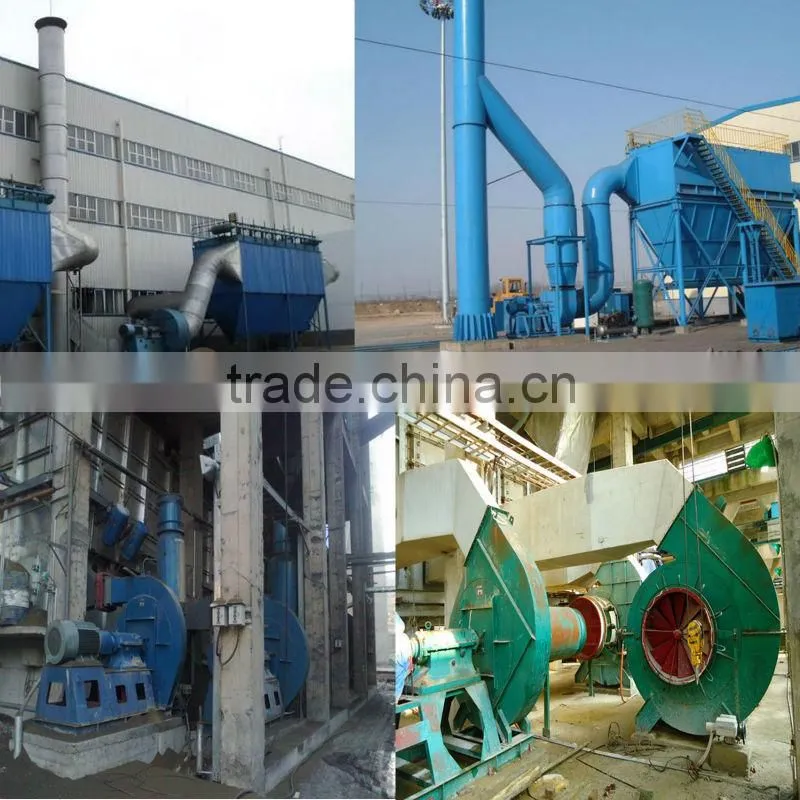

customer visitting

our blower export to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise.

If you are interested in our air blower ,Please don't hesitate to visit our website.

htblower.en.china.cn

We will give you a favorable price.

Company Profile

Henan Hengtong Blower Co., Ltd.

Henan Hengtong Blower Co., Ltd. is a manufacturer of industry blowers with well-equipped testing equipment and strong technical force.
Leading fan products are generally USES centrifugal fan, medium pressure centrifugal fan, high pressure centrifugal fan, high temperature fan, anticorrosive fan, flameproof fan, crops with ventilation fan and axial flow fan, etc., for 10000 tons per day of the dry process cement production lines supporting all kinds of centrifugal and axial flow fan, with an annual capacity of 2 million tons for the cement grinding station supporting all kinds of centrifugal and axial flow fan, for 300000 KWH power plant, the thermal power plant equipped with pulverized coal boiler and circulating fluidized bed boiler drum induced draft fan, for the iron and steel industry sintering machine equipped with sintering flue gas induced draft fan, dust removal fan, ring cooling fan for metallurgical industry of smithing cupola furnace, equipped with high pressure blower, for the new brick kiln waste heat recycling drying kiln equipped with special induced draft fan, for papermaking, textile, wood processing, food processing industry is equipped with all kinds of material conveying fan for various fan equipped with various types of noise, etc

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in steel factories, boiler factories, cement factories, paper mill factories and other industries.
