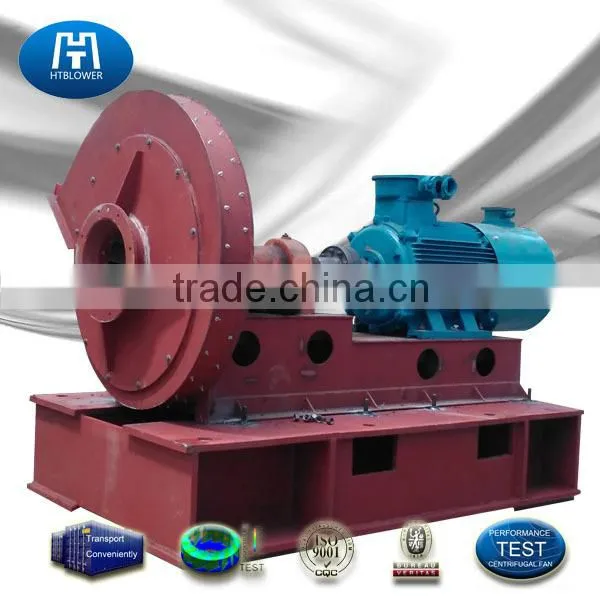

Anti-Explosion melting furnace centrifugal blower
Welcome To Henan Hengtong Blower CO.,LTD
Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, ventilation blower, cooling blower, high temperature blower, environmental protect blower etc were used in industrial
and civil fields.
Boiler System |
According to different applications, boiler system are used for generating steam and electric energy in many different industries. boiler system needs forced draft fans to offer combustion air ,at the same time, induced draft fan remove products of combustion and maintain the required draft. over-fire air fan, primary air and FGR fan are used to circulate gases to different parts of the system. Hengtong blower is a leading provider of pre-engineering and Anti-Explosion centrifugal blowers for boiler system. |
Burner System |
Hengtong is a leading provider of pre-engineering and heavy custom duty fans for burner system applications, burner system are widely used for heating and drying throughout various industries. our Anti-Explosion centrifugal blowers and blowers are constructed with abilities to supply long lasting quality and consistent airflow for high pressure and combustion air systems |
Forced Draft |
Forced draft fans typically provide positive pressure and to control pressure inside specific application. Specific pressures are maintained and controlled by both the forced draft fans and inlet or outlet dampers. Hengtong blowers are the most commonly used boiler systems, forced their way into the air so that the boiler efficiency. |
Aeration |
Aeration system usually involve the use of a fan or a blower to inject and move air through solids or liquids, various materials needs ventilations due to the changing environment ,hengtong blower fans are utilized in aeration system to supply air and remove wasted compounds in wasted-water system. our Anti-Explosion centrifugal blowers also provide moist and temperature control instorege and compositing applications. |
Pneumatic Conveying |
Hengtong blower provide a wide range of lines of air handing equipment for conveying powder and bulk solids. the bulk density of the materials such as food or metal must be determined with the purpose to convey materials by airflow, our fans are designed to produce high velocity air to carry materials from processing stage to the collection stage. fans and blowers are also used to conveying ,so as to provide extra cooling and aeration to the materials if needed. |
Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Overall support:Overall support is your installation is very simple and easy operation
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 960 | ~ | 2900 | rpm | |
| Pressure range | 2705 | ~ | 16250 | Pa | |
| 20 | ~ | 121 | mmHg | ||
| 276 | ~ | 1658 | mmH2O | ||
| Flow range | 2198 | ~ | 42409 | m3/h | |
| 3736 | ~ | 72087 | CFM | ||
| System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | Coupling | Can assign | |||
| Foundation bolt | Carbon steel | |
|||
Quality Assurance:
Hengtong's Quality Control programe is backed by a comprehensive Quality
Management System (ISO 9001:2000), deviced at the time of inception and
continuously upgraded. We have in place highly mechanised testing facilities,
with procedures laid out to the requirement standards. The test facilities in
place permit the flawless testing of the complete range of our products.
customer visitting
our blower export to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise.
If you are interested in our air blower ,Please don't hesitate to visit our website.
htblower.en.china.cn
We will give you a favorable price.
