Change Sleeve

Change Sleeve thumbnail-1
Change Sleeve photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
THL
Model Number:
273/274 Series
Contact Supplier Request Quote Chat Now
Shanghai THL Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name THL
Model Number 273/274 Series

Specifications

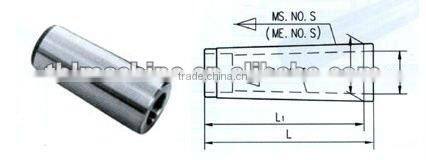

Change Sleeve

 Change Sleeve

Model
MS.NO.S
MS.NO.T
D(mm)
d(mm)
L(mm)
Wt(kg)
273-20-10
MS2
1
60
56
17.78
12.065
273-30-10
MS3
70
66
23.825
273-30-20
2
17.78
273-40-20
MS4
63.5
31.267
273-40-30
3
23.825
273-50-20
MS5
2
77
70.5
44.399
17.78
273-50-30
3
23.825
273-50-40
4
31.267
273-60-30
MS6
3
110
103.5
63.348
23.825
273-60-40
4
31.267
273-60-50
5
44.399
273-04-30
ME40
3
70
-
40
23.825
273-04-40
4
31.267
273-05-30
ME50
3
86
50
23.825
273-05-40
4
31.267
273-05-50
5
44.399
273-06-40
ME60
4
100
60
31.267
273-06-50
5
44.399
273-07-40
ME70
4
110
70
31.267
273-07-50
5
44.399
273-08-40
ME80
4
80
31.267
273-08-50
5
44.399
273-08-60
6
63.348
273-09-50
ME90
5
120
90
44.399
273-09-60
6
63.348

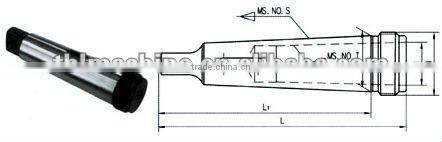

 Change Sleeve



Model
MS.NO.S
MS.NO.T
L
L1
D
d
M
Accuracy of
concentricity
274-2/1
2
1
95
75
17.78
12.065
M22×1.5
0.015
274-3/1
3
115
94
23.825
M28×1.5
0.02
274-3/2
2
17.78
274-4/1
4
1
137
117.5
31.267
12.065
M35×1.5
0.03
274-4/2
2
17.78
274-4/3
3
23.825
274-5/2
5
2
173
149.5
44.399
17.78
M48×1.5
0.04
274-5/3
3
23.825
274-5/4
4
31.267
274-6/3
6
3
240
210
63.348
23.825
M68×1.5
274-6/4
4
31.267
274-6/5
5
44.399
