7:24 Change Sleeve

7:24 Change Sleeve thumbnail-1
7:24 Change Sleeve photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
THL
Model Number:
ZZ Series
Contact Supplier Request Quote Chat Now
Shanghai THL Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name THL
Model Number ZZ Series

Specifications

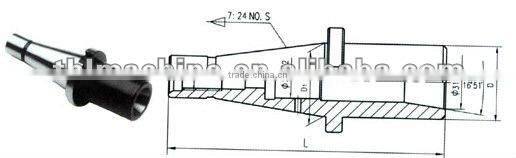

7:24 Change Sleeve



ZZ-00156 7:24 TO 7:24 Adapter

7:24 Change Sleeve

Model 7:24 NO.S 7:24 NO.T D(mm) D1(mm) d(mm) L(mm)
B40W-30 40 30 44.45 31.75 18 86
B50W-30 50 30 96.85 31.75 18 129.5
B50W-40 50 40 69.85 44.45 26 129.5



ZZ-00158 7:24 TO 7:24 Adapter (With Draw Bar)

7:24 Change Sleeve

Model 7:24 NO.S 7:24 NO.T M D(mm) d(mm) L(mm)
40-30 40 30 M16(5/8" -11) 44.45 31.75 152.4
50-30 50 30 M24(1" -18) 69.85 31.75 185.8
50-40 50 40 M24(1" -8) 69.85 44.45 207.8

Note draw bar thread M on your purchase



ZZ-00160 7:24/7:24 Adapter(Through Hole Type)

7:24 Change Sleeve

Model 7:24 NO.S 7:24 NO.T D1(mm) d(mm) d1(mm) L(mm)
40-30 40 30 44.45 31.75 16.5 152.4
40-40 40   44.45 204.4
50-30 50 30 69.85 31.75 24.5 185.8
50-40 40   44.45 207.8
50-50 50   69.85 260.8



ZZ-00162 7:24/7:24 Adapter

7:24 Change Sleeve

Model 7:24 NO.S 7:24 NO.T D1(mm) D(mm) L(mm)
40/30 40 30 44.45 31.75 110
50/30 50 69.85 145
50/40 40 44.45 145



ZZ-00164  7:24 to R8 Adapter

7:24 Change Sleeve

Model D1(mm) L(mm) M D
7:24 NO.S-R8
30-R8 31.75 180 M12(1/2"-13) 42
40-R8 44.45 167 M16(5/8"-11) 44.45
50-R8 69.85 175 M24(1"-8)
Note draw bar thread M on your purchase
