Specifications
1.high precision CNC lathe with good performance-price ratio.2. high grade cast iron bed,slant rails and high precision.

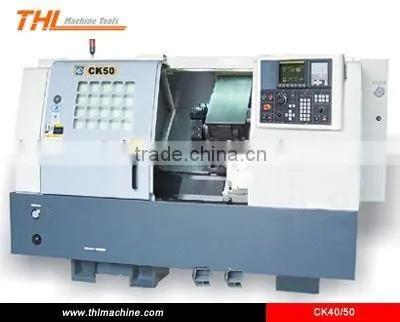

CNC Lathe machine is high precision CNC machines with good performance-price ratio.The high grade cast iron bed,slant rails and high precision cartridge type spindle are designed to damp vibration. The multi-station turret changes tools in the nearest path. Equipped with FANUC 0i mate,KND 1000T control system.The machines,with a new appearance,easy-operated panel and full enclosed protection,are suitable for finishing or semi-finishing medium or small type workpieces.
ITEMS |
UNIT |
CK40 |
CK50 |
|
Capacity |
Max.swing dia.over bed |
mm |
Φ400 |
Φ500 |
Max.swing dia.over carriage |
mm |
Φ260 |
Φ320 |
|
Recmd turning dia./length |
mm |
Φ165/400 |
Φ210/530 |
|
Max.turning length |
mm |
Φ285 |
Φ370 |
|
Max.bar diameter |
mm |
Φ42 |
Φ51 |
|
Spindle |
Hyd.chuck dia. |
mm |
Φ165 |
Φ210 |
Type of spindlen nose |
/ |
A2-5(GB/T5900.1) |
A2-6(GB/T5900.1 ) |
|
Spindle bore diameter |
mm |
Φ 57 |
Φ 62 |
|
Bearing dia.(front/rear) |
mm |
Φ90/Φ80 |
Φ100/Φ90 |
|
Spindle speed |
r/min |
70-3000 |
60-2250 |
|
Spindle motor power |
kW |
7.5 |
15 |
|
Tailstock |
Quill diameter/travel |
mm |
Φ70/80 |
Φ90/100 |
Quill taper |
MT No. |
4 |
5 |
|
Carriage |
Slant angle |
DEG |
45° |
45° |
X/Z travel |
mm |
165/410 |
210/550 |
|
X/Z rapid traverse rate |
m/min |
12/16 |
12/16 |
|
X/Z servo motor torque |
Nm |
11/20 |
11/20 |
|
X/Z ball screw dia. |
mm |
Φ28/Φ40 |
Φ28/Φ40 |
|
Turret |
Number of stations |
/ |
8/12 |
8/12 |
Tool Size(turning / boring) |
mm |
20×20/Φ32 |
25×25/Φ40 |
|
Others |
Power source |
kVA |
35 |
35 |
Dimensions(L×W×H) |
mm |
2540X1670X1660 |
3060X1810X1850 |
|
Gross weight |
kg |
3000 |
4500 |
|
Standard Equipment
1. FANUC 0i mate NC system
2. FANUC servo motors
3. Motor with freguency converter for spindle
4. Hydraulic chuck
5. 8-station turret
6. Coolant supply system
7. Lubrication system
8. Hydraulic power unit
9. Operation & maintenance manual
10. General tools
11. Mounting pads and leveling plates
Optional Equipment
12-station turret
