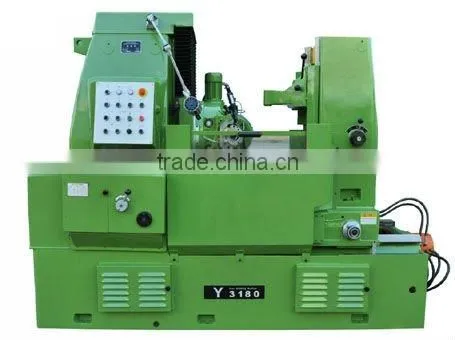

Gear Hobbing Machine

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Other

CNC or Not:

Normal

Shanghai THL Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other

CNC or Not Normal

Place of Origin China

Brand Name THL

Model Number Y3150/Y3180

Specifications

Gear Hobbing Machine

Item	Units	Y3150	Y3180
Maximum diameter of the workpiece(After the column without or with)	mm	500/500	800/550
Maximum modulus(castiron/steel)	mm	8/6	10/8
Max width	mm	350	500
Processing at least the number of teeth Z piece teeth/K Number of hob head	-	5	7
Maximum vertical turret slide travel	mm	430	530
Max swiveling angle of job rest	°	±45°	±45°
Distance between tool center and table surface(Max./Min.)	mm	235~665	235~765
Spindle taper	-	MT.5	MT.5
Allow the installation of the largest tool	mm	Φ180×180	Φ180×180
Maximum axial movement away from the hob	mm	180	180
Diameter of hob spindle can be changed	mm	22,27,32	27,32,40
Distance between tool center and table axis(Max./Min.)	mm	30~330	50~550
Hydraulic fast-moving distance of table	mm	50	50
Table diameter/Table hole diameter	mm	510/80	650/80
Series of spindle speed range	-	9	8
Spindle speed range	rpm	40~250	40~200
Range of axial feed	mm/rev	12-step 0.4~4	12-step 0.4~4
Main motor power/synchronous rotation	kw/rpm	4/1500	5.5/1500
Axial fast motor power/synchronous rotation	kw/rpm	1.1/1500
Table rapid motor power/synchronous rotation	kw/rpm		1.1/1000
Hydraulic pump motor power/synchronous rotation	kw/rpm	1.1/1500
Machine weight	kg	4500	5800
Machine overall dimension	mm	2440×1270×1920	2765×1420×2030
