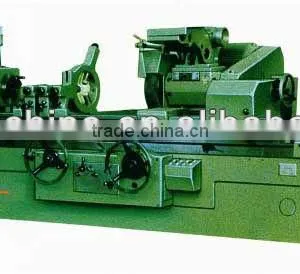

Cylindrical Grinder

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Cylindrical Grinding Machine

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Shanghai THL Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Cylindrical Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 500mm

Max. Grinding Length 3000mm

Place of Origin China

Brand Name THL

Model Number M1450B

Voltage 380V 50HZ

Power(W) 14.08KW

Dimension(L*W*H) 10240*2680*1560mm

Weight 11350kg

After-sales Service Provided Overseas service center available

Specifications

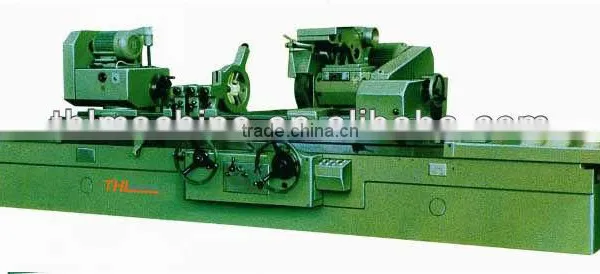

The grinding machine is suitable for grinding outer and inner cylinders, outer and inner cones, as well as axial end faces.

·M1450B Universal Cylindrical Grinder is an improved version renovated in design and structure from the basic M1450A.It operated under the control of electric and hydraulic systems or by manual intervention. It is suitable for grinding external and internal cylindrical surfaces of rotational parts in angle piece or small batch production.

·The table traverse is actuated hydraulically at infinitely variable speed or operated by hand. The rapid approach, withdrawal and the periodic micro infeed of the wheelhead are also effected through hydraulic means, in addition the latter can be manually operated in coarse or fine infeed mode. All the above power functions are accomplished by pushing buttons or levels activating electrics or hydraulics.

·The structure of headstock spindle employs a rolling clearance. It is suitable for grinding between centers or on chucks of various sizes. The headstock can be swiveled counter-clockwise within 90 degree and by swiveling either the headstock or worktable or wheelhead the external and internal surfaces of workpiece with different taper can be ground.

·The worktable and wheelhead guideways are hydro-statically lubricated. The grinding wheel spindle runs in a pair of partial journal bearings each of which consists of three tilting segmental shoes. The internal grinding attachment bracket on the wheelhead can be turned down for grinding internal parts and the attachment is supplied with several sets of internal grinding quills.

·Workpiece, external and internal grinding wheels, hydraulic pump and coolant pump all driven separately by individual motors.

·Each moving area in the grinder is controlled by electric and hydraulic interlocking mechanism. The external and internal wheel covers are strong and reliable, thus the grinder can be operated with ease and safety.

Main Specifications

Max. dia. To be ground (O.D./I.D.)	500/200mm
Max. workpiece length to be ground (O.D./I.D.)	1500, 2000,3000/320mm
piece weight to be ground	1000kg
Wheel size (O.D × W × I.D),(for cylinder)	Φ500×75×Φ305mm
Wheel spindle rotating speed	1330/665r/min
Internal grinding attachment rotating speed	10000,6000,4200,3000r/min
Center height	270mm
Max. worktable traverse	1500,2000,3000mm
Max. worktable speed	3m/min
Wheel peripheral speed	35m/s
Wheelhead rapid approach and withdrawal travel	100mm
Automatic infeed (coarse/fine)	0.02/0.0025mm
Manual microfeed (coarse/fine)	0.02/0.0025mm
Hydraulic pump capacity	17.3ml/r
Hydraulic pump pressure	6.3Mpa
Coolant ccapacity	50 l/min
Total motor power	14.08KW
Wheelhead motor power	5/7.5,(for outer circle grinding) 1.5kw,(for inner circle grinding)
Machine weight (net weight)	8600,9900,11350kg
Overall dimensions (L×W×H)	5320,6090,10240×2680×1560mm

Working Accuracy

Roundness(outer circle/inner circle)	1.5-2.5/2.5μm
Dia. Uniformity in the long. section	8/15μm
Surface roughness(outer circle/inner circle)	Ra0.16μm/ Ra0.63μm
