Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Drilling Milling Machine

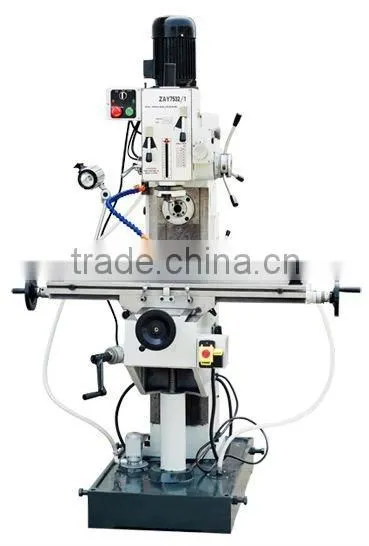

Drilling Milling Machine

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

China

Brand Name:

THL

Contact Supplier Request Quote Chat Now

Shanghai THL Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin China

Brand Name THL

Model Number ZAY7532/7540/7545

Type Vertical

CNC or Not Normal

Specifications

milling&drilling machine.

ITEM	ZAY7532/1	ZAY7540/1	ZAY7545/1	ZAY7550/1
Max.drilling capacity	32mm	40mm	45mm	50mm
Max.milling capacity(end/face)	25/100mm	32/100mm	32/100mm	32/100mm
Swivel angle of headstock(perpendicular)	±90°	±90°	±90°	±90°
spindle taper(end/face)	M.T.3 M.T.4	M.T.4	M.T.4	M.T.4
Distance from spindle nose to worktable surface	80-480mm	80-480mm	80-480mm	80-480mm
spindle travel	130mm	130mm	130mm	130mm
beam travel	500mm	500mm	500mm	500mm
step of spindle speed(end/face)	612	612	612	612
Range of spindle speed(end/face) 50HZ	90-1600 /38-1280 (r/min)	90-1600 /38-1280 (r/min)	90-1600 /38-1280 (r/min)	90-1600 /38-1280 (r/min)
60HZ (4 poles)	110-1920 /45-1540 (r/min)	110-1920 /45-1540 (r/min)	110-1920 /45-1540 (r/min)	110-1920 /45-1540 (r/min)
Step of spindle auto-feeding(end/face)	3	3	3	3
Range of spindle auto-feeding(end/face)	0.12 0.18 0.25	0.12 0.18 0.25	0.12 0.18 0.25	0.12 0.18 0.25
Worktable size	800×240mm	800×240mm	800×240mm	1000×240mm
Forward and afterward travel of worktable	300mm	300mm	300mm	300mm
Left anf right travel of worktable	585mm	585mm	585mm	785mm
Vertical travel of worktable	400mm	400mm	400mm	400mm
Min.distance from spindle axis to column	290mm	290mm	290mm	290mm
Power(end/face)	0.75KW(1HP)/1.5KW	1.1KW(1.5HP)/1.5KW	1.5KW(2HP)/1.5KW	1.5KW(2HP)/1.5KW
Voltage/Frequency	As customer's requirement	As customer's requirement	As customer's requirement	As customer's requirement
Cooling pump power	0.04KW	0.04KW	0.04KW	0.04KW
Net weight/Gross weight	930kg/1030kg	933kg/1033kg	935kg/1035kg	950kg/1050kg
Packing size	1020×1350×1850mm	1020×1350×1850mm	1020×1350×1850mm	1220×1350×1850mm
Loading amount	8pcs/20'container	8pcs/20'container	8pcs/20'container	4pcs/20'container
