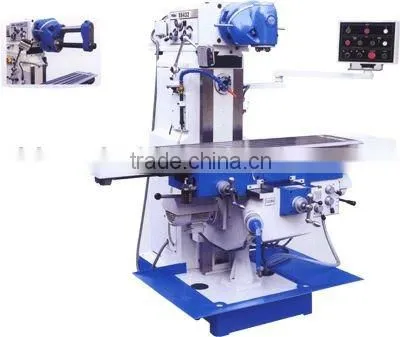

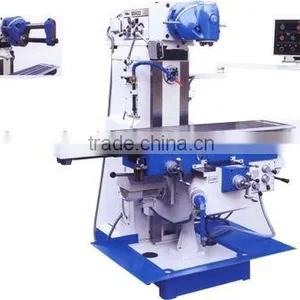

Universal Swivel Head Milling Machine
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
THL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
China
Brand Name
THL
Model Number
X6432
Type
Universal
CNC or Not
Normal
Specifications
Universal swivel head milling machine.Model X6432 : Swivel head when horizontal milling
Universal swivel head milling machine.
Model X6432 : Swivel head when horizontal milling
Specification |
Unit |
X6432 |
Table size |
mm |
1320×320 |
Table travel |
mm |
1000×300 |
Number/Width/Distance of T-slot |
mm |
5-14-63 |
Spindle taper |
|
ISO40 |
Distance between spindle axis to table surface |
mm |
0-440 |
Spindle speeds range(steps) |
rpm |
45-1660(V),40-1300(H) |
table power feed speed range in longitudinal,cross and vertical direction |
mm/min |
22-420(X);22-393(Y); |
10-168(Z) | ||
Swivel angle of table |
° |
±35° |
Swivel angle of swivel head |
° |
360° |
Ram travel |
mm |
500 |
Spindle motor power |
kw |
3 |
Overall dimension(l×w×h) |
mm |
2020×1710×1994 |
