Help CenterChina Vibration Damper for Overhead Power Lines/cables
Related Products
Specifications
1.Aluminium alloy body and keeper2.cast iron counter
3.hot dip galvanized to avoid electricity loss
4.simple installation

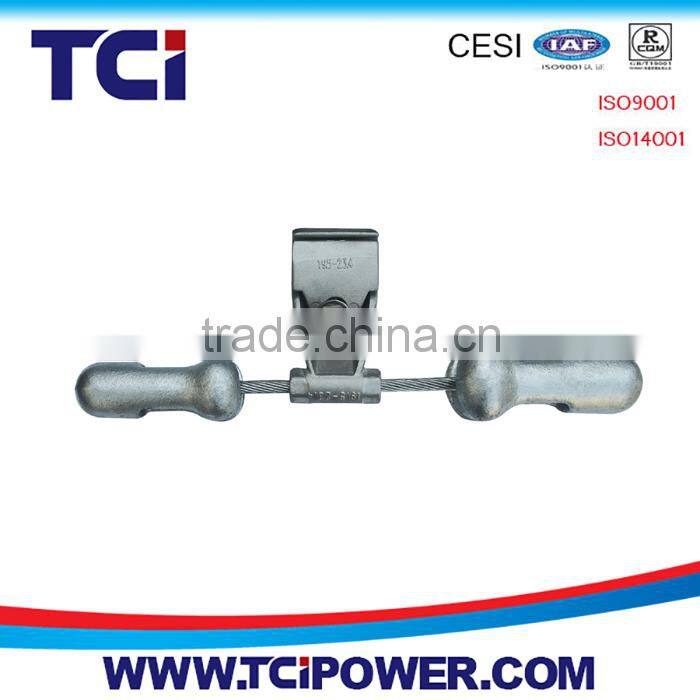

China Vibration Damper for overhead power lines/cables
Vibration damper is commonly seen on power transmission lines. Those vibration dampers are used to reduce damages caused by natural wind by adjusting cables's natural frequency.
The vibration damper's body and keeper is made of aluminium alloy which save much weight and can reduce electricity loss during its usage.The counter weights are made of cast iron with hot dip galvanized.
We also have rubber vibration damper with material of PVC.That type of vibration damper is spiral vibaration damper,which is different from this iron vibration damper.

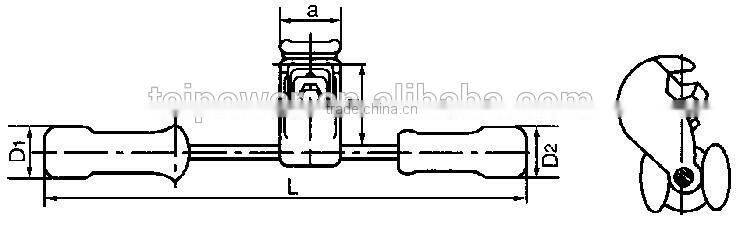

Drawing and main parameters:
|
Catalog No. |
Suitable Conductor, dia.(mm) |
Dimensions (mm) |
Weight (Kg) |
||||
|
|
L |
D1 |
D2 |
h |
a |
|
FR-1 |
7~12 |
429 |
48 |
48 |
81 |
50 |
2.7 |
FR-2 |
11~22 |
429 |
48 |
48 |
81 |
50 |
2.7 |
FR-3 |
18~28 |
505 |
57 |
57 |
91 |
60 |
5.1 |
FR-4 |
23~36 |
550 |
64 |
64 |
97 |
60 |
7.5 |
FR-9 |
38~44 |
770 |
84 |
84 |
97 |
60 |
14.9 |
Packaging:
Factory and products:
Certificated by ISO 9001 and ISO 14001:
Test report and third party test reports:
Dalian tucheng International Co., Ltd(TCI)
Business covering: manufacturing and exporting insulators, power fittings, bushings, cables and accessoies for power transmission lines and substation.
In addition to supplying high-quality products to our customers, we also provide superior technical assistance and services to meet their vorious needs. Our relable quality, competitive prices and good business practices have enabled us to establish successful businss relationships with comanies from over 20 countries around the world.
Our main international markets:
Supply records:
Some customers visit us:
If you can cooperate with us,we will be honored
Our professional service before and after sale.
The reasonable price.
Any questions from you are welcome and will be replied in 24 hours.
