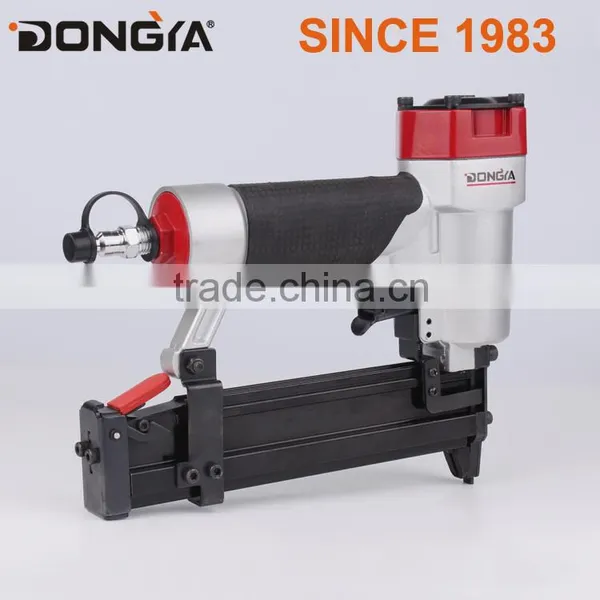

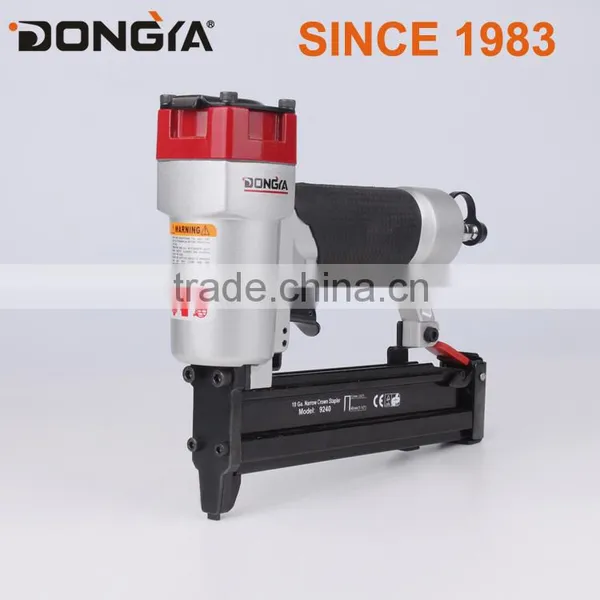

1-1/2'' Medium Wire Narrow Crown Stapler(air Nailer,pneumatic Gun)
US$ 16 - 18
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DONGYA
Model Number:
9240-GB305
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
18 Gauge 1-1/4' 2-in-1 Combi Tool of Brad Nailer / Stapler F32/9032US$ 1 - 30MOQ: 500 Pieces -
18 Gauge 2'' Brad Nailer(pneumatic Tool,are Gun)US$ 1 - 20MOQ: 500 Pieces
-
18 Gauge 2'' Brad Nailer F50NegotiableMOQ: 500 Pieces
-
18 Gauge 1-1/4" Brad Nailer(air Nailer,pneumatic Tool)US$ 13 - 15MOQ: 100 Pieces
-
Shoe Air NailerUS$ 1 - 100MOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
DONGYA
Model Number
9240-GB305
Type
Air Stapler
Power Source
Pneumatic
Capacity
100 Staples
Samples please purchase from our Ali express shop: /store/101301
Product Description

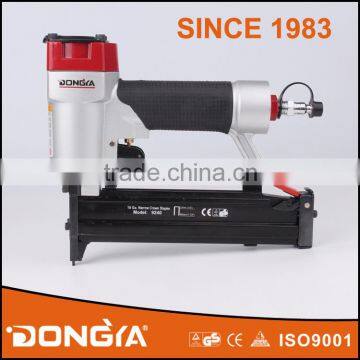

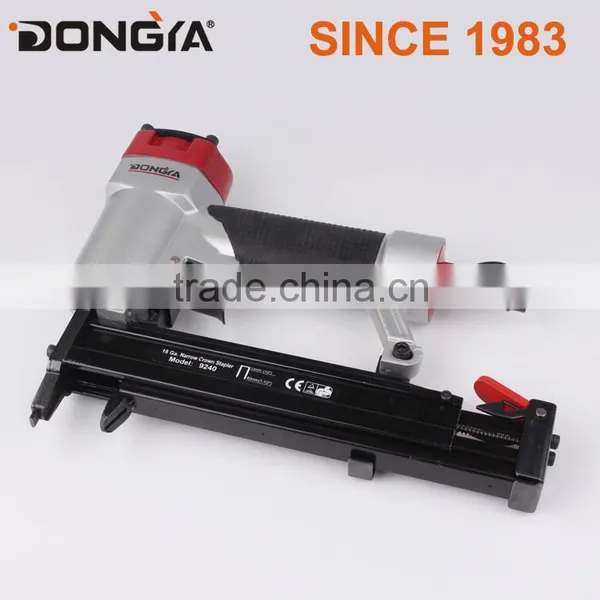

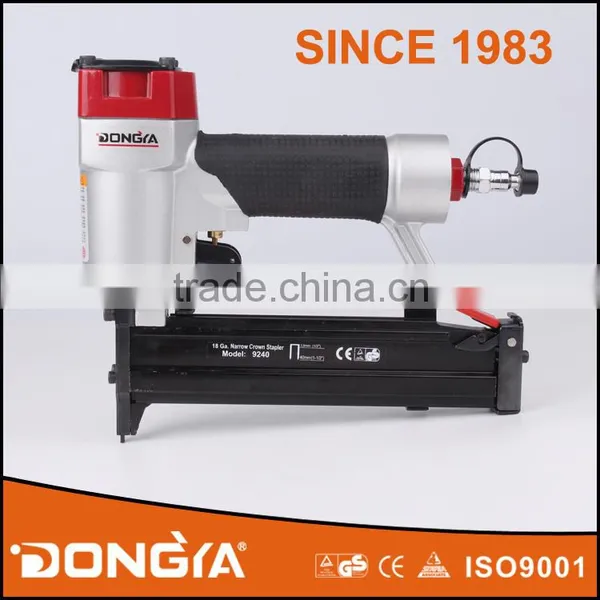

18 Ga Mrdium Crown Stapler 9240
30 Year Production Experience
Industry's Leading Factory
Taiwan Engineer With 30 Years Experiences In Nail Gun Industry
Taiwan Spare Parts
|

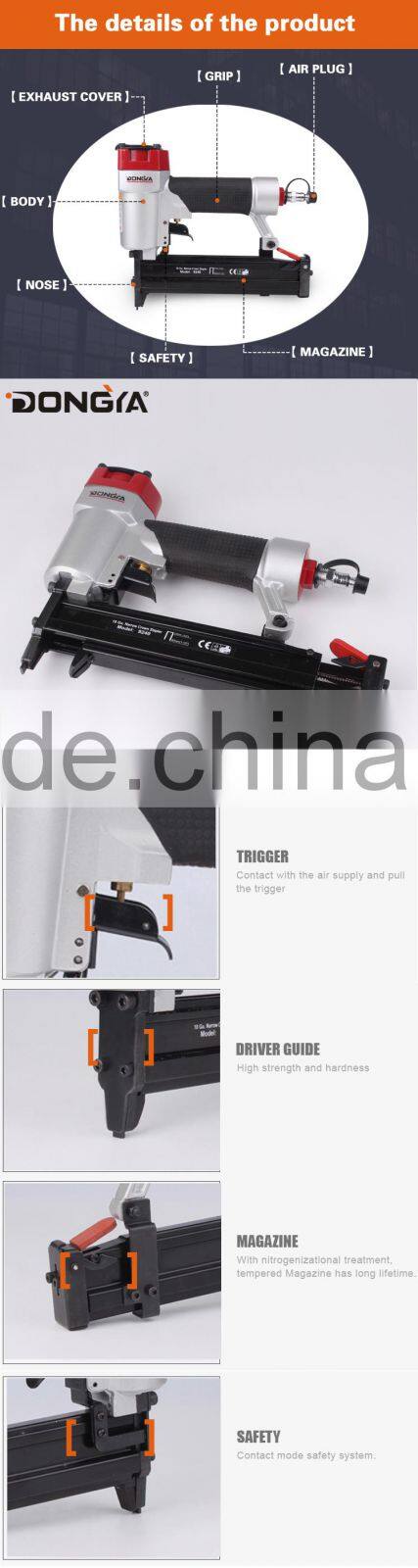

FEATURE • "Contact mode" safety system • Light die cast body of aluminum alloy • Bottom loading design • Remain nails display available • Non-marring tip available |
|
18 Ga Mrdium Crown Stapler 9240 Parameters
| Tool Diamensions: | 240x55x220mm (9.45X2.17X8.66in.) |
| Net Tool Weight: | 1.30kgs (2.86lbs) |
| Operate Pressure: | 4~7Kg/cm (60~100Psi) |
| Load Capacity: | 100 Staples |

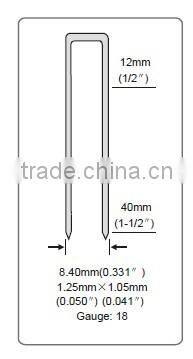

| Staple Crown: | 8.40mm(0.331" ) |
| Staple Length : | 12~40mm(1/2" ~1-1/2" ) |
| Staple Thickness : | 18 Gauge 1.25x1.05mm(0.050 ” x 0.041”) |
18 Ga Mrdium Crown Stapler 9240 Advantage
1. 300000 working times
2. CE and ISO9001 international certificate
3. Easily broken parts are imported from Taiwan
4. 100% Spare parts can be supplied to you.
5. Very powerful for hard wood

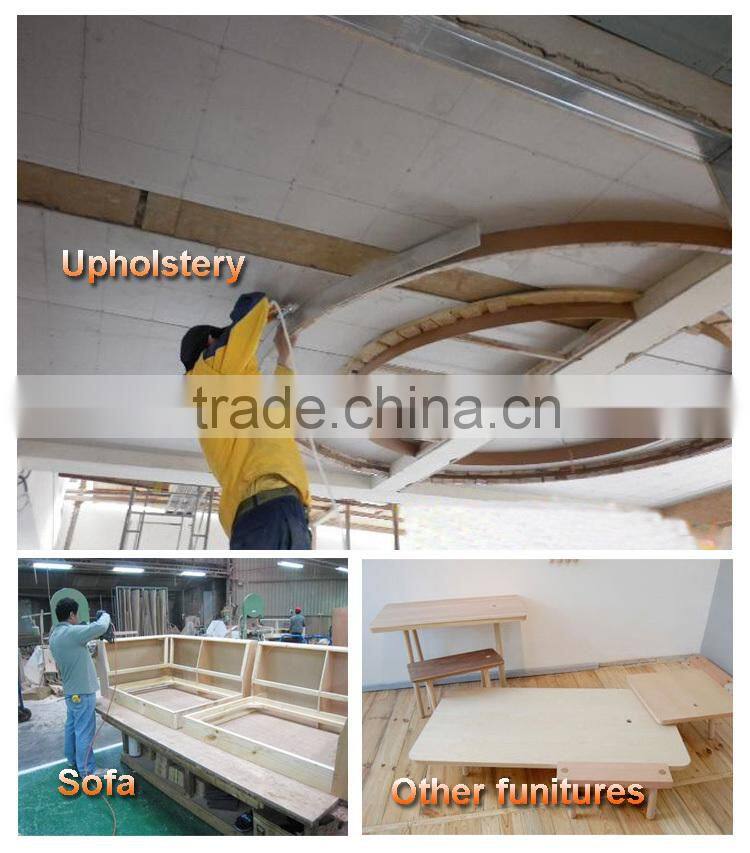

MAIN APPLICATION FOR 18 Ga Mrdium Crown Stapler 9240
Packaging & Shipping
Service and Repars
SERVICE AND REPAIRS
| No. | Symptom | Problems | Solutions | |
| 1.1 | Air Leak | Air leak in the cylinder cap when tools don't work | 1.Loose head valve piston seal or o-rings . | Check and replace the head valve piston set |
| 2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap | Check and replace o-ring or cylinder cap gasket under the cylinder cap | |||
| 1.2 | Air leak in Trigger area when tools don't work | 1.Damaged o-ring in trigger valve | Check and replace o-ring | |
| 2.Damaged o-ring in trigger valve stem | Check and replace o-ring | |||
| 3.Dirt in the trigger valve | Check and clean the trigger valve | |||
| 1.3 | Air leak in cylinder cap when tools are working | 1.Damaged head valve piston o-rings | Check and replace o-rings | |
| 2.Damaged seal under cylinder cap | Check and replace seal | |||
| 1.4 | Air leak in nose when tools are working | 1.Worn or damaged bumper | Check and replace bumper | |
| 2.Loose driver(piston unit) thread | Check and replace driver(piston unit) | |||
| 1.5 | Air leak in Trigger area when tools are working | 1.Worn or damaged trigger valve head | Check and replace trigger valve head | |
| 2.Damaged head valve piston o-rings | Check and replace head valve piston o-rings | |||
| 2 | Failed to get driver(piston unit) back to the correct position completely. | 1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled. | Straighten the driver(piston unit) or verify driver guide(nose) and magazine | |
| 2.Worn or damaged nozzle | Check and replace nozzle | |||
| 3.The space between piston o-ring and cylinder is too tight. | Check if the cylinder is adequate lubrication or replace the o-ring on the piston. | |||
| 3 | Work weakly and sluggishly | 1. Worn or damaged piston o-ring | Check and replace piston o-ring | |
| 2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings | Place 2 or 6 drops of oil on o-rings or replace head valve piston o-rings | |||
| 3.Dirt in the nozzle | Check and clean the nozzle | |||
| 4 | Tool jams frequently | 1.Damaged or Worn driver (piston unit) | Check and replace driver (piston unit) | |
| 2.Damaged or Worn driver guide (nose) | Check and replace driver guide (nose) | |||
| 3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too big | Check and replace driver guide cover | |||
| 5 | Nail can not be shot | 1. Driver (piston unit) can't return to the correct position. | Refer to no. 1 Symptom | |
| 2.Driver guide(nose) can not match magazine well | Check and correct the position between driver guide(nose) and magazine | |||
| 3.Worn or damaged nail pusher compression spring | Check and replace nail pusher compression spring | |||
Company Information
WHY CHOOSE US?
1) 30 Years Production Experience
2) 13 Years Alibaba Gold supplier with High Reputation
3) Alibaba Trade Assurance USD30,000
4) 100% QC Inspection before Shipment
5) Engineer Team from Taiwan
6) Competitive Price
7) Lifelong After-Sale Service
8) Advanced Machines
9) CE Certificate and ISO 9001:2008
10) OEM Available
11) Sample Available
