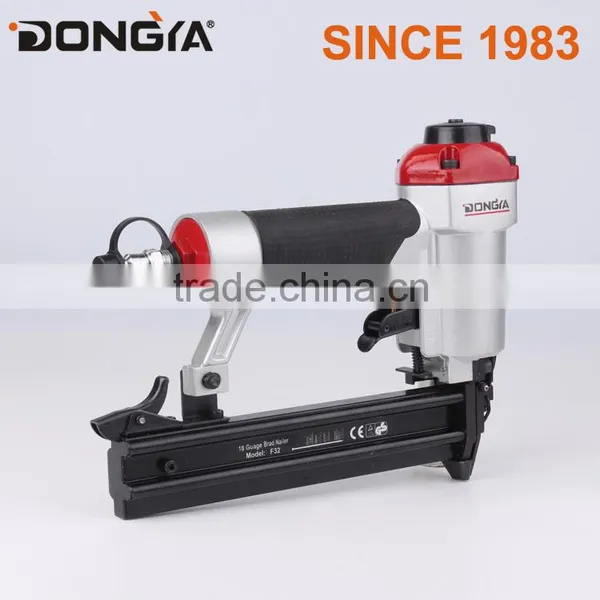

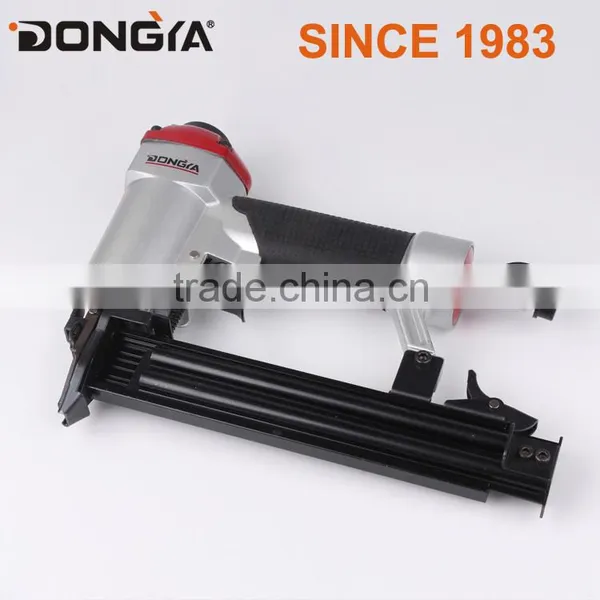

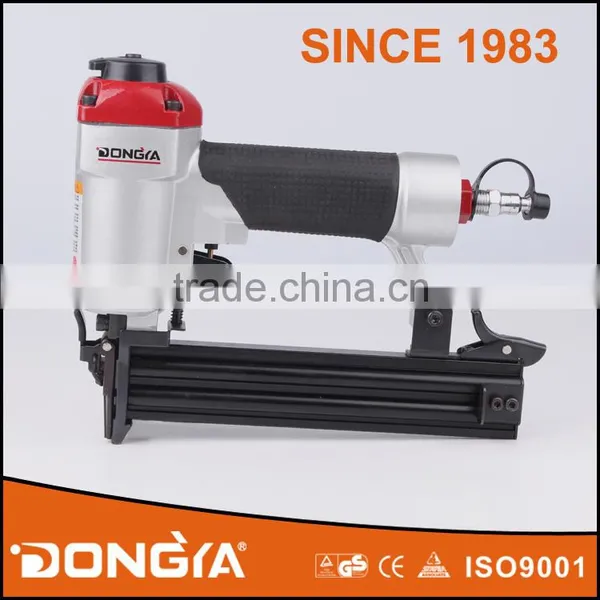

18 Gauge 1-1/4" Brad Nailer(air Nailer,pneumatic Tool)
US$ 13 - 15
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dongya
Model Number:
F32-CB101
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
Dongya
Model Number
F32-CB101
Type
Brad Nail Gun
Power Source
Pneumatic
Capacity
100
Brad Nailer

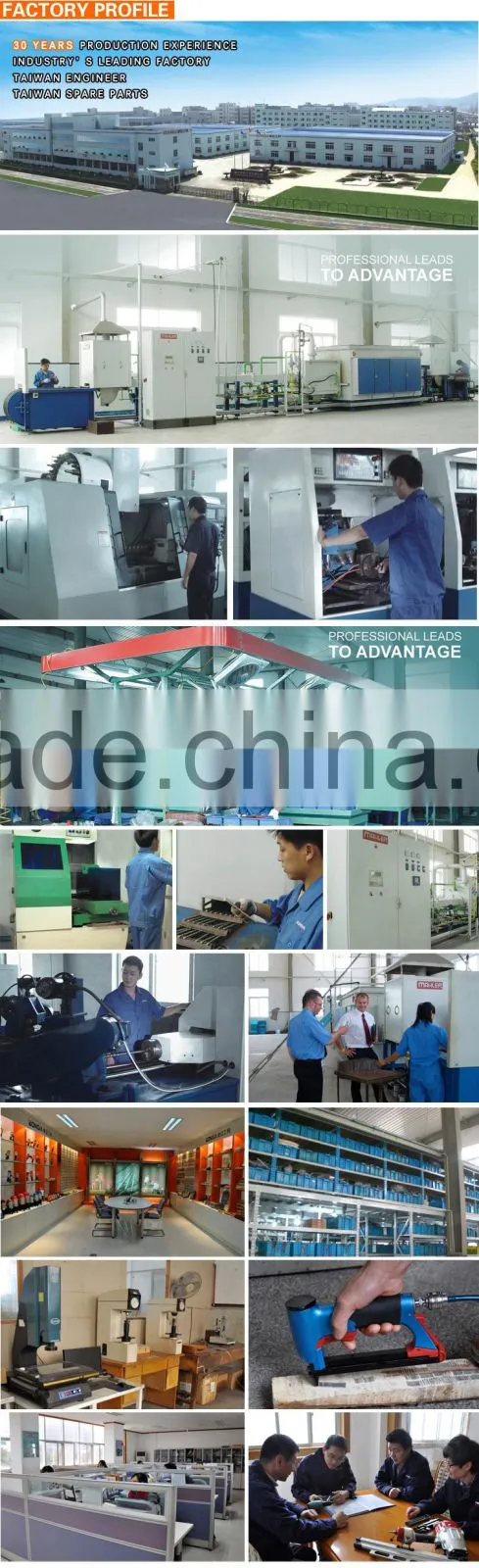

30 Year Production Experience
Industry's Leading Factory
Taiwan Engineer With 30 Years Experiences In Nail Gun Industry
Taiwan Spare Parts
Brad Nailer SPECIFICATION
|

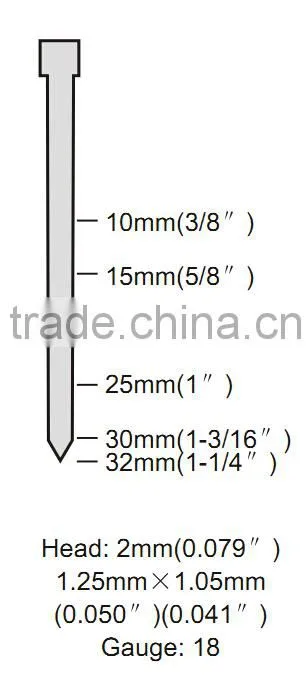

FEATURE • "Contact mode" safety system • Light die cast body of aluminum alloy • Side loading system • Remain nail display available • Nail Size: 1.25mm x 1.05mm • Nail Length: From 10mm to 32mm
|
|
| Tool Diamensions: | 250x55x205mm (9.84x2.17x8.07 in.) |
| Net Tool Weight: | 1.16kgs (2.55 lbs) |
| Operate Pressure: | 4~7Kg/cm (60~100Psi) |
| Load Capacity: | 100 Nails |
Brad Nailer ADVANTAGE
1. 500000 working times
2. 30 years production experience
3. 100% Spare parts can be supplied to you.
4. Very powerful for hard wood
MAIN APPLICATION FOR Brad Nailer
SERVICE AND REPAIRS
| No. | Symptom | Problems | Solutions | |
| 1.1 | Air Leak | Air leak in the cylinder cap when tools don't work | 1.Loose head valve piston seal or o-rings . | Check and replace the head valve piston set |
| 2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap | Check and replace o-ring or cylinder cap gasket under the cylinder cap | |||
| 1.2 | Air leak in Trigger area when tools don't work | 1.Damaged o-ring in trigger valve | Check and replace o-ring | |
| 2.Damaged o-ring in trigger valve stem | Check and replace o-ring | |||
| 3.Dirt in the trigger valve | Check and clean the trigger valve | |||
| 1.3 | Air leak in cylinder cap when tools are working | 1.Damaged head valve piston o-rings | Check and replace o-rings | |
| 2.Damaged seal under cylinder cap | Check and replace seal | |||
| 1.4 | Air leak in nose when tools are working | 1.Worn or damaged bumper | Check and replace bumper | |
| 2.Loose driver(piston unit) thread | Check and replace driver(piston unit) | |||
| 1.5 | Air leak in Trigger area when tools are working | 1.Worn or damaged trigger valve head | Check and replace trigger valve head | |
| 2.Damaged head valve piston o-rings | Check and replace head valve piston o-rings | |||
| 2 | Failed to get driver(piston unit) back to the correct position completely. | 1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled. | Straighten the driver(piston unit) or verify driver guide(nose) and magazine | |
| 2.Worn or damaged nozzle | Check and replace nozzle | |||
| 3.The space between piston o-ring and cylinder is too tight. | Check if the cylinder is adequate lubrication or replace the o-ring on the piston. | |||
| 3 | Work weakly and sluggishly | 1. Worn or damaged piston o-ring | Check and replace piston o-ring | |
| 2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings | Place 2 or 6 drops of oil on o-rings or replace head valve piston o-rings | |||
| 3.Dirt in the nozzle | Check and clean the nozzle | |||
| 4 | Tool jams frequently | 1.Damaged or Worn driver (piston unit) | Check and replace driver (piston unit) | |
| 2.Damaged or Worn driver guide (nose) | Check and replace driver guide (nose) | |||
| 3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too big | Check and replace driver guide cover | |||
| 5 | Nail can not be shot | 1. Driver (piston unit) can't return to the correct position. | Refer to no. 1 Symptom | |
| 2.Driver guide(nose) can not match magazine well | Check and correct the position between driver guide(nose) and magazine | |||
| 3.Worn or damaged nail pusher compression spring | Check and replace nail pusher compression spring | |||
WHY CHOOSE US?
1) 30 Years Production Experience
2) 13 Years Alibaba Gold supplier with High Reputation
3) Alibaba Trade Assurance USD30,000.
4) 100% QC Inspection before Shipment
5) Engineer Team from Taiwan
6) Competitive Price
7) Lifelong After-Sale Service
8) Advanced Machines
9) CE Certificate and ISO 9001:2008
10) OEM Available
11) Sample Available
|
|
|
|
|
|
