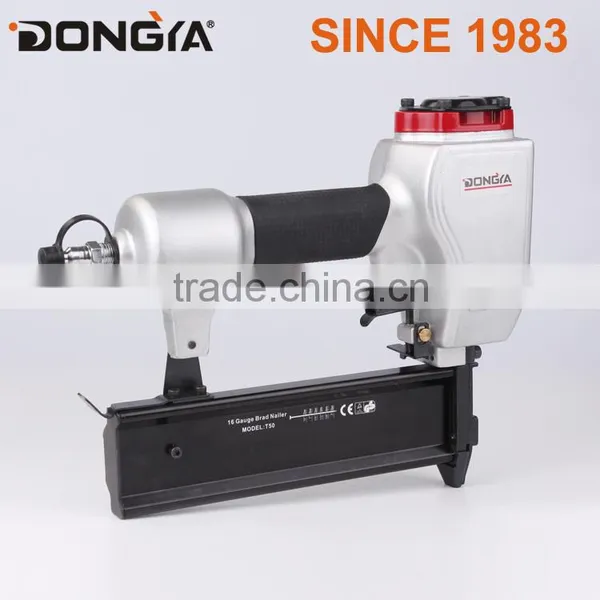

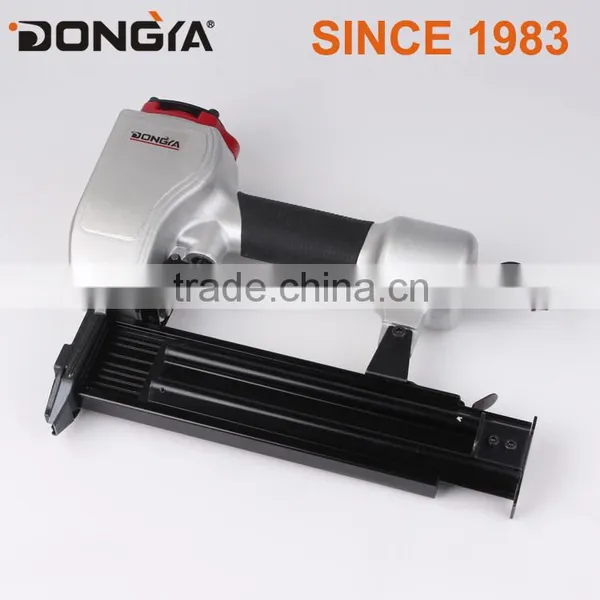

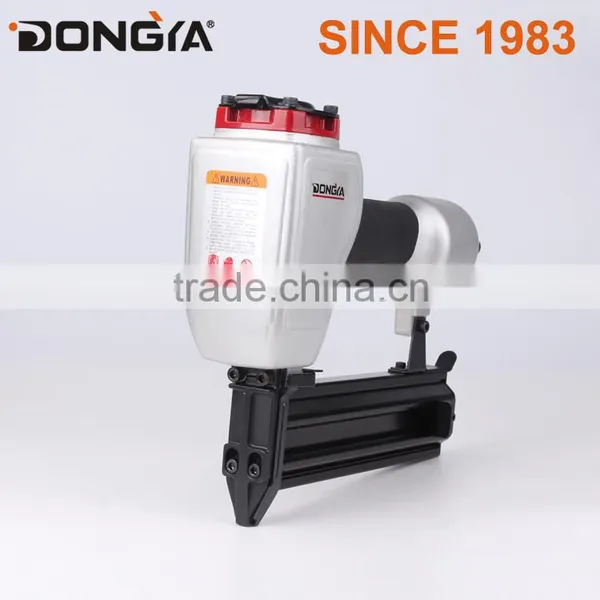

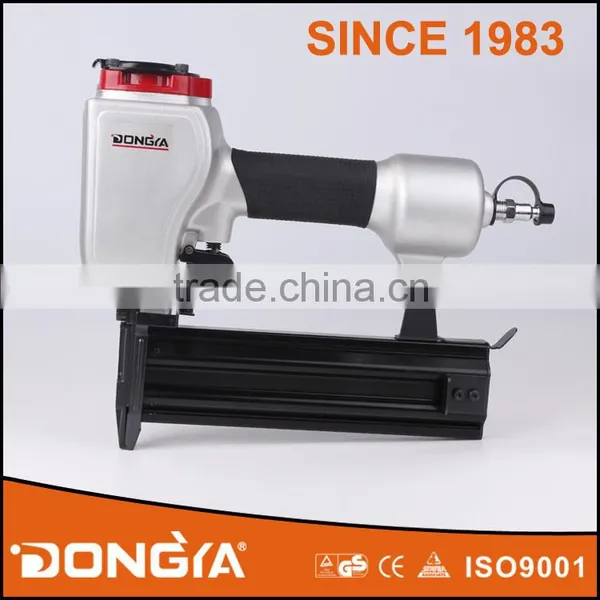

16 Gauge 2" Brad Nailer(air Tool,pneumatic Gun)
US$ 27 - 30
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DONGYA
Model Number:
T50-GD201
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
23 Gauge 1" Headless Pin Nailer P625NegotiableMOQ: 500 Pieces -
18 Ga. 1" Narrow Crown Air Stapler (9025)NegotiableMOQ: 500 Pieces
-
1-1/2'' Medium Wire Narrow Crown Stapler(air Nailer,pneumatic Gun)US$ 16 - 18MOQ: 100 Pieces
-
18 Gauge 1-1/4' 2-in-1 Combi Tool of Brad Nailer / Stapler F32/9032US$ 1 - 30MOQ: 500 Pieces
-
18 Gauge 2'' Brad Nailer(pneumatic Tool,are Gun)US$ 1 - 20MOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
DONGYA
Model Number
T50-GD201
Type
Brad Nail Gun
Power Source
Pneumatic
Capacity
100 Nails
Samples please purchase from our Ali express shop: /store/101301
Product Description
Pneumatic nail gun
30 Year Production Experience
Industry's Leading Factory
Taiwan Engineer With 30 Years Experiences In Nail Gun Industry
Taiwan Spare Parts

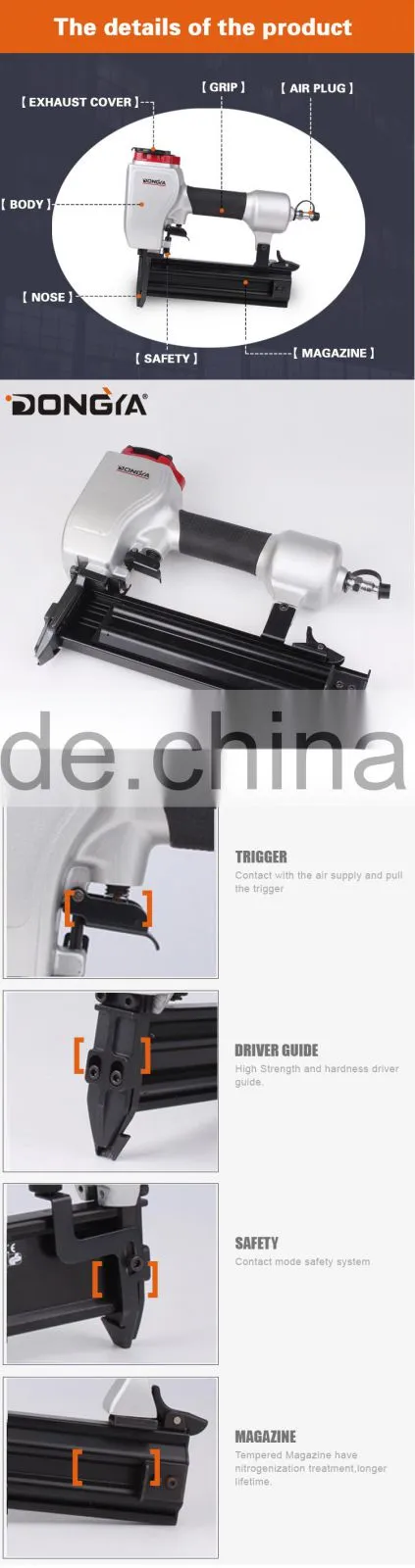

Pneumatic nail gun SPECIFICATION
|
FEATURE
• "Contact mode" safety system • "Partial Sequential mode" safety system • Gravity cast body of aluminum alloy • Side loading system
|
|
Pneumatic nail gun PARAMETERS
| Tool Diamensions: | 298x72x260mm (11.73x2.83x10.32 in.) |
| Net Tool Weight: | 2.00kgs (4.40 lbs) |
| Operate Pressure: | 5~7.5Kg/cm (75~110Psi) |
| Load Capacity: | 100 Nails |
| Nail Length: | 15-50mm(0.591-2.000") |
| Nail Diamensions: | 1.6x1.4mm(0.063x0.055") |
| Nail Cap Diamensions: | 3.0mm(0.118") |
Pneumatic nail gun ADVANTAGE
1. 300000 working times
2. Easily broken parts are imported from Taiwan
3. 100% Spare parts can be supplied to you.
4. Very powerful for hard wood
MAIN APPLICATION FOR Pneumatic nail gun
Packaging & Shipping
Service and Repars
SERVICE AND REPAIRS
| No. | Symptom | Problems | Solutions | |
| 1.1 | Air Leak | Air leak in the cylinder cap when tools don't work | 1.Loose head valve piston seal or o-rings . | Check and replace the head valve piston set |
| 2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap | Check and replace o-ring or cylinder cap gasket under the cylinder cap | |||
| 1.2 | Air leak in Trigger area when tools don't work | 1.Damaged o-ring in trigger valve | Check and replace o-ring | |
| 2.Damaged o-ring in trigger valve stem | Check and replace o-ring | |||
| 3.Dirt in the trigger valve | Check and clean the trigger valve | |||
| 1.3 | Air leak in cylinder cap when tools are working | 1.Damaged head valve piston o-rings | Check and replace o-rings | |
| 2.Damaged seal under cylinder cap | Check and replace seal | |||
| 1.4 | Air leak in nose when tools are working | 1.Worn or damaged bumper | Check and replace bumper | |
| 2.Loose driver(piston unit) thread | Check and replace driver(piston unit) | |||
| 1.5 | Air leak in Trigger area when tools are working | 1.Worn or damaged trigger valve head | Check and replace trigger valve head | |
| 2.Damaged head valve piston o-rings | Check and replace head valve piston o-rings | |||
| 2 | Failed to get driver(piston unit) back to the correct position completely. | 1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled. | Straighten the driver(piston unit) or verify driver guide(nose) and magazine | |
| 2.Worn or damaged nozzle | Check and replace nozzle | |||
| 3.The space between piston o-ring and cylinder is too tight. | Check if the cylinder is adequate lubrication or replace the o-ring on the piston. | |||
| 3 | Work weakly and sluggishly | 1. Worn or damaged piston o-ring | Check and replace piston o-ring | |
| 2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings | Place 2 or 6 drops of oil on o-rings or replace head valve piston o-rings | |||
| 3.Dirt in the nozzle | Check and clean the nozzle | |||
| 4 | Tool jams frequently | 1.Damaged or Worn driver (piston unit) | Check and replace driver (piston unit) | |
| 2.Damaged or Worn driver guide (nose) | Check and replace driver guide (nose) | |||
| 3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too big | Check and replace driver guide cover | |||
| 5 | Nail can not be shot | 1. Driver (piston unit) can't return to the correct position. | Refer to no. 1 Symptom | |
| 2.Driver guide(nose) can not match magazine well | Check and correct the position between driver guide(nose) and magazine | |||
| 3.Worn or damaged nail pusher compression spring | Check and replace nail pusher compression spring | |||
