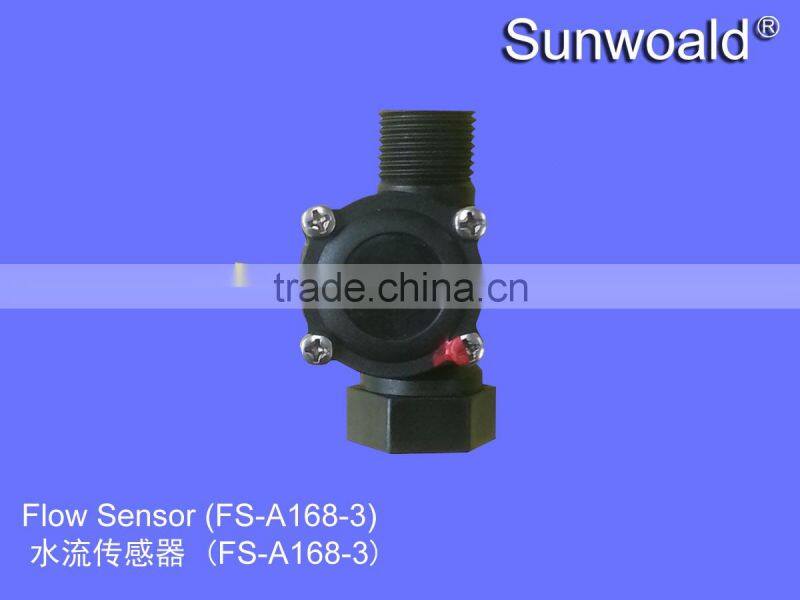

Plastic Water Flow Rate Sensor for Tank or Pump
- SHENZHEN
 - T/T L/C Credit Card

You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Shen Zhen Sunwoald | |
| Model Number | FS-A168-3 | Media Type | Liquid | |
| Operating Temperature | -40~+150°C | Flow Rate | 1~30L/min |
Product Description
Specifications
Plastic Water Flow Sensor1.Material: PA66+30%Glass
2.Flow Pulse:F=7.5Q-3 Q=L/min
3.Precision: 1~30L/min
4.MOQ:50pcs
FS-A168-3 Plastic Water Flow Sensor
Electrical Characteristic:
- Suffering Pressure: 1.5Mpa
 - Operate Temperature: -40~+150°C
 - Min insulation Resistance: 100M ohm
 - Precision: 1~30L/min(Max)
 - Flow Pulse: F=7.5Q-3 Q=L/min
 - Mounting Position: Vertical or Horizontal

Technical Characteristic:
- Output Pulse Duty Cycle: 50% ± 10%
 - Max Output Pulse Voltage: >DC4.7V (Input Votage:DC5V)
 - Min Output Pulse Voltage : <DC0.5V( Input Votage:DC5V)
 - Electrical Life: 1x107 (5Vdc, 10mA)
 - Body Material: PA66+30%Glass Black

Switch Characteristic  | Physical Characteristic  |
1. Suffering Pressure: 1.5Mpa  | 1. Output Pulse Duty Cycle: 50% ± 10%  |
2. Operate Temperature: -40~+150°C  | 2. Max Output Pulse Voltage: >DC4.7V (Input Votage:DC5V)  |
3.Min insulation Resistance: 100M ohm  | 3.Min Output Pulse Voltage : <DC0.5V( Input Votage:DC5V)  |
4. Precision: 1~30L/min(Max)  | 4. Electrical Life: 1x107 (5Vdc, 10mA)  |
5. Flow Pulse: F=7.5Q-3 Q=L/min  | 5.Body Material: PA66+30%Glass Black  |
6.Mounting Position: Vertical or Horizontal  |
  |
