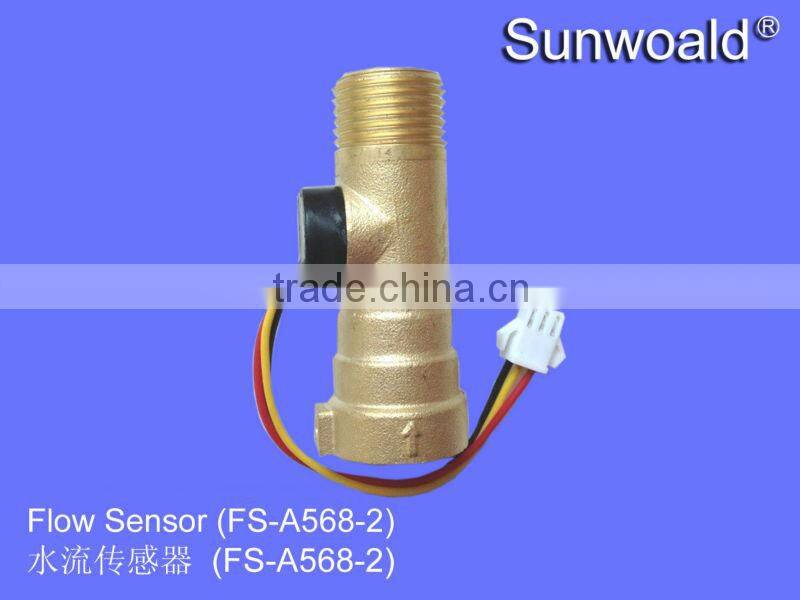

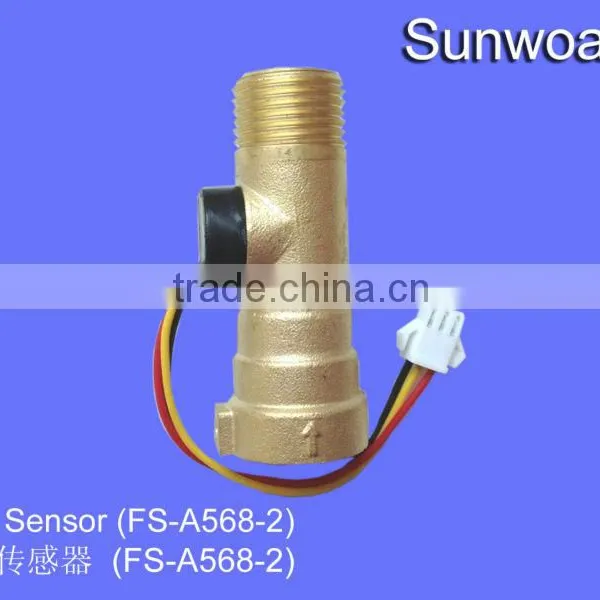

FS-A568-2 Magnetic Water Hall Flow Sensor
Electrical Characteristic:
- Suffering Pressure: 1.5Mpa
- Operate Temperature: -40~+150°C
- Min insulation Resistance: 100M ohm
- Precision: 1~30L/min(Max)
- Flow Pulse: F=7.5Q-3 Q=L/min
- Mounting Position: Vertical or Horizontal
Technical Characteristic:
- Output Pulse Duty Cycle: 50% ± 10%
- Max Output Pulse Voltage: >DC4.7V (Input Votage:DC5V)
- Min Output Pulse Voltage : <DC0.5V( Input Votage:DC5V)
- Electrical Life: 1x107 (5Vdc, 10mA)
- Body Material: Brass Golden
Switch Characteristic | Physical Characteristic |
1. Suffering Pressure: 1.5Mpa | 1. Output Pulse Duty Cycle: 50% ± 10% |
2. Operate Temperature: -40~+150°C | 2. Max Output Pulse Voltage: >DC4.7V (Input Votage:DC5V) |
3.Min insulation Resistance: 100M ohm | 3.Min Output Pulse Voltage : <DC0.5V( Input Votage:DC5V) |
4. Precision: 1~30L/min(Max) | 4. Electrical Life: 1x107 (5Vdc, 10mA) |
5. Flow Pulse: F=7.5Q-3 Q=L/min | 5.Body Material: Brass Golden |
6.Mounting Position: Vertical or Horizontal |
|
About us :
Shenzhen Sunwoald Electronics Co., Ltd. was established in 2006, and is engaged in the development, production, sale and services of proximity switches, flow switches, door magnetic switches, magnetic reed relays and infrared sensors.
Our products are widely applied in home appliances, automobiles, machinery, electronics, communication equipment, metallurgy, power generation, shipbuilding, petrochemical, food, waste water/water purification processing, pharmaceutical, chemical, steel, mining, oil equipment, temperature monitoring, boilers, large air-conditioning and other industries. We can meet the demands of users in different environment. Our products have many kinds of specifications, we also accept customized orders, and we are pursuing perfect in every detail, relying on sophisticated technology.
Excellent service system helps us respond quickly to customers. Single product can not bring our customers real benefits. Our company provides one-stop service. We have a new factory, advanced processing equipment, a modern design center, efficient technical service institutions and internationally advanced testing equipment. Our company has strict quality tracking and service management systems, and have gained the ISO9000 certificate in August, 2011.
Our company is committed to market development and promotion, till now, we have developed the North America, South America, the European Union, the Middle East, South Korea and Japan markets, our products are with excellent quality and competitive prices, they have gained good sales at home and abroad, we now the steady supplier of Unilever, Duravit, etc. famous 500 Top company in the world.
Based on the "excellent quality, competitive price, fast delivery, perfect service, customer satisfaction" policy and making full use of advanced technology and quality management, we have confidence in the areas of sensors.

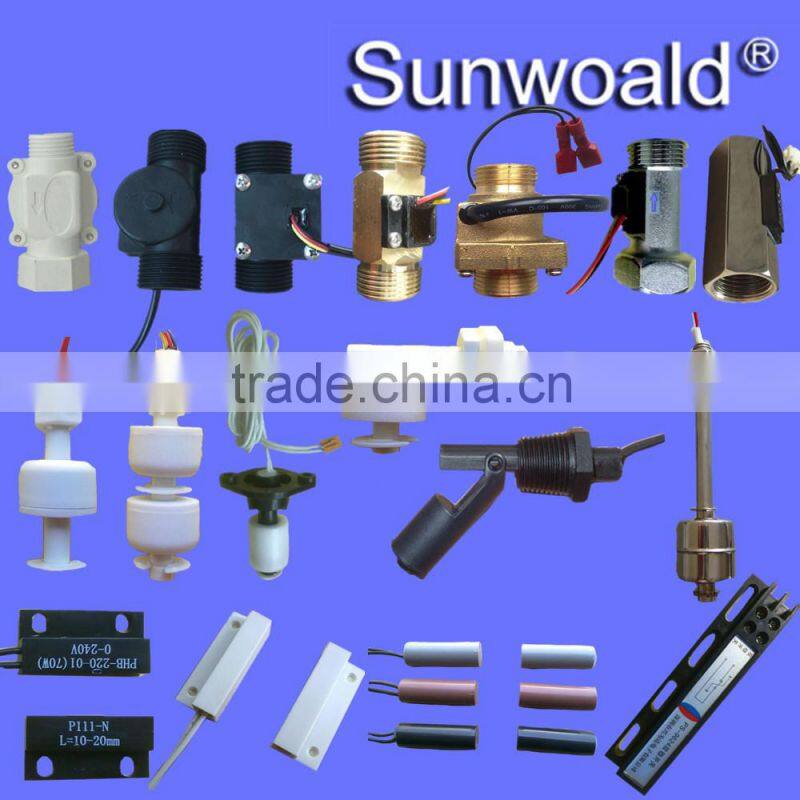

Our company has developed many kinds of magnetic door contact switch, float level switch, water flow switch, magnetic susceptibility temperature switches, magnetic reed relays, optical sensor, the temperature sensor, and various types of foaming float, safety equipment and other products up to more than 100 types, and with the constant expansion of market at home and abroad, we will continuously introduce more and better products for different users in the future.
We are willing to work with all friends in the world and hand in hand to create a wonderful tomorrow.
--------
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
