Specifications
1,testing voltage:1-800V2,Voltage accuracy:0.5% set value+0.2V
3,measurement range:LC:0.001uA-20.00mA;IR0.01k-99.99G

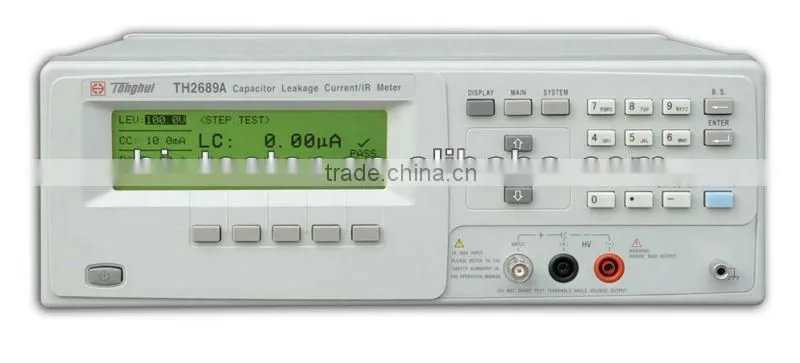

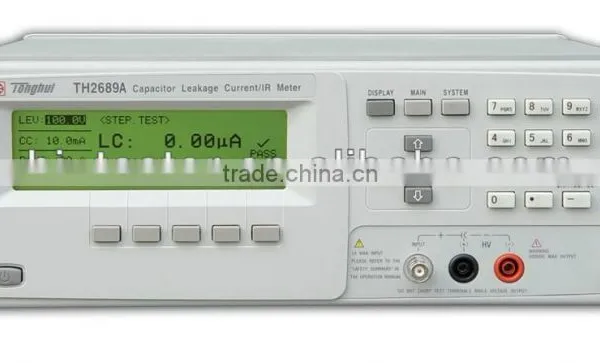

TH2689Capacitor leakage current/insulation resistance tester
Performance characteristics
Capacitor leakage current (LC) test function
Aluminum foil pressure and rise time test function
Large current (500 ma) improve the low voltage large capacitor charging...
TH2689 1.0 V to 800 V...
Open reset (null) to eliminate residual base number
Comparator function, achieve qualified/no qualified sorting
With standard RS232 interface, Handler joint...
Humanized interface
Insulation resistance (IR) test function
Precision low constant current charging function (0.5 mA ± 0...
The test voltage continuous adjustable, real-time monitoring of the output voltage...
UA 0.001 ~ 20.00 mA measurement...
There were digital timer
Provide 10 group instrument state for storage/call
Large LCD (240 x 64 lattice) display
Easy to use computer interface (choose)
Brief description:
TH2689 is a fast and accurate capacitor leakage current/insulation resistance tester, and times/second fastest test speed, good performance and affordable price for our customers to provide the best choice. TH2689 provide maximum test voltage: 800 v, charging current 0.5 mA ~ 500.0 mA (> 100 v by the maximum output power fifty w limit). Mainly used in capacitor leakage current, insulation resistance and aluminum electrolytic capacitor anode aluminum foil withstand voltage test. Also can be used varistors, zener diode, neon tube action such as voltage recognition and leakage current test. The Handler with standard interface, and a stable and fast measurement, can achieve rapid separation effect. With the standard RS232 interface, can choose and buy GPIB interface, and at the same time can provide universal RS232 software to meet your communication with the computer, construct the needs of the automatic test system. The instrument can be accept SCPI (programmable process standard of instrument command) command, to ensure the communication software compatibility.
Product type |
TH2689 |
Leakage Tester | |
testing voltage |
1V-800V |
Voltage accuracy |
Voltage accuracy: (0.5% set value+0.2V) |
charge current |
Test voltage 100 v or less, 0.5 mA - 500 mA; |
measurement range |
LC:0.001uA~20.00mA |
Current Accuracy |
LC:±(0.3%+0.05uA) |
charging time |
0~999s manual control manual |
sorting |
Qualified, unqualified, alarm Settings |
testing speed |
FAST:53ms |
