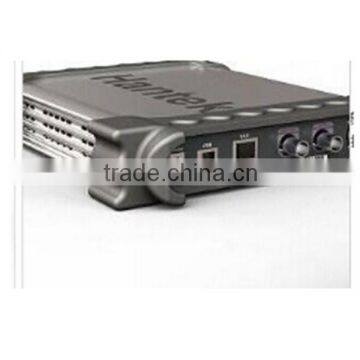

Help CenterHantek DSO3064 Virtual Oscilloscope,Vehicle Maintenance Oscilloscope
Related Products
-
DS203 Minidso Oscilloscope, Pocketscope,Mini OscilloscopeUS$ 1 - 170MOQ: 1 Piece -
Nameplate Marking Machine,number Plate Marking MachineUS$ 1 - 300MOQ: 1 Set
-
DHH Pulse AR5 Metal Detctor,gold DetectorUS$ 1 - 1,500MOQ: 1 Piece
-
40X Mini Magnifying Glass With LED,magnifying GlassNegotiableMOQ: 20 Pieces
-
100X Mini Magnifying Glass With LEDUS$ 1 - 30MOQ: 10 Sets
Feature:
4 Channels and EXT trigger, 60MHz Bandwidth.
200MS/s real-time sampling rate, 10k--16M memory depth per Channel.
Frequency Counter,FFT spectrum analysis.
8--36V Wide range of input voltage,suitable for vehicle power test.
USB 2.0 interface plug and play, LAN and WIFI optional.
More than 20 kinds of automatic measurement function,PASS/FAIL Check function, is suitable for engineering application.
Excellent industrial design, similar interface with bench oscilloscope ,Easy to use.
Software support : Windows NT, Windows 2000, Windows XP ,VISTA,Windows 7 ,
Supply DEMO code (VC,VB,LABVIEW) and technical support.
Specification
SPECIFICATIONS |
DSO3064 |
|
VERTICAL |
Analog Channels |
4 |
Bandwidth |
60MHz(-3dB) |
|
Rise Time |
5.8ns |
|
Input Impedance |
Resistance: 1M? ; Capacitance: 25 pF |
|
Input Sensitivity |
10mV/div to 5V/div |
|
Input Coupling |
AC/DC/GND |
|
Vertical Resolution |
8 bits |
|
Memory Depth |
10K-16M/CH |
|
Maximum Input |
400V (DC+AC Peak) |
|
HORIZONTAL |
Real-Time Sampling Rate |
200MS/s |
Time Base Range |
5ns/div to 1000s/div(1-2-5 sequences) |
|
Time Base Precision |
±50ppm |
|
TRIGGER |
Source |
CH1, CH2,CH3,CH4,EXT |
Mode |
Edge,Pulse,Viedo,Alternative |
|
X-Y MODE |
X-Axis Input |
CH1 |
Y-Axis Input |
CH2 |
|
Phrase Shift |
Max.3 degree |
|
CURSORS AND MEASUREMENT |
Voltage Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot |
Time Measurement |
Frequency,Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
|
Cursors Measurement |
Horizontal ,Vertical, Track, Auto Measure Modes |
|
Waveform Signal Process |
+,- , x,÷, FFT, Invert |
|
AUTO SET |
|
yes |
VOLTAGE RANGE |
|
10mV to 5V/div @ x 1 probe |
100mV to 50V/div @ x 10 probe | ||
1V to 500V/div @ x 100 probe | ||
10V to 5000V/div @ x 1000 probe | ||
100V to 50000V/div @ x 10000 probe | ||
200mV to 100V/div @ 20:1 | ||
CURRENT RANGE |
|
CC65(20A),CC65(60A),CC650,CC1100 |
CORSOR |
|
Time/frequency difference, voltage difference |
FFT |
|
Rectangular,Hanning,Hamming,Blackman Window |
MATH |
|
Adition,subtraction,multiplication,division |
INTERFACE |
|
USB 2.0(Lan ,WIFI Optional) |
POWER SOURCE |
|
8--36V Wide range of input voltage,suitable for vehicle power test |
MECHANICS |
|
255 x 190 x 45 (mm) |
Dimension |
1Kg |
|
Weight |
AC/DC/GND |
|
Software:
Operating system: Windows 2000, Windows XP ,VISTA,Windows 7
SecondDesign:
Supply DEMO code (VC,VB,LABVIEW) and technical support.
