Hantek DSO5102B 2 Channels Digital Storage Oscilloscope 100MHz 1GSa/s

Name: Hantek DSO5102B 2 Channels Digital Storage Oscilloscope 100MHz 1GSa/s
Brand: Hantek
SKU: 113696191

Hantek DSO5102B 2 Channels Digital Storage Oscilloscope 100MHz 1GSa/s thumbnail-1

Hantek DSO5102B 2 Channels Digital Storage Oscilloscope 100MHz 1GSa/s thumbnail-2

Hantek DSO5102B 2 Channels Digital Storage Oscilloscope 100MHz 1GSa/s thumbnail-3

Hantek DSO5102B 2 Channels Digital Storage Oscilloscope 100MHz 1GSa/s thumbnail-4

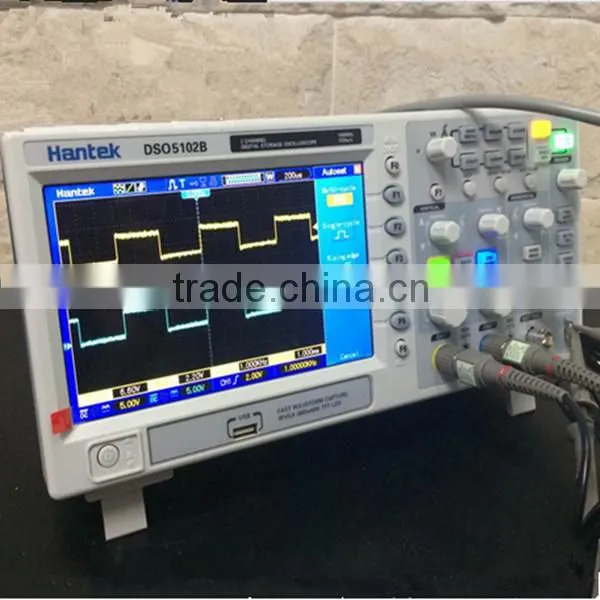

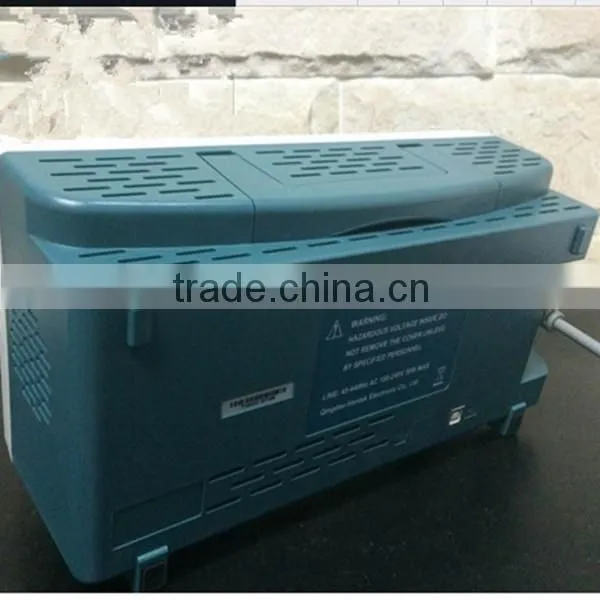

Hantek DSO5102B 2 Channels Digital Storage Oscilloscope 100MHz 1GSa/s photo-1

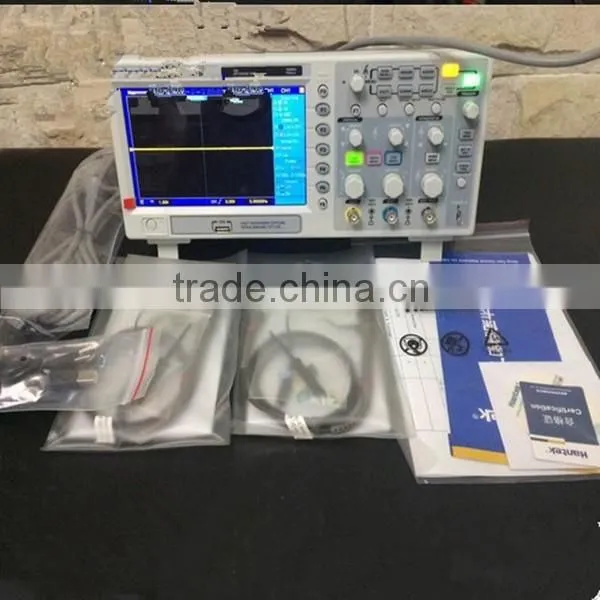

Hantek DSO5102B 2 Channels Digital Storage Oscilloscope 100MHz 1GSa/s photo-2

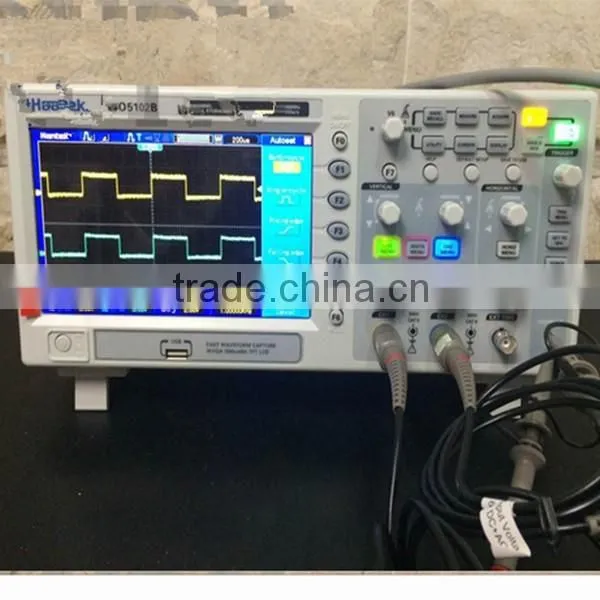

Hantek DSO5102B 2 Channels Digital Storage Oscilloscope 100MHz 1GSa/s photo-3

Hantek DSO5102B 2 Channels Digital Storage Oscilloscope 100MHz 1GSa/s photo-4

US$ 1 - 450 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Hantek

Model Number:

DSO5102B

Contact Supplier Request Quote Chat Now

Shenzhen Pantai Precise Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Hantek

Model Number DSO5102B

Feature:

Model	DSO5202B	DSO5102B	DSO5062B
Bandwidth	200MHz	100MHz	60MHz
Real-time Sample Rate	1GSa/s
Equivalent Sample Rate	25GSa/s
Record Length(Sample Points)	Single-channel: Maximum 1M; Dual-channel:Maximum 512K (4K,16K,40K optional)
SEC/DIV Range	4nS/div-40S/div (in a 2, 4, 8 sequence)
Delay Time Accuracy	500ps
Vertical
A/D Converter	8-bit resolution, each channel sampled simultaneously
VOLTS/DIV Range	2mV/div~5V/div at input BNC
Position Range	50V(5V/div),40V(2V/div~500mV/div),2V(200mV/div~50mV/div)400mV(20mV/div~2mV/div)
Bandwidth Limit	20MHz
Rise Time at BNC	1.7ns	3.5ns	5.8ns
DC Gain Accuracy	4% for Sample or Average acquisition mode, 5mV/div to 2mV/div 3% for Sample or Average acquisition mode, 5V/div to 10mV/div
Trigger
Trigger Sensitivity (Edge Trigger Type)	DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full EXT(Typical) 200mV from DC to 40MHz EXT/5(Typical) 1V from DC to 40MHz AC: Attenuates signals below 10Hz HF Reject: Attenuates signals above 80kHz LF Reject: Attenuates signals below 150kHz Noise Reject: Reduces trigger sensitivity
Trigger Level Range	CH1,CH2: 8 divisions from center of screen EXT: 1.2V EXT/5: 6V
Trigger Level Accuracy, typical (Accuracy is for signals having rise and fall times 20ns)	CH1,CH2: (0.3div x V/div) (within 4divisions from center of screen) EXT: (6% of setting + 40mV) EXT/5: (6% of setting + 200mV)
Holdoff Range	100ns-10s
Trigger Type
Edge	Trigger on the rising or falling edge
Pulse Width	Trigger (when >,<,=,not=) on positive or negative pulses Pulse Width Range: 20ns-10s
Video	Trigger on an NTSC, PAL, or SECAM standard video signal Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)
Slope	Trigger (when >,<,=,not=) on a positive or negative slope Set Time: 20ns~10s
Overtime	from the rising or falling edge Set Time: 20-10s
Alternate	Internal trigger on edge, pulse width, video or slope
Measurement
Cursors	Manual: The difference between voltage cursors V; the difference between time cursors T; 1/T calculated by Hz. Tracing: The voltage and time at a waveform point
Automatic	Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width
Display
Type	Right angle 7" TFT 16-digit color LCD
Resolution	800*480 dots
Contrast	16 gears, with the progress bar to show adjustment
Interface	USB host and USB slave
Power Supply
Voltage	100-120VACRMS(10%),45Hz to 440Hz,CAT 2 120-240VACRMS(10%),45Hz to 66Hz,CAT 2
Power	below 30W
Fuse	2A, T rating, 250V
Mechanical
Size	Length: 313mm Width: 108mm Height: 142mm
Weight	2.08KG (exclusive of packing and accessories)
