SDS7102 Digital Storage Oscilloscope

SDS7102 Digital Storage Oscilloscope thumbnail-1
SDS7102 Digital Storage Oscilloscope photo-1
US$ 1 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PT
Model Number:
SDS7102
Contact Supplier Request Quote Chat Now
Shenzhen Pantai Precise Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PT
Model Number SDS7102

Specifications

1.PC Oscilloscope support battery
2.Smart design with easy workplace
3.10M record length for each channel



Packaging & Shipping



Feature:






Product Description





PC  Oscilloscope Features:
1.PC Oscilloscope support 10M record length with highest 1GS/s sample rate
2.AutoScale function to simplify the operation
3.Smart design body with easy workplace
4.Come with SVGA port to enlarge waveform display
5. 8 inch high definition TFT display (800 x 600 pixels)
6.Super capacity lithium battery for optional.
7.Smart design body
8.Power switch, plug connector
9.Lithium battery


Application:

Design and Debug      Circuit function test      Mixed signal circuit test
Identified signals logic information     Education & Training



Model

SDS7102( PC oscilloscope)

Bandwidth

100MHz

Sample rate(Real time)

1GS/s

Horizontal Scale(S/div)

2ns/div~100s/div, step by 1~2~5

Rise time (at input, typical)

≤3.5ns

Channels

2 + 1 (External)

Display

8" color LCD, TFT display , 800*600 pixels, 65535 colors

Input impedance

1MΩ±2%,in parallel with 15pF±5pF

channels Isolation

50Hz: 100 : 1, 10MHz: 40 : 1

Max. input voltage

400V (PK-PK) (DC + AC PK-PK)

DC gain accuracy

±3%

DC accuracy(Average)

Average≥16:±(3% reading+0.05div) for V

Probe attenuation factor

1X,10X,100X,1000X

LF respond(AC, -3dB)

≥5Hz(at input, AC coupling, -3dB)

Record length

Max.10M points for each channel

Sampling rate/relay time accuracy

±100ppm

Interpolation

(sin x)/x

Interval(T) accuracy(full bandwidth)

Single: ±(1 interval time+100ppm×reading+0.6ns) Average>16:±(1 interval time+100ppm×reading+0.4ns)

Input coupling

DC, AC , Ground

Vertical resolution (A/D)

8 bits resolution (2 Channels simultaneously)

Vertical sensitivity

2mV/div~10V/div(at input)

Trigger type

Edge, Pulse, Video, Slope, Alternate

Trigger mode

Auto, Normal, Single

Trigger level

±6 divisions from screen center

Acquisition modes

Sample, Peak Detect and Average

Line/field frequency(Video)

Support standard NTSC,PAL and SECAM broadcast systems

Cursor measurement

V and T between cursors

Automatic measurement

Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot,Pre-shoot,Rise time,

Fall time, +Width, -Width, +Duty, -Duty, Delay A B ,Delay A B

Waveform Math

+, -, ×, ÷, FFT

Waveform storage

15 waveforms

Lissajou’s figure

Bandwidth

Full bandwidth

Phase difference

±3 degrees

Communication interface

USB, Support USB Flash Disk Storage, Pass/Fail

Cymometer

Available

Power supply

100V-240V AC, 50/60Hz, CAT

Power consumption

<18W

Fuse

1A, T class, 250V

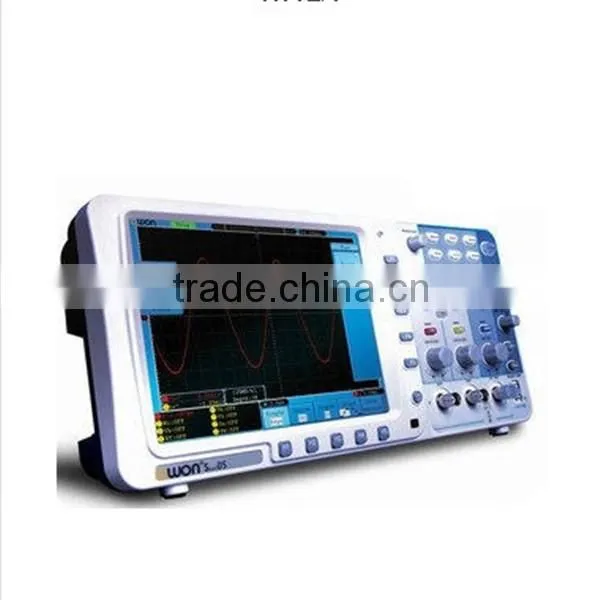

 SDS7102 digital storage oscilloscope
