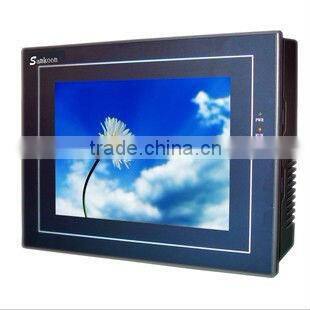

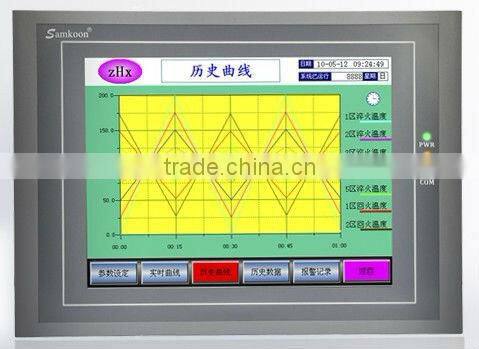

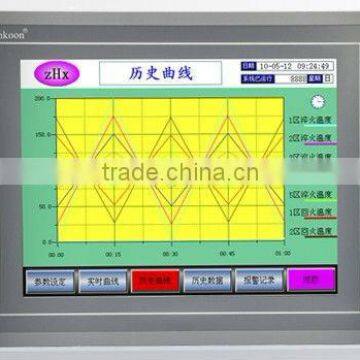

SA - 10.4 A The Man-machine Interface ;Touch Screen Controller;The Man-machine Interface ;man-machine Interface ;controller;

US$ 1 - 402 MOQ: 1 Set

Key Specifications

Business Type:

Trading Company

Year Established:

2005

Factory Size:

Below 1,000 square meters

Shenzhen Pantai Precise Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Specifications

model:SA-10.4A
Display space size:10.4 "(long: width = 4:3)
resolution:800 x 600
brightness:450 CD / aa
contrast:450:1

SA-10.4A Main technical parameters

The man-machine size: 10.4 inches

Long x width = 4 x3

Input voltage 24 v dc

Product synopsis:
Two hundred and sixty thousand color, two communication port COM (RS232, RS422, RS485) and a USB download mouth FCC

SA-12.1A Main technical parameters
Model	SA-10.4A
Display space size	10.4″(L:W=4:3)
Resolution	800*600
light intensity	500cd/mm
contrast	450:1
colour	262,144 color
backlight	LED
control panel	4 Line high precision resistance touch pad
communication port	COM 1(RS232,RS422,RS485) and COM 2(RS232,RS422,RS485)
USB download port USB Device	have
U disc port USB Host	No
ethernet port	No
SD	No
internal memory	128M FLASH + 128M SDRAM
CPU	32-bit 440MHz RISC
power supply	DC:24V(15%), 15W
power dissipation	8W
FCC compatibility	Fit FCC,Class A
Dielectric Withstand Voltage Test	1000V AC,1min.
CE attestation	Fit EN55022 and EN55024 standards
operating ambient temperature	-10-- +65°C
Working Relative Humidity	10~90%RH( No condensate )
shockproof	10-25Hz(X Y Z direction 2G/30 Min.)
level of protection	IP65 (Front panel)
canning material	engineering plastics ABS+PC
overall dimension	340×256×54(mm)
Install the size of holes	330×246(mm)
weight	About 2.05 Kg
configuration software	SamDraw3.3
