Help CenterDY-150TB Hydraulic Press Paver Block Machine Price / Concrete Earth Interlock Brick Making Machine
Related Products
-
DY-150TB Interlock Concrete Brick Making Machine, Concrete Brick MakerUS$ 7,549 - 8,149MOQ: 1 Set -
DY-150TB Concrete Brick Mould Machine China SupplierUS$ 4,949 - 9,799MOQ: 1 Set
-
DY-150TB Small Construction Equipment Paving Block MachineUS$ 4,949 - 9,799MOQ: 1 Set
-
DY-150TB Building Material Block Making MachineUS$ 4,949 - 9,799MOQ: 1 Set
-
DY-150TB Road Paver Building Block Molding MachineUS$ 4,949 - 9,799MOQ: 1 Set
Specifications
1.Paving block and crubing brick maker2..Low price, high quality
3.Hydraulic pressure
4.Without pallet
5.Siemens/ABB motor
DY-150TB concrete earth interlock brick making machine
1 Have passed ISO9001 and CE.
2 easy to learn and operation.
3 low maintenance.
4 pavers high density
5 special design paver machine form
6Hydraulic cement paver making machine
Main parameters:
Max pressure |
150KN |
Total power |
14kw |
production |
1500-2000 blocks/day |
Machine weight |
1500kg |
Machine size |
2390x2390x2550mm |
Maximum specification |
500x500x150mm |
Theoretical workshop area is 200m2. Office,curing area and stacking area need to be arranged according to your condition. About two workers are needed. | |
DY150TB, through mould and by application of flyash and other industrial waste,can produce color cart road bricks, lawn bricks, cavity bricks, perforated cellular brick, kerbing bricks, tree well bricks and water conservancy revetment bricks, which are widely used in the construction of municipal works, buildings, gardens.
Spareparts:
1. Mixer:
Maim Technical Specifications | |
Discharging capacity |
0.35 m3 |
Feeding capacity |
0.56 m3 |
Productivity |
≥4m3/h |
Max. aggregates diameter |
80mm |
Mixer power |
7.5 KW |
Diameter |
1200mm |
Wegiht |
0.52T |
2. Machine host:
3. Hydraulic station:

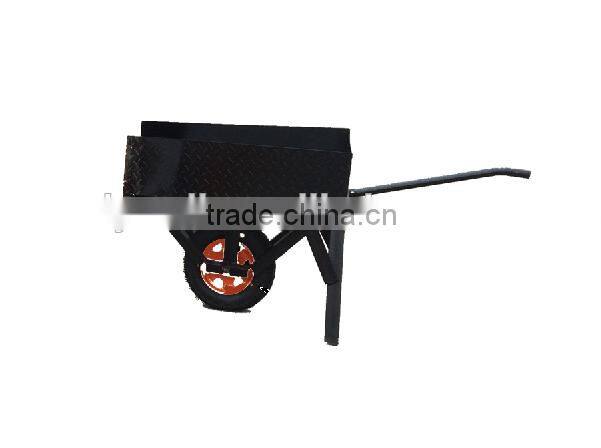

4.trolley

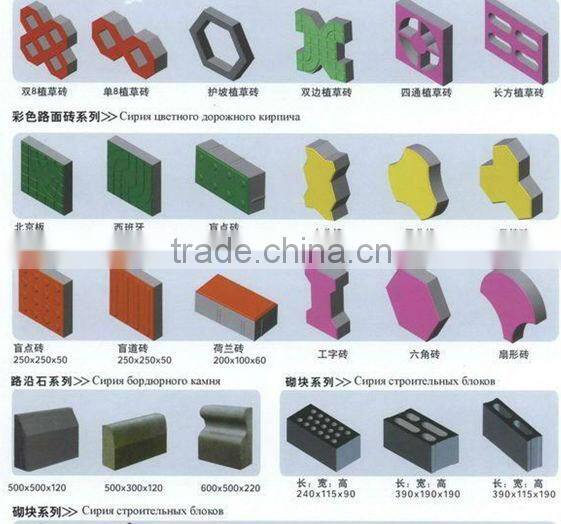

Bloock samples
Our Company
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.
If you are interested in any type of our products, please be free to contact us, we will be happy to help you!
