Help CenterQT6-15B Full-Auto Hydraulic Cement Pavement Brick Forming Machine Cement Block Moulding Machine
Related Products
-
DY-150T Ecomaquinas Brick Making Machine Sancidalo Block MachineUS$ 5,000 - 9,000MOQ: 1 Set -
DY-150T Building Material Paver Block Making Machine Curbstone Price Block Machine SancidaloUS$ 5,000 - 9,000MOQ: 1 Set
-
DY-150T Pavement Block Machinery Curbstone Price Block Making Machine SancidaloUS$ 5,000 - 9,000MOQ: 1 Set
-
DY-150TB Hydraulic Forming Machine/baking Free Brick Machine Sancidalo Block MachineUS$ 5,000 - 9,000MOQ: 1 Set
-
DY-150T Pavement Block Machinery for Sidewalk Use Sancidalo Brick MachineUS$ 5,000 - 9,000MOQ: 1 Set
Specifications
1.hollow/solid/paving/kerbstone block
2.German technology, Siemens motor
3.CE/SGS/ISO9001
4.PLC automatic control system
QT6-15B Best Quality Hydraulic Automatic Concrete Brick Machinery Automatic Cement Brick Making Machine
1.It is equipped with touch screen and Japan Mitsubishi PLC control system, making the whole process of mixing,
material loading, pressing run fluently and intelligently. It can produce 10 hollow bricks per mould and 54 standard brick per mould.
2.High level steel, special welding technology and Siemens or Schneider motor make a perfect and stable machine performance
3. The way of four rods guiding and long guiding sleeve guarantees precise mould movement.
4.There are two types of stacker for client’s choice
5.It can not only produce concrete block but also fly ash, waste of coal and mine, etc. different mould can also produce hollow or solid bricks for different use.
6.As an efficient, economical, and practical brick molding machine, it is rational in structure, and can speed up the molding process through vibration.
QT6-15B hollow block machine Main advantages
(1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks, and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure
Screw Conveyer (Optional fitment): loading bins of the instrument for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.
Batching Plant: It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. Then conveyer belt carried materials to the Mixture Machine.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. Mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mixer automatically, as per requirement.
Block mold machine: This is key of the production line. It can press the mixed material. So it can make various hollow block, solid brick, paver brick and kerbstone.
Stacker: Stacker is used to lay the block automatically, which is high-efficient and labor saving.
It can produce all kinds of hollow blocks and solid bricks and color paving bricks,only by changing different moulds.
Technical Parameter
Host machine size |
3500*1700*2930mm |
power |
38.65KW |
Moulding area |
800x600mm |
Vibration force |
45KN |
Mould period |
15-25S |
Mixer model |
JS500 |
Pallet size |
940x830x20/25mm
|
Water consumption |
12T/day |
weight |
11.5T |
Project area |
300 m2 |
Theoretical Production Capacity
Size (LxWxH)(mm) |
piece/mould |
piece/hour |
piece/8 hrs |
400x100x200 |
12 |
2160-2520 |
17280-20160 |
400x150x200 |
8 |
1440-1920 |
11520-15360 |
400x200x200 |
6 |
1080-1260 |
8640-10080 |
400x250x200 |
4 |
720-840 |
5760-6720 |
230x110x70 |
30 |
5400-6300 |
43200-50400 |
Paver:200x100x60 |
24 |
4320 |
34560 |
Paver:200x163x60 |
9 |
1620 |
12960 |

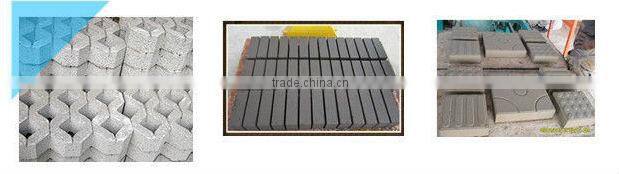

block samples
Raw materials
Packaging
company informtion
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.
