Home > Products > uv screen printer > Flat UV drying Machine TM-900UVF UV Curing Machine uv curing oven for UV ink
Flat UV drying Machine TM-900UVF UV Curing Machine uv curing oven for UV ink
- 50 Set / Sets per Month
- SHENZHEN CHINA
- T/T Credit Card
Product Details
Condition: | New | Type: | Drying Oven | Place of Origin: | Guangdong, China |
Brand Name: | LC | Model Number: | TM-900UVF | Voltage: | AC380V |
Power(W): | 13KW | Dimension(L*W*H): | 3020*950*1450 mm | Weight: | 380KG |
Certification: | CE | Warranty: | LIFE TIME GUARANTEE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

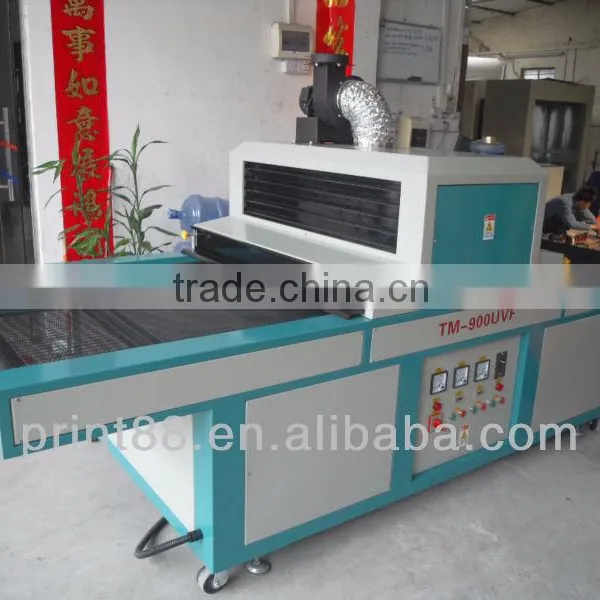

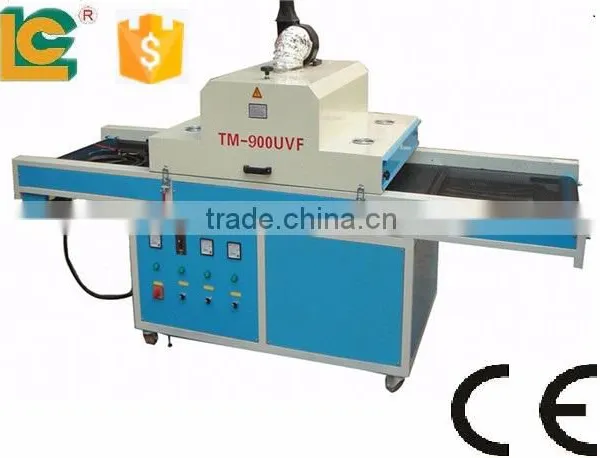

Flat UV drying Machine TM-900UVF UV Curing Machine uv curing oven for UV ink
Plane UV drying ovens TM-900UVF
Product Description
Our UV drying ovens be fit to UV drying ,PVC UV Coating ,paper offest UV Printing ,PET sheet UV polishing , soft PCB after printing UV ink , , plastic UV printing. electronic product UV spilicing, paper UV pritning, packing products UV drying . Our UV LAMP is high UV frequency.( 360-720HZ). It to fit amost UV INK ,UV glue. Our UV Lamp useful time can sure 1000-1200 hour. TM speed change. Belt runing speed is 0-10M/min.
Specifications :
1. Model NO. TM-900UVF
2. UV Drying products:900*100*3000mm
3. Conveyor belt size:L3000* W900MM
4. UV Lamp power:2PCS*5.6KW /380V
5. Total wattage:13KW
6. Wind fan wattage: 500W/380V
7. motor wattage:1000W/1P/380V
8. Conveyor speed:0~10m/min
9. Speed change ways:Continue
10. UV Machine Dimension:L*W*H3020*950*1450
11. Weight:380kg
Model number | TM-500UVF | TM-600UVF | TM-700UVF | TM-800UVF | TM-900UVF | TM-1200UVF |
max product width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
max product length | 2000mm | 2000mm | 2000mm | 3000mm | 3000mm | 3000mm |
UV Process shine area | 500*2000mm | 600×2000mm | 700×2000mm | 800*3000mm | 900*3000mm | 1200*3000mm |
conveyer speed: | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min |
UV Lamp power | 3KW ×2PCS/ | 3KW ×2 PCS/ | 3KW ×2 PCS | 5KW*2pcs | 5.6KW*2PCS | 5.6KW*2 PCS |
UV Machine Dimension: | 2020×550×1200mm | 2020*650*1200mm | 2020*750*1200mm | 3020*850*1200mm | 3020*950*1200mm | 3020*1250*1200mm |
Free Fitting :
TWO pcs UV lamp(5.6KW)
Testing Please provide:
1. 380V power supply.
2. 5-7 bar compress air.
Price Terms-- FOB PORT OF SHENZHEN CHINA
Payment Terms-- T/T
Packing-- WOODEN CASE
Lead Time-- 7 DAYS CONFIRM PAYMENT
SKU-- 2 SETS
Standards Certificate-- CE
Cubic Meter -- 3.9
Machines Fittings -- UV lamps
Gross Weight-- 380kg
Application area-- UV oven , uv drying ,uv curing ,uv coating
About us
1. One of three famous brand in China.our key products include , screen printer, hot stamping machine and UV curing machine.
2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.
3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.
