Specifications
UV lamp curing equipment1.Driven by well-known motor
2.stepless speed adjustment
3.be fit to UV printing drying

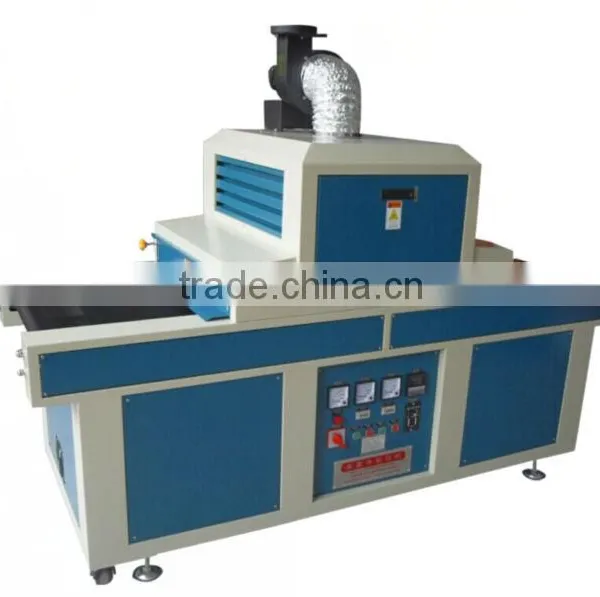

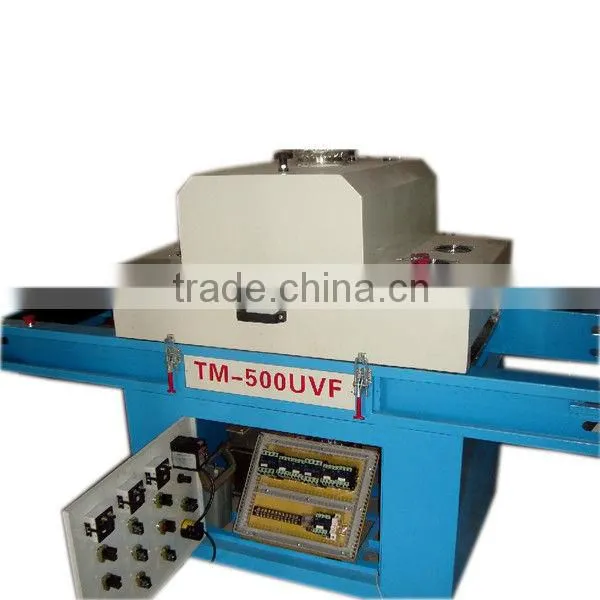

TM-500UVF UV lamp curing equipment
Our UV Curing Machine TM-500UVF be fit to UV drying , Paper UV PRITNING ,UV POLISHING , PVC,PET , PCB after printing UV printing, electronic product UV sparying , paper UV pritning, packing products UV drying .
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics
1. Model NO. TM-500UVF
2. UV Drying products:500*100*2000mm
3. Conveyor belt size:L2000* W500MM
4. UV Lamp power:2PCS*3KW /380V
5. Total wattage:7.5KW
6. Wind fan wattage: 500W/380V
7. motor wattage:1000W/1P/380V
8. Conveyor speed:0~10m/min
9. peed change ways:Continue
10.UV Machine Dimension:L*W*H2020*700*1350
11.weight:250kg
UV curing equipment
| Model number | TM-500UVF | TM-600UVF | TM-700UVF | TM-800UVF | TM-900UVF | TM-1200UVF |
| max product width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| max product length | 2000mm | 2000mm | 2000mm | 3000mm | 3000mm | 3000mm |
| UV Process shine area | 500*2000mm | 600*2000mm | 700*2000mm | 800*3000mm | 900*3000mm | 1200*3000mm |
| conveyer speed | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min |
| UV Lamp power | 3KW *2PCS/ | 3KW *2 PCS/ | 3KW *2 PCS/ | 5KW*2pcs | 5.6KW*2PCS | 5.6KW*2 PCS |
| UV Machine Dimension | 2020*550×*200mm | 2020*650*1200mm | 2020*750*1200mm | 3020*850*1200mm | 3020*950*1200mm | 3020*1250*1200mm |
Free Fitting :
TWO pcs UV lsmp(3KW)
Testing Please provide:
1. 380V power supply.
2. 5-7 bar compress air.
Price Terms --FOB or CFR
Payment Terms--- T/T or LC
Packing ----wooden crate
Lead Time ----7days after confirm Payment
SKU ----10 SETS
Standards Certificate ---CE
Cubic Meter---- 1.3
Gross Weight ---250KG
Main Parts-- 2 PCS UV lamps 3KW per pcs
Application area--UV PRINTER ,UV GLUE, UV DRYING ,UV CURING
UV curing equipment
all machine is packed in wood case,shipped by sea or air
