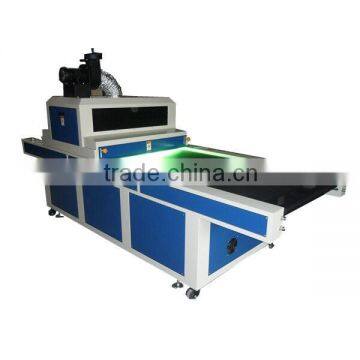

UV curing machine for varnish UV curing machine for paint UV curing machine for ink TM-500UVF

TM-500UVF UV Drying machine

Our UV Curing Machine TM-500UVF   be fit to  UV drying , Paper UV PRITNING  ,UV POLISHING , PVC,PET , PCB  after printing UV printing, electronic product UV sparying , paper UV pritning, packing products UV drying .
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

1. Model  NO. TM-500UVF
2. UV Drying  products:500*100*2000mm
3. Conveyor belt size:L2000* W500MM
4. UV Lamp power:2PCS*3KW /380V
5. Total wattage:7.5KW
6. Wind fan wattage: 500W/380V
7. motor wattage:1000W/1P/380V
8. Conveyor speed:0~10m/min
9. peed change ways:Continue
10.UV Machine  Dimension:L*W*H2020*700*1350
11.weight:250kg



 Free Fitting :

TWO pcs UV lsmp(3KW)

Testing Please provide:
1. 380V power supply.
2. 5-7 bar compress air.

Price Terms --FOB or CFR
Payment Terms--- T/T or LC
Packing ----wooden crate
Lead Time ----7days after confirm Payment
SKU ----10 SETS
Standards Certificate ---CE
Cubic Meter---- 1.3
Gross Weight ---250KG
Main Parts--  2 PCS UV lamps 3KW per pcs
Application area--UV PRINTER ,UV GLUE, UV DRYING ,UV CURING
