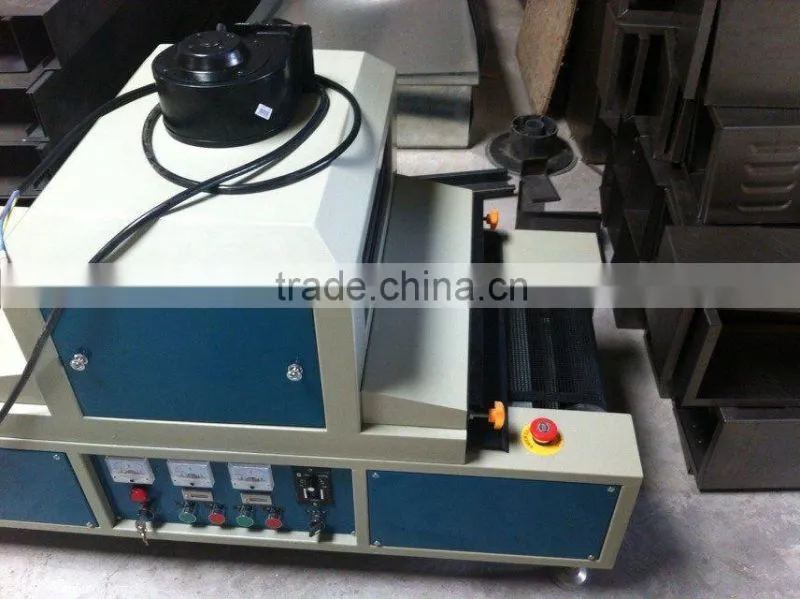

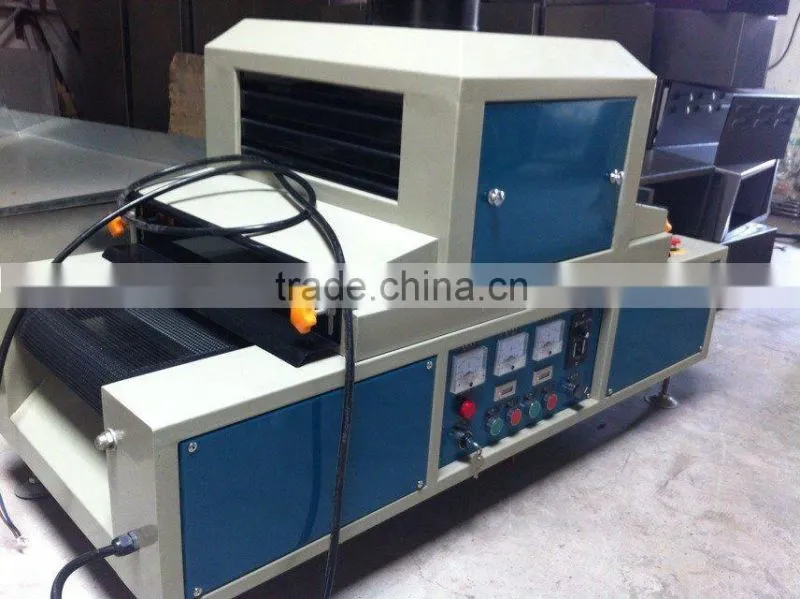

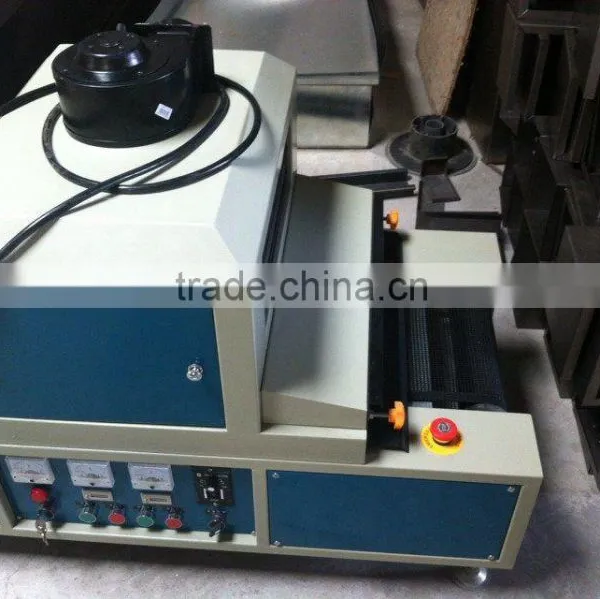

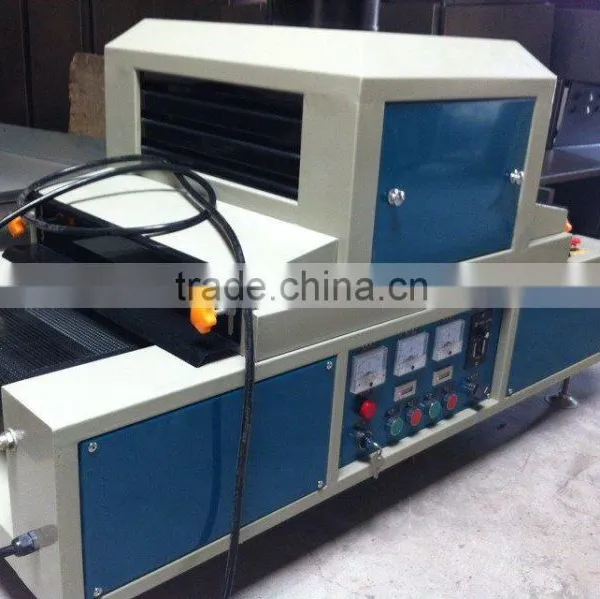

Desktop mini UV curing machine with conveyor for drying width 200mm TM-200UVF
TM-200UVF Desktop style screen printing conveyor dryer
it is small Volume and easy carrying .widely use for of field of drying printing UV ink ,UV paper printing ,UV glue ,UV tunnel drying ,UV PRINTEER,UV Packing , UV testing .favorable price and high quality .
1.Manipulation of the equipement is simple.
2.The product is developed as low output/low price.
3.Can select from separation type and conveyor type.
4.There is little space limitation since the size ia small.
Tech Parameter
1. Model NO. TM-200UVF
2. max product width: 200mm
3. max product length:800mm
4. UV Process shine area:200×800mm
5. conveyer speed: 0-12m/min
6.UV Lamp power:2KW *1 PCS/
7. conveyer belt size:800*200 (L*W)
8. UV light power supply: 220V/50 HZ
9.UV Machine Dimension: 810×430×850mm(L×W×H)
11.Net Weight:110kg
TM-200UVF Desktop style screen printing conveyor dryer
| Model number | TM-200UVF | TM-300UVF | TM-400UVF |
| style | Desktop | Desktop | Desktop |
| max product width | 200mm | 300mm | 400mm |
| max product length | 1000mm | 1200mm | 1200mm |
| UV Process shine area | 200×1000mm | 300×1200mm | 400×1200mm |
| conveyer speed: | 0-10m/min | 0-10m/min | 0-10m/min |
| UV Lamp power | 2KW ×1 PCS/ | 2KW ×2 PCS/ | 2KW ×2 PCS/ |
| conveyer belt size | 200×1000mm | 300×1200mm | 400×1200mm |
| UV Machine Dimension: | 1100×220×750mm | 1300×320×750mm | 1300×420×750mm |
| Net Weight | 110kg | 130kg | 165kg |
Free Fitting :
one pcs UV lsmp (2000W)
Price Terms --FOB or CFR
Payment Terms--- T/T or LC
Packing ----wooden crate
Lead Time ----5days after confirm Payment
SKU ----10 SETS
Standards Certificate ---CE
Cubic Meter---- 0.85
Gross Weight ---65KG
TM-200UVF Desktop style screen printing conveyor dryer
TM-200UVF Desktop style screen printing conveyor dryer
all machine is packed in wood case, shipped by sea or air.
About us
we are big manufacturer in China, with 25 years professional experience for pad printer, screen printer ,hot stamping machine, UV curing machine and heat transfer machine.
We are the gold member on Alibaba for 8 Years,we sell our printing machine to more than 119 countries, Including USA,UK,UAE,India,Iran ,New ZeaLand ,Egypt ,Italy , Algeria, Mexico ,Spain,etc.
Our service
1.All printing equipments had passed CE standard
2. Our main parts are imported. There are professional QA team and after- sale engineers team in our factory.
3.we have top after –sale service as below:
4.Our all printing machines can guarantee 1 year for free , and maintain is lifelong.
5.Also we’llprovide10% partsof the machines for free before delivery .
If there is damaged parts within guarantee period, we’ll post younew parts for free by air express.
